CONVENTIONAL BRAKE SYSTEM
P25
P
Disc Pad Installation Note
1. Turn the manual adjustment gear
counterclockwise with an Allen wrench to pull the
brake caliper piston inward. (Turn until it stops.)
2. Install the disc pads.
3. Turn the manual adjustment gear clockwise until
the brake pads just touch the disc plate. Turn the
manual adjustment gear back 1/3-turn.
End Of Si e

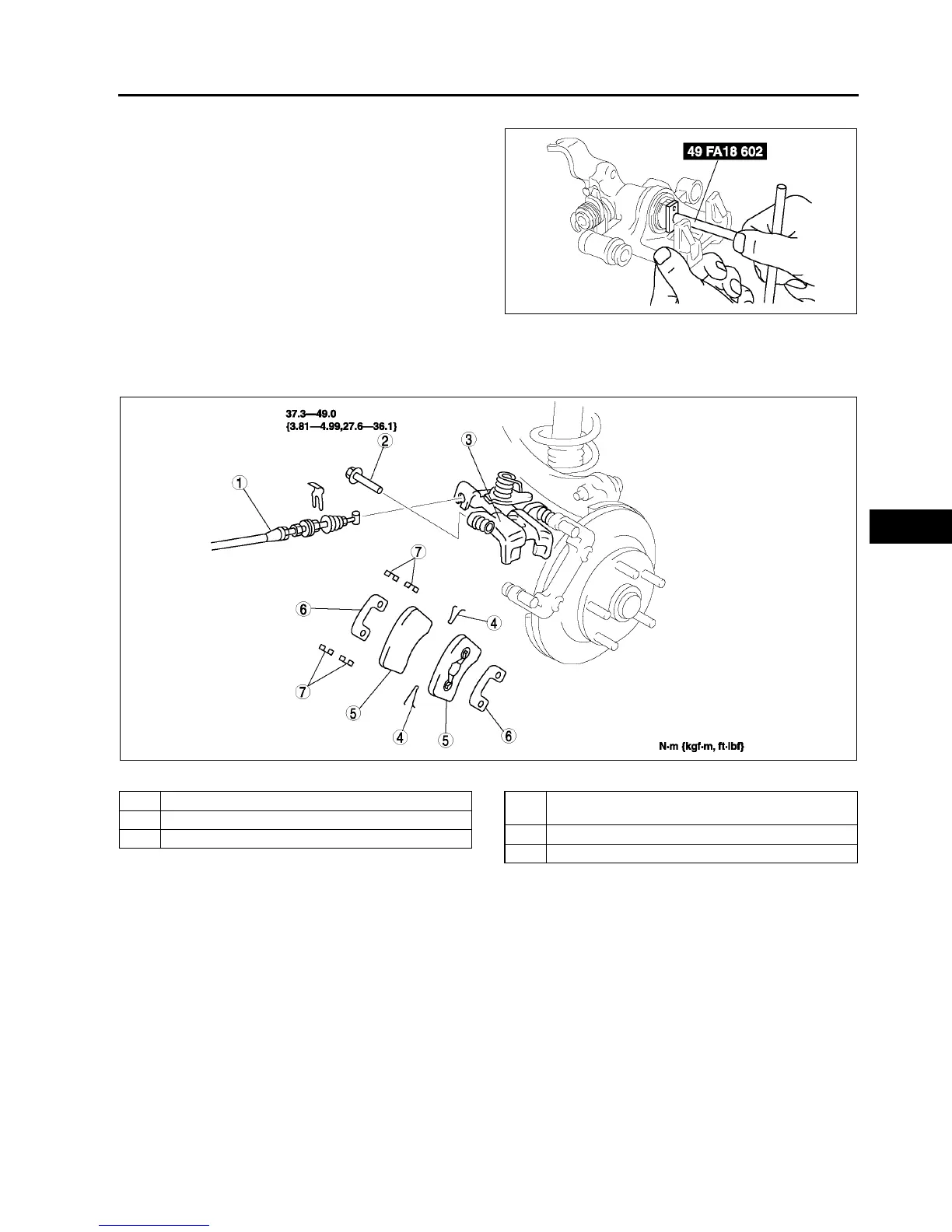

DISC PAD (REAR) REPLACEMENT
A6E691226630W01
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
.
End Of Si e
A6E6912W039
Z3U0411W009
1 Parking brake cable, clip
2Screw plug
3Lock bolt
4 Disc pad
(See P25 Disc Pad Installation Note)
5Shim
6 Guide plate
