B20
CYLINDER HEAD GASKET

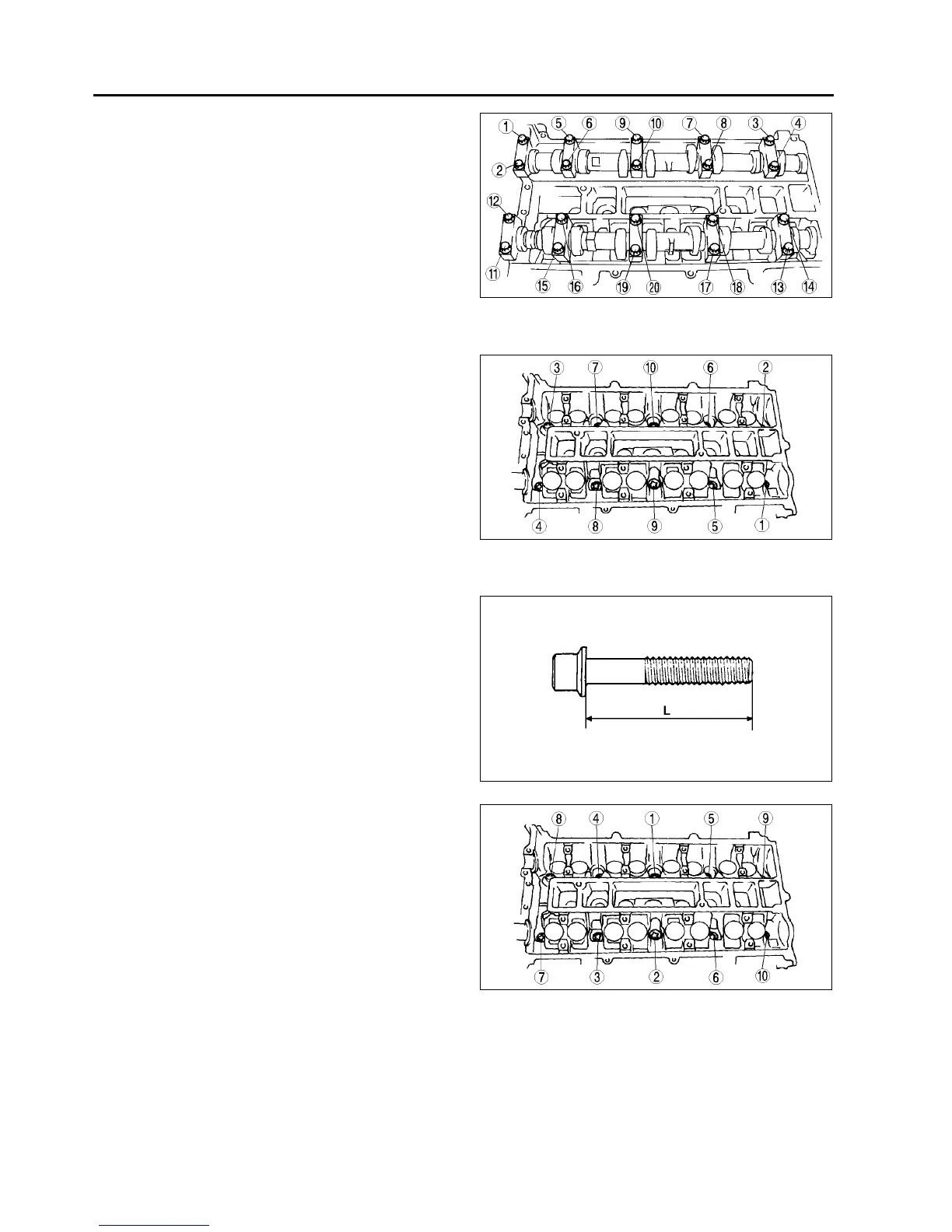

1. Loosen the camshaft cap bolts in several passes
in the order shown.
Cylinder Head Removal Note
1. Loosen the cylinder head bolts in several passes
in the order shown.
Cylinder Head Installation Note
1. Measure the length of each cylinder head bolt.
• Replace any that exceed maximum length.
Length L:
149.0150.0 mm {5.8675.905 in}
Maximum:
150.5 mm {5.965 in}
2. Tighten the cylinder head bolts in the order shown
using the following 5 steps.
(1) Tighten to 5.0 N·m {51.0 kgf·cm, 44.2 in·lbf}
(2) Tighten 1317 N·m {1.41.7 kgf·m, 10.0
12.5 ft·lbf}
(3) Tighten 4446 N·m {4.54.6 kgf·m, 32.5
33.9 ft·lbf}
(4) Tighten 88°
°°
°92°
°°
°
(5) Tighten 88°
°°
°92°
°°
°
