BONNET
S11
S

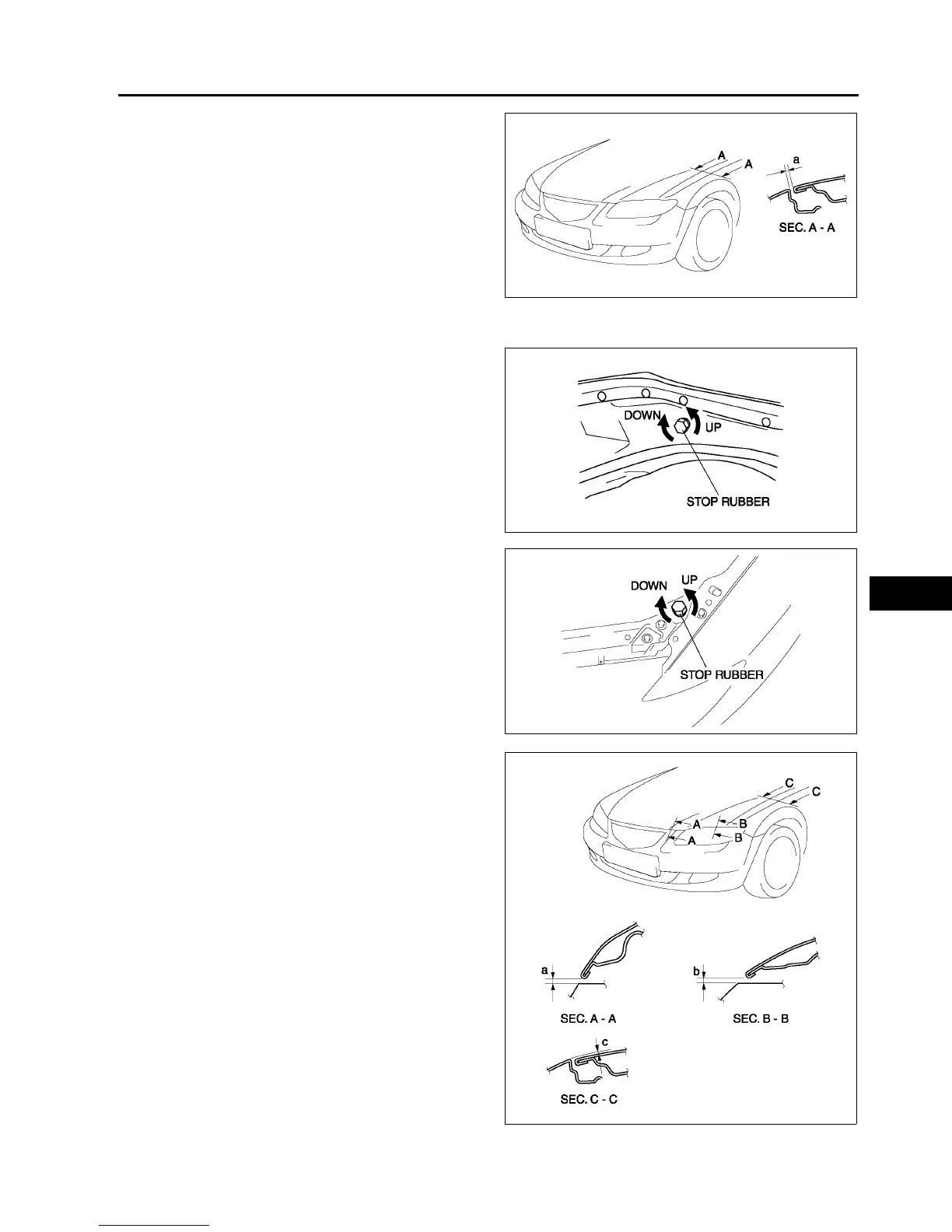

4. Verify that the gap between the bonnet and the
body is within the specification.
Clearance
a: 2.54.5 mm {0.080.17 in}
Height Adjustment
1. Turn the stop rubber to adjust the height of the
bonnet.
2. Verify that the height between the bonnet and the
body is within the specification.
Clearance
a: 3.06.0 mm {0.120.23 in}
b: 3.06.0 mm {0.120.23 in}
c: -1.01.0 mm {-0.040.04 in}
End Of Sie
A6E7710W004
A6E7710W006
A6E7710W003
A6E7710W005
