LIFTGATE REMOVAL/INSTALLATION
A6E772262010W01
Warning
•
••
• Removing the stay damper without supporting the liftgate can be dangerous. The liftgate may fall
and injure you. Open the liftgate fully and support it before removing the stay damper.
1. Disconnect the negative battery cable.
2. Remove the liftgate lower upper trim.

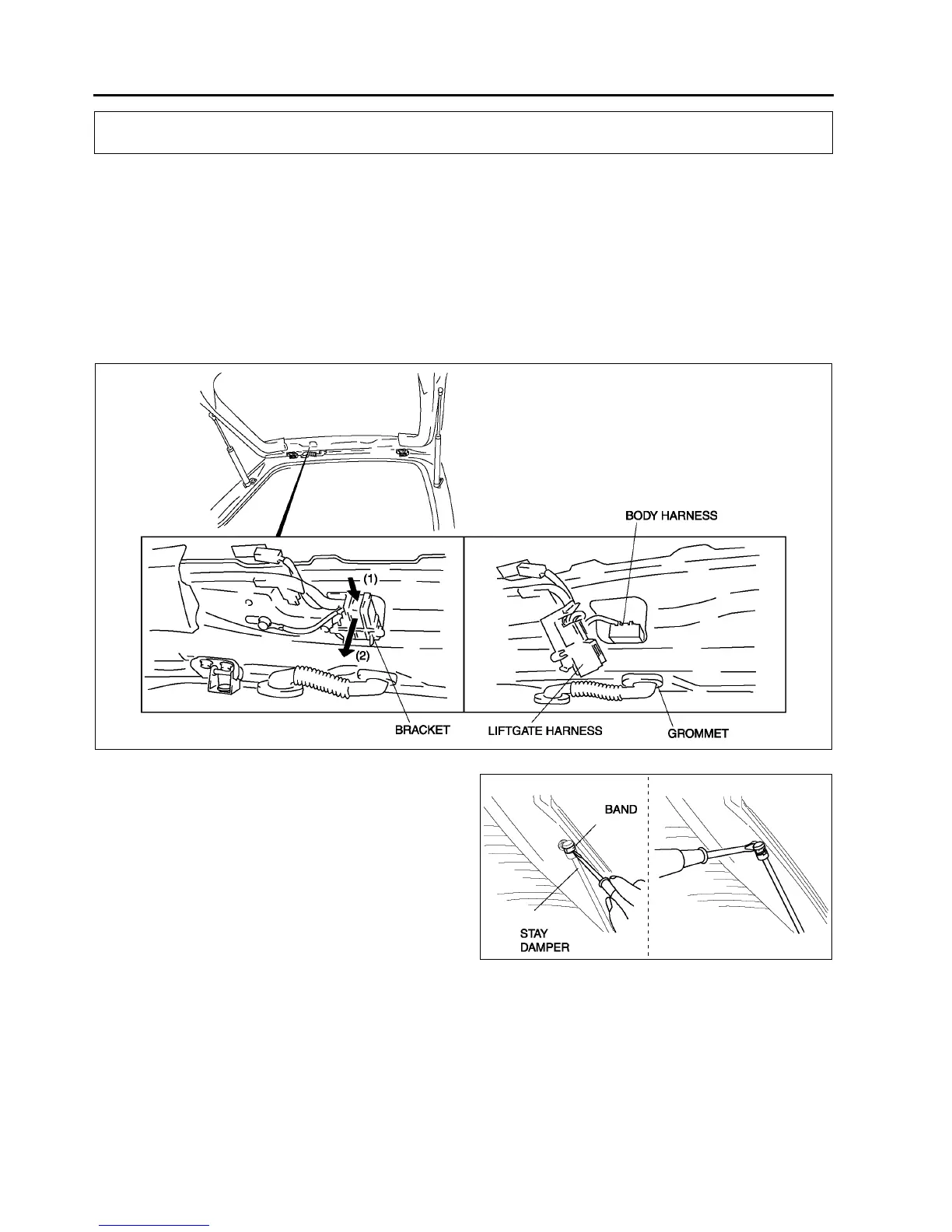

3. Press the liftgate harness connector's bracket, which is attached to the liftgate, to the (1) direction shown in the
figure, and then detach the fit. Then remove the connector toward the (2) direction shown in the figure.
4. Disconnect the vehicle harness connector and the liftgate connector. Then remove the grommet from the
liftgate.
5. Pry away the stay damper's band with a
screwdriver.
6. Pry out the connecting part of the stay damper
and the hinge with a screwdriver to disconnect
them. Then remove the stay damper.
7. Remove the bolts A, then remove the liftgate.
8. To remove the hinge, remove the headliner and
the nut.
LIFTGATE
A6E7722W003
A6E7722W005
