S72
WINDOW GLASS

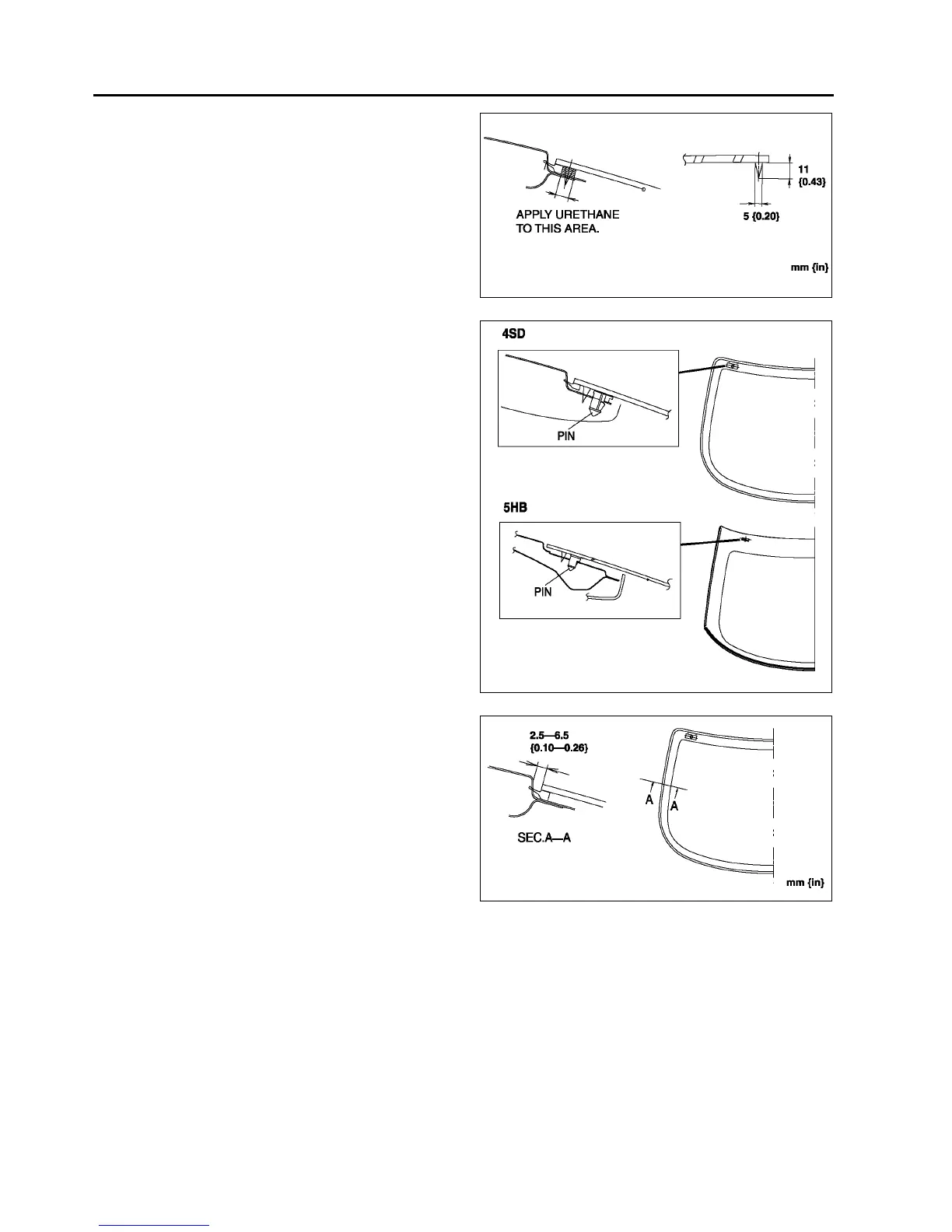

6. Apply urethane to the area of the glass surface as
shown in the figure.
7. Set the position of the front windshield glass and
insert a pin into the body. Install the glass.
8. Verify that the gap of the upper part is 7.3 mm
{0.29 in} and the A pillar part is 6.8 mm {0.27 in}.
(Only for 4SD)
A6E7738W020
A6E7738W018
A6E7738W016
