WIPER AND WASHER
T57
T
R.H.D.

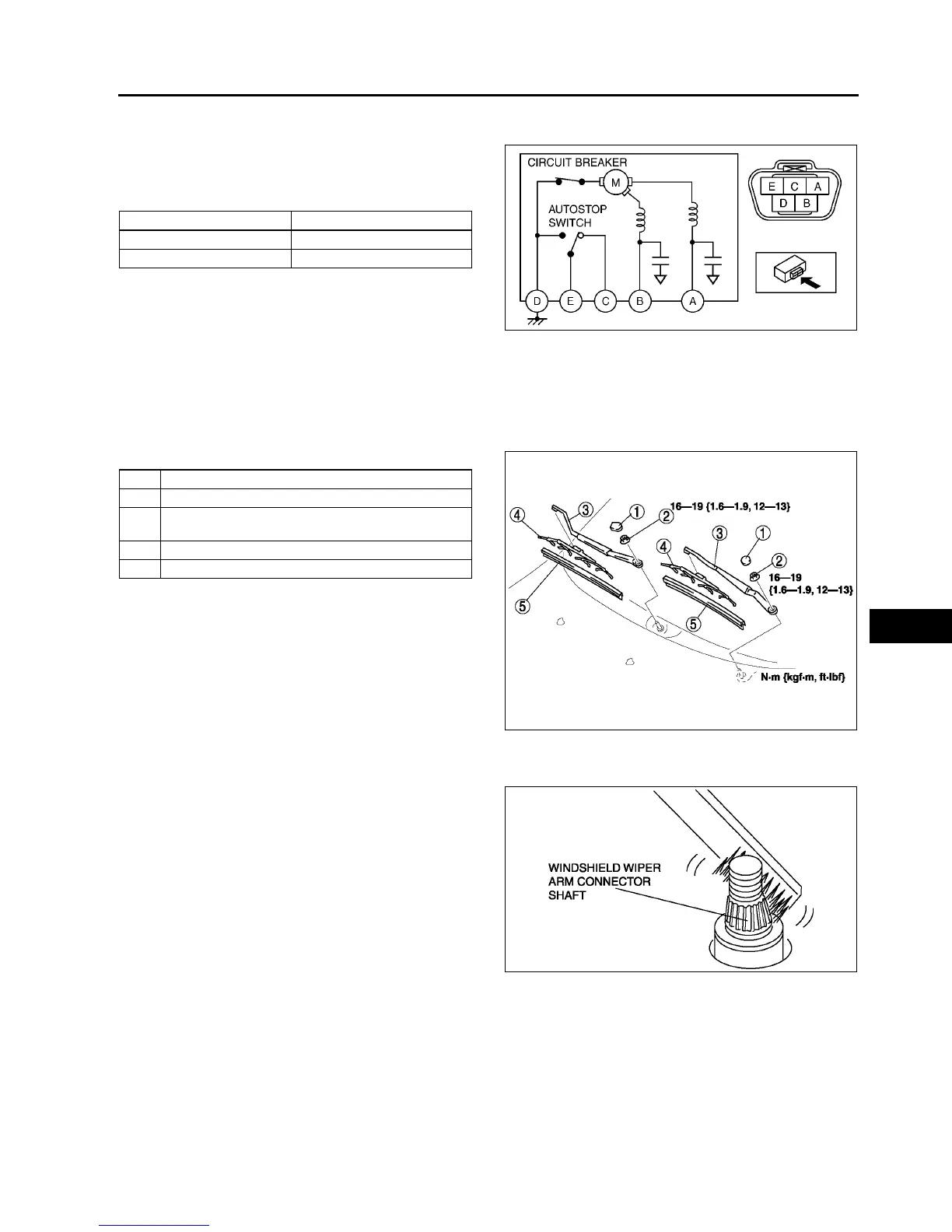

1. Disconnect the windshield wiper motor connector.
2. Connect battery positive voltage to terminal B or
A and ground to terminal D, and inspect the
operation of the windshield wiper motor as
indicated below.
3. Disconnect battery positive voltage from terminal
B of the motor while the wipers are operating.
4. Verify that the wipers do not stop in the park
position.
5. Short between the motor terminals E and A and
connect battery positive voltage to the motor terminal C.
6. Verify that the wipers operate at low speed again, then stop in the park position.
• If not as specified, replace the windshield wiper motor.
End Of Sie
WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION
A6E811667320W01
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Adjust the windshield wiper arm and blade. (See
T58 WINDSHIELD WIPER ARM AND BLADE
ADJUSTMENT.)
Windshield Wiper Arm Installation Note
1. Clean the windshield wiper arm connector shafts
using a wire brush before installing the windshield
wiper arms.
End Of Sie
Terminal Operation
BHigh
ALow
A6E8116W128
1Cap
2Nut
3 Windshield wiper arm (See T57 Windshield Wiper
Arm Installation Note)
4 Windshield wiper blade
5 Rubber brush
A6E8116W111
A6E8116W103
