AIR BAG SYSTEM
T135
T
Side air bag module

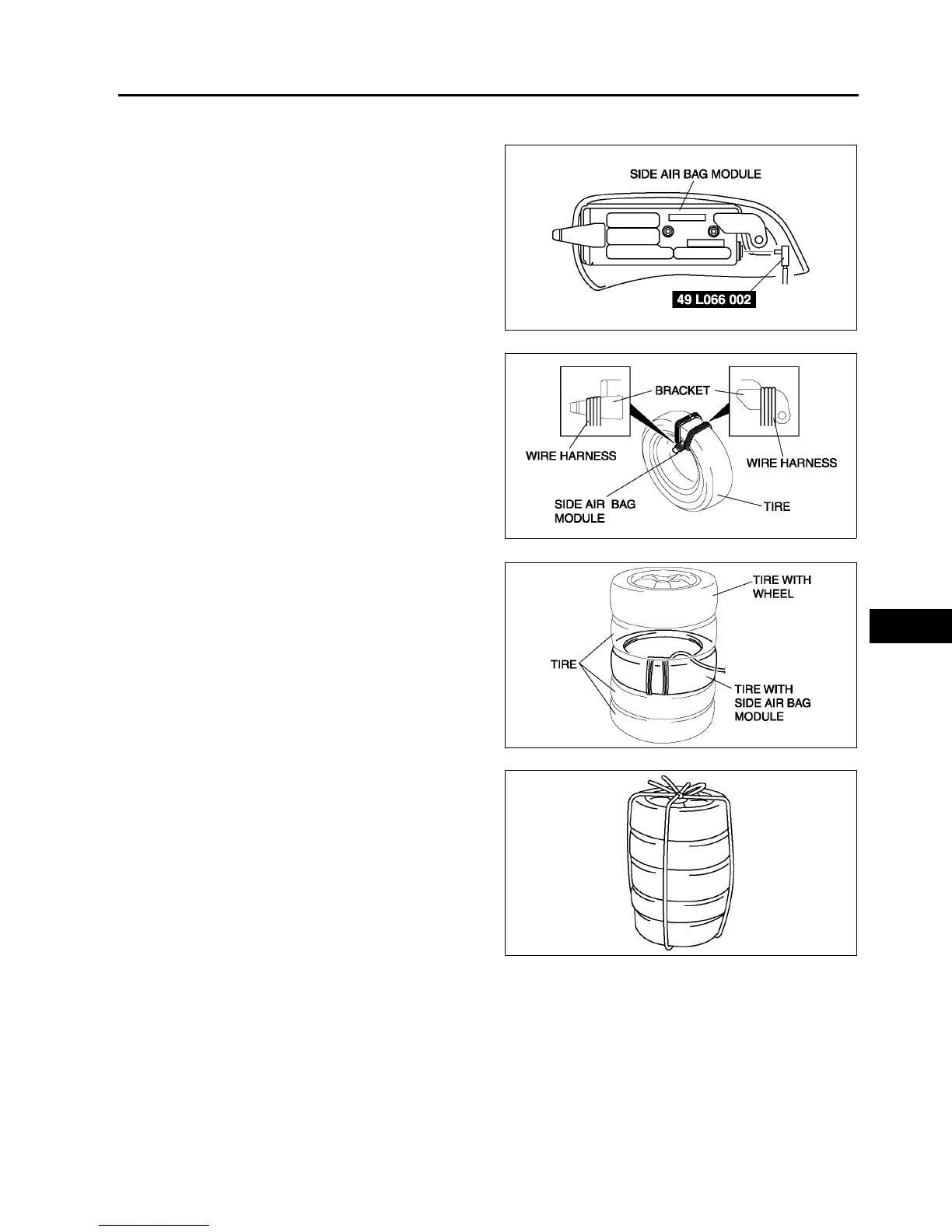

1. Remove the side air bag module. (See T121 SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
2. Connect the SST (Adapter harness) to the side
air bag module as shown in the figure.
3. Tie the side air bag module to the tire with the
module facing the center of the tire. Wrap the wire
harness through the tire and around the bracket
at least four times.
Warning
•
••
• If the air bag module is not properly
installed to the tire, serious injury may
occur when the module is deployed.
When installing the air bag module to the
tire, make sure the module is facing the
center of the tire.
4. Stack the tire with the side air bag module on top
of two tires. Stack a tire on top of three tires.
Stack another tire that has a wheel on top of the
four tires.
5. Tie all tires together with wire.
A6E8130W016
A6E8130W017
A6E8130W053
A6E8130W034
