FUEL SYSTEM
F1–25
F1

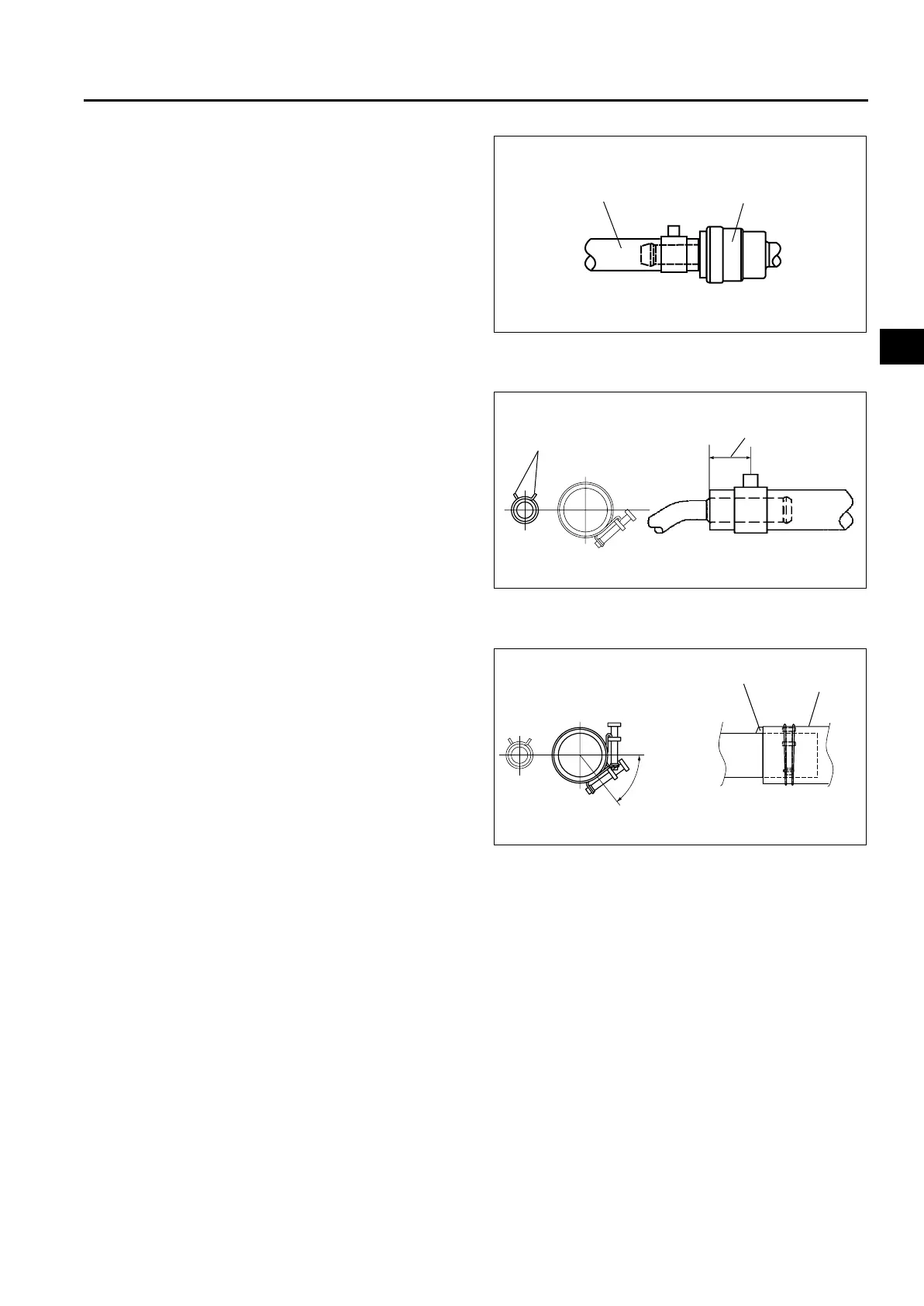

Evaporative Hose Installation Note
1. Fit the evaporative hose until it hits the check
valve as shown.
Breather Hose Installation Note
1. Fit the breather hose onto the respective fittings,
and install clamps as shown.
Joint Hose Installation Note
1. Fit the joint hose onto the respective fittings, and
install clamps as shown.
End Of Sie
EVAPORATIVE HOSE
CHECK VALVE
A6E39122006
10 {0.39}
mm {in}
UPPER SIDE
VIEW FROM A
A6E39122004
VIEW FROM A
APPROX. 45 °
STOPPER
JOINT HOSE
A6E39122005
To Next Page
