F2–30
LOCATION INDEX
Fuel tank side
.
End Of Sie
2
1
A6E40002004

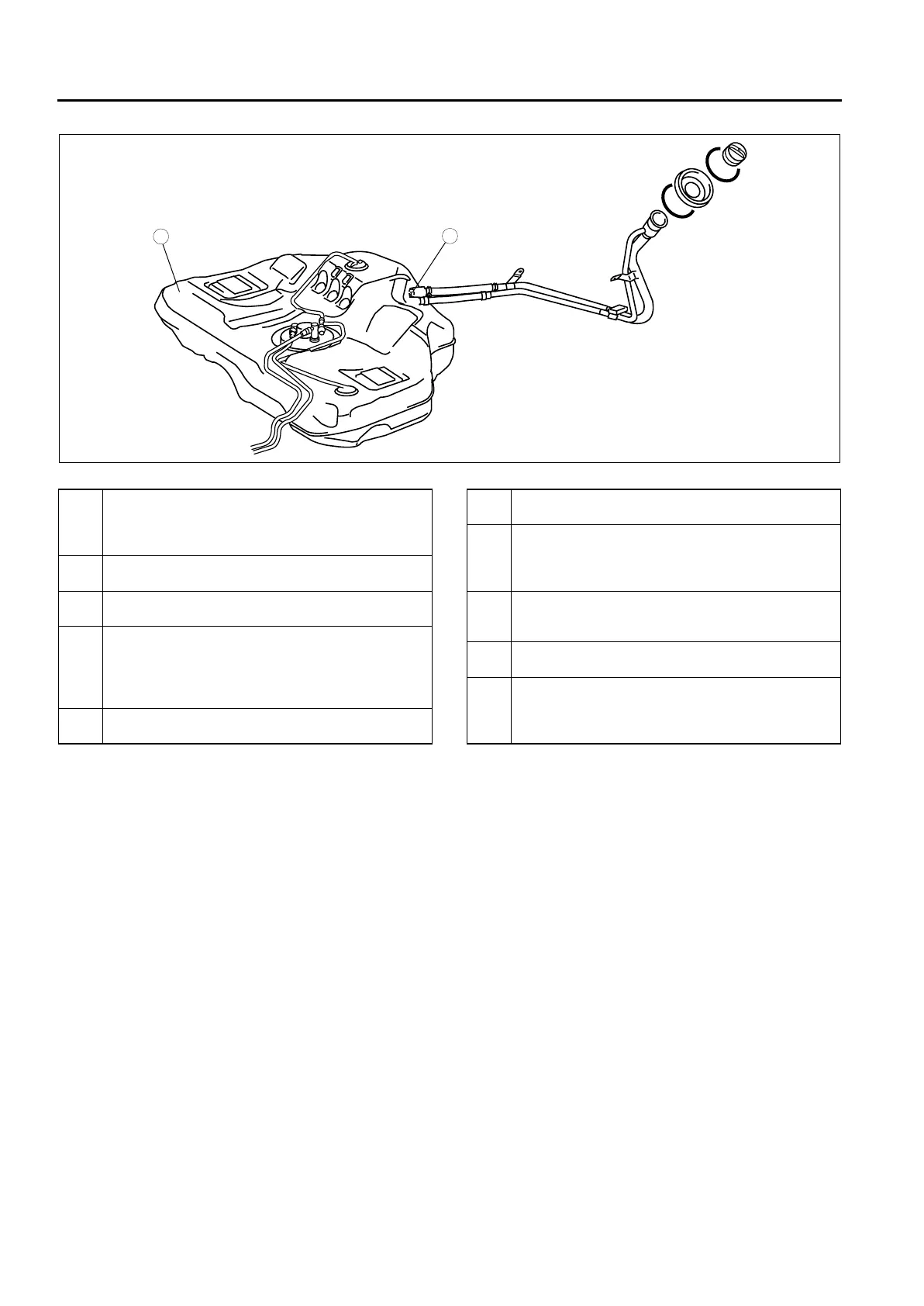

1 Fuel tank
(See F2–45 FUEL TANK REMOVAL/
INSTALLATION)
(See F2–49 FUEL TANK INSPECTION)
2 Nonreturn valve
(See F2–50 NONRETURN VALVE INSPECTION)
3 Sedimentor switch
(See F2–52 SEDIMENTOR SWITCH INSPECTION)
4 Fuel filter
(See F2–50 FUEL FILTER COMPONENT
REMOVAL/INSTALLATION)
(See F2–51 FUEL FILTER COMPONENT
DISASSEMBLY/ASSEMBLY)
5 Fuel warmer
(See F2–51 FUEL WARMER INSPECTION)
6 Priming pump
(See F2–52 SEDIMENTOR WATER DRAINING)
7 Supply pump
(See F2–53 SUPPLY PUMP REMOVAL/
INSTALLATION)
(See F2–54 SUPPLY PUMP INSPECTION)
8 Suction control valve
(See F2–54 SUCTION CONTROL VALVE
INSPECTION)
9 Common rail
(See F2–54 COMMON RAIL INSPECTION)
10 Fuel injector
(See F2–55 FUEL INJECTOR REMOVAL/
INSTALLATION)
(See F2–56 FUEL INJECTOR INSPECTION)
