B1–8
ENGINE

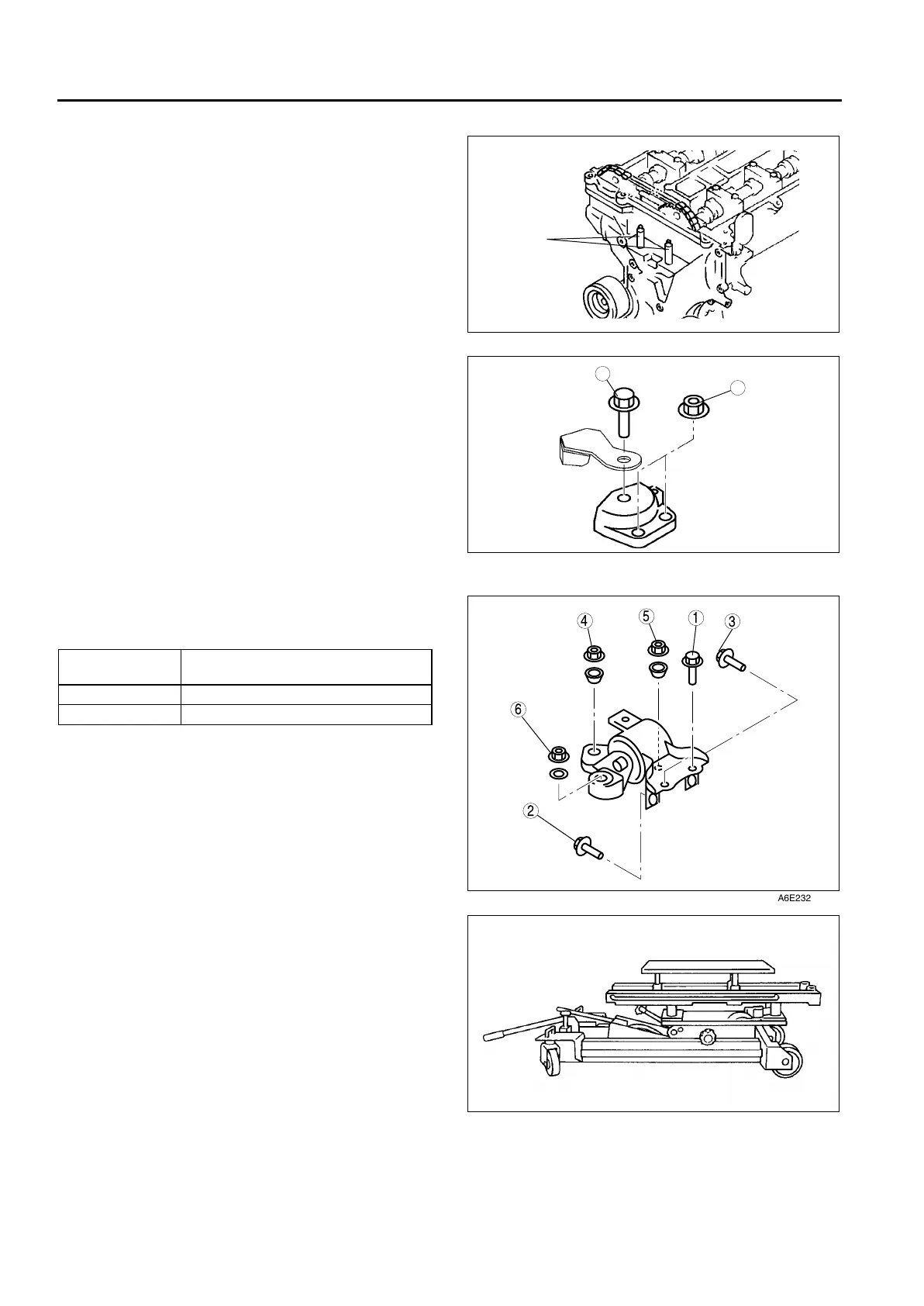

No.3 Engine Joint Bracket Installation Note
1. Tighten the No.3 engine mount bracket stud bolt.
Tightening torque
7.0—13 N·m {71.4—132.5 kgf·cm, 62.0—115.0
in·lbf}
2. Tighten the No.3 engine joint bracket bolt and nut
in the order as shown.
Tightening torque
74.5—104.9 N·m {7.6—10.6 kgf·m, 55.0—76.6
ft·lbf}
No.4 Engine Mount Bracket and No.4 Engine Mount Rubber Installation Note
1. Tighten the No.4 engine mount bracket and No.4
engine mount rubber bolt and nut in the order as
shown.
2. Secure the engine and the transaxle using an
engine jack and attachment as shown.
No.3
ENGINE
MOUNT
BRACKET
STUD
BOLT
A6E2215W011
1
2
A6E2316W111
Bolt or nut No.
Tightening torque
(N·m {kgf·m, ft·lbf})
1, 2, 3 58.8—80.4 {6.0—8.1, 43.3—58.5}
4, 5, 6 66.6—93.1 {6.8—9.4, 49.2—67.9}
5
4
3
1
2
6
A6E2324W206
A6E2324W209
