B2–10

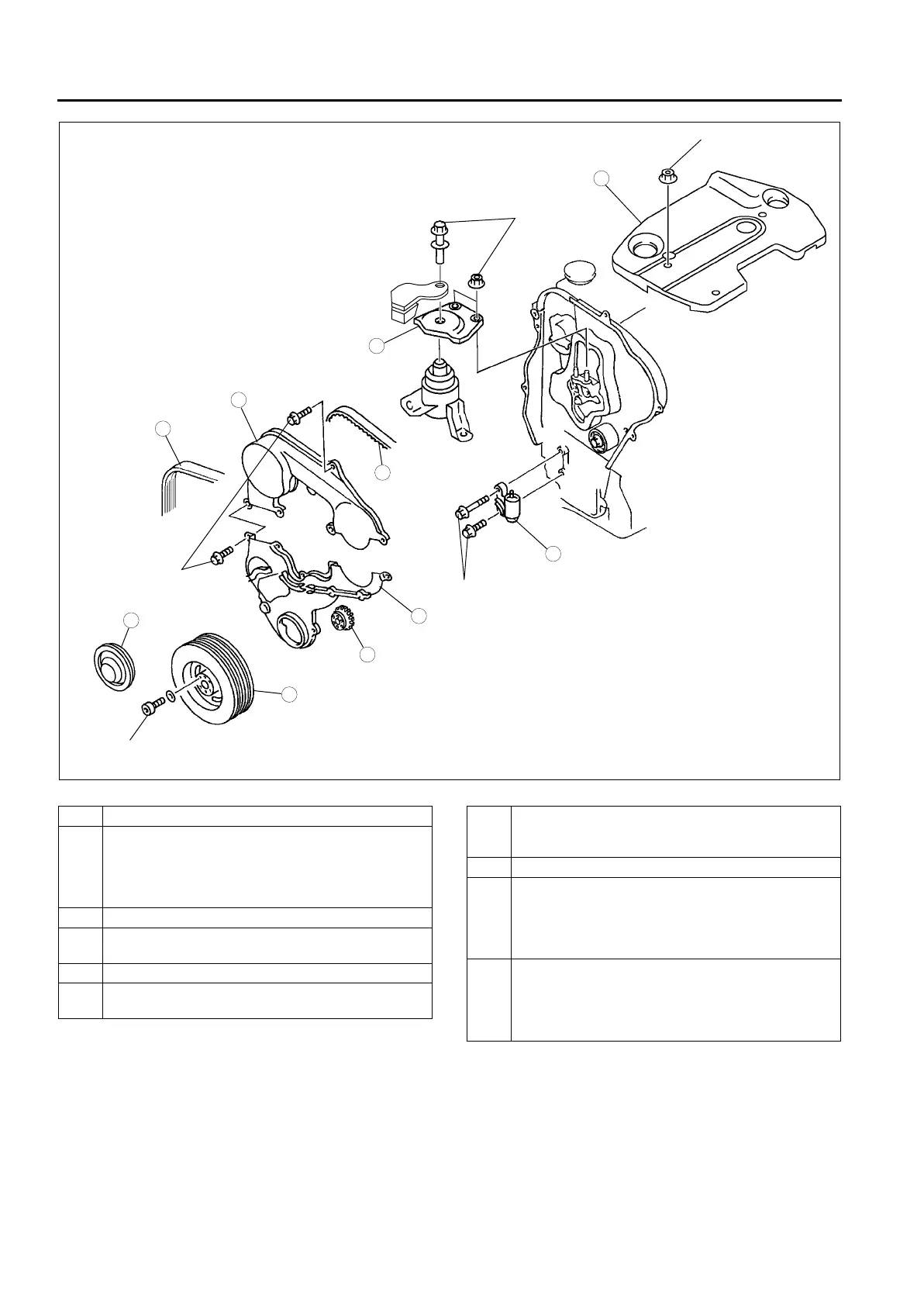

TIMING BELT
.
N·m {kgf·m, ft·lbf}
7.6—10.8 N·m
{80—110 kgf·cm,
69.1—95.5 in·lbf}
7.9—10.7 N·m
{80—110 kgf·cm,
69.5—95.4 in·lbf}
23—32
{2.3—3.3, 17—23}
19—25
{1.9—2.6, 14—18}
74.5—104.9
{7.6—10.6,
55.0—76.6}
9
8
7
5
4
3
1
2
10
6
A6E2316W100
1 Engine cover
2 No.3 engine joint bracket
(See B2–11 No.3 Engine Joint Bracket Removal
Note)
(See B2–14 No.3 Engine Joint Bracket Installation
Note)
3 Upper timing belt cover
4Drive belt
(See B2–4 DRIVE BELT REPLACEMENT)
5 Crankshaft pulley cover
6 Crankshaft pulley
(See B2–14 Crankshaft Pulley Installation Note)
7 Lower timing belt cover
(See B2–11 Lower Timing Belt Cover Removal
Note)
8 Guide plate
9 Timing belt
(See B2–11 Timing Belt, Timing Belt Auto Tensioner
Removal Note)
(See B2–12 Timing Belt, Timing Belt Auto Tensioner
Installation Note)
10 Timing belt auto tensioner
(See B2–11 Timing Belt, Timing Belt Auto Tensioner
Removal Note)
(See B2–12 Timing Belt, Timing Belt Auto Tensioner
Installation Note)
