FRONT DRIVE SHAFT
FRONT DRIVE SHAFT (MZR-CD (RF TURBO)) DISASSEMBLY/ASSEMBLY
A6E631525500201

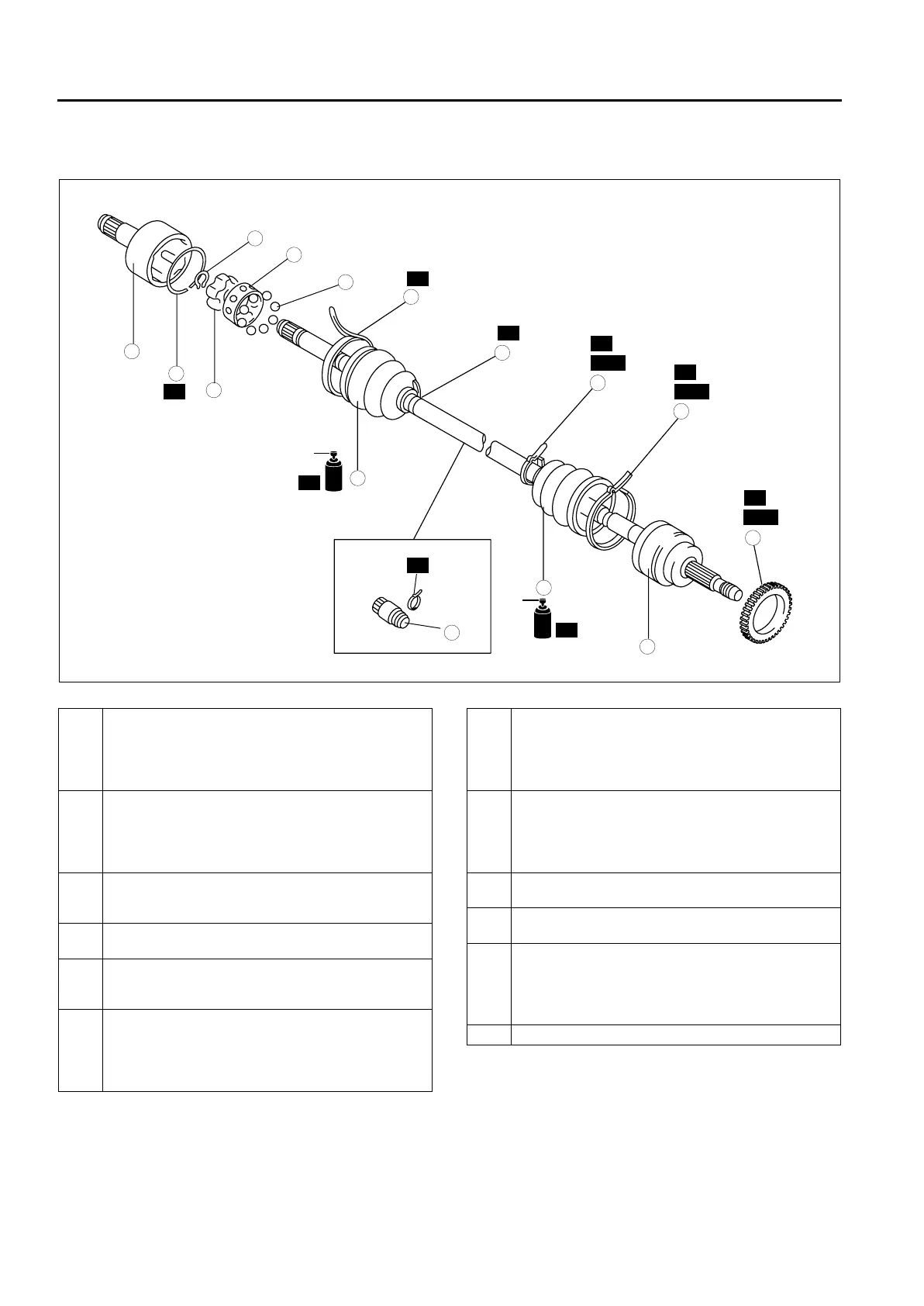

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
.
9
9
8
7
5
4
3
10
11
6
1
1
2
2
12
SST
R
R
SST
R
SST
R
R
R
R
R
R
GREASE
GREASE
GREASE
GREASE
A6E6316W009
1 Boot band (wheel side)
(See M–35 Boot Band (Wheel Side) Disassembly
Note)
(See M–38 Boot Band (Wheel Side) Assembly
Note)
2 Boot band (transaxle side)
(See M–35 Boot Band (Transaxle Side)
Disassembly Note)
(See M–38 Boot Band (Transaxle Side) Assembly
Note)
3 Clip
(See M–35 Clip Disassembly Note)
(See M–37 Outer Ring, Clip Assembly Note)
4 Outer ring
(See M–37 Outer Ring, Clip Assembly Note)
5 Snap ring
(See M–37 Cage, Inner Ring, Balls, Snap Ring
Assembly Note)
6Balls
(See M–36 Balls, Inner Ring, Cage Disassembly
Note)
(See M–37 Cage, Inner Ring, Balls, Snap Ring
Assembly Note)
7 Inner Ring
(See M–36 Balls, Inner Ring, Cage Disassembly
Note)
(See M–37 Cage, Inner Ring, Balls, Snap Ring
Assembly Note)
8Cage
(See M–36 Balls, Inner Ring, Cage Disassembly
Note)
(See M–37 Cage, Inner Ring, Balls, Snap Ring
Assembly Note)
9Boot
(See M–37 Boot Assembly Note)
10 Dynamic damper
(See M–37 Dynamic Damper Assembly Note)
11 ABS sensor rotor
(See M–36 ABS Sensor Rotor (With ABS)
Disassembly Note)
(See M–36 ABS Sensor Rotor (With ABS) Assembly
Note)
12 Shaft and ball joint component
