FRONT DRIVE SHAFT
M–35
M

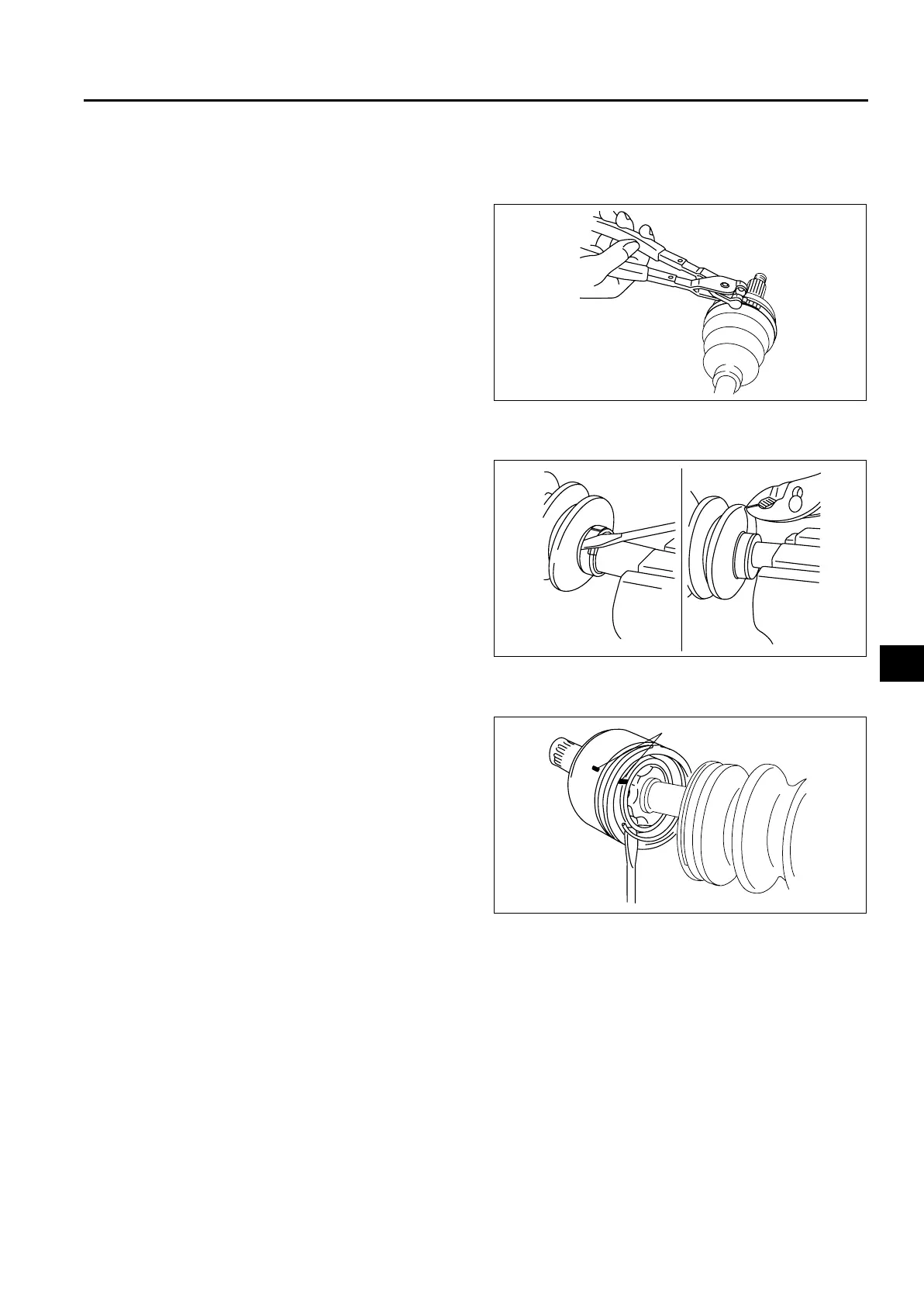

Boot Band (Wheel Side) Disassembly Note
Note
• The boot band does not need to be removed unless it is being replaced.
1. Remove the boot clamp with end clamp pliers as
shown and discard the clamp.
Boot Band (Transaxle Side) Disassembly Note
1. Pry up the locking clips using a screwdriver.
2. Pull back the end of the band.
Clip Disassembly Note
1. Mark the drive shaft and outer ring for proper
assembly.
Caution
• Mark with paint; do not use a punch.
2. Remove the clip.
A6E6316W004
A6E6316W005
MARK
A6E6316W010
