ELECTRONIC 4WD CONTROL SYSTEM
M–73
M

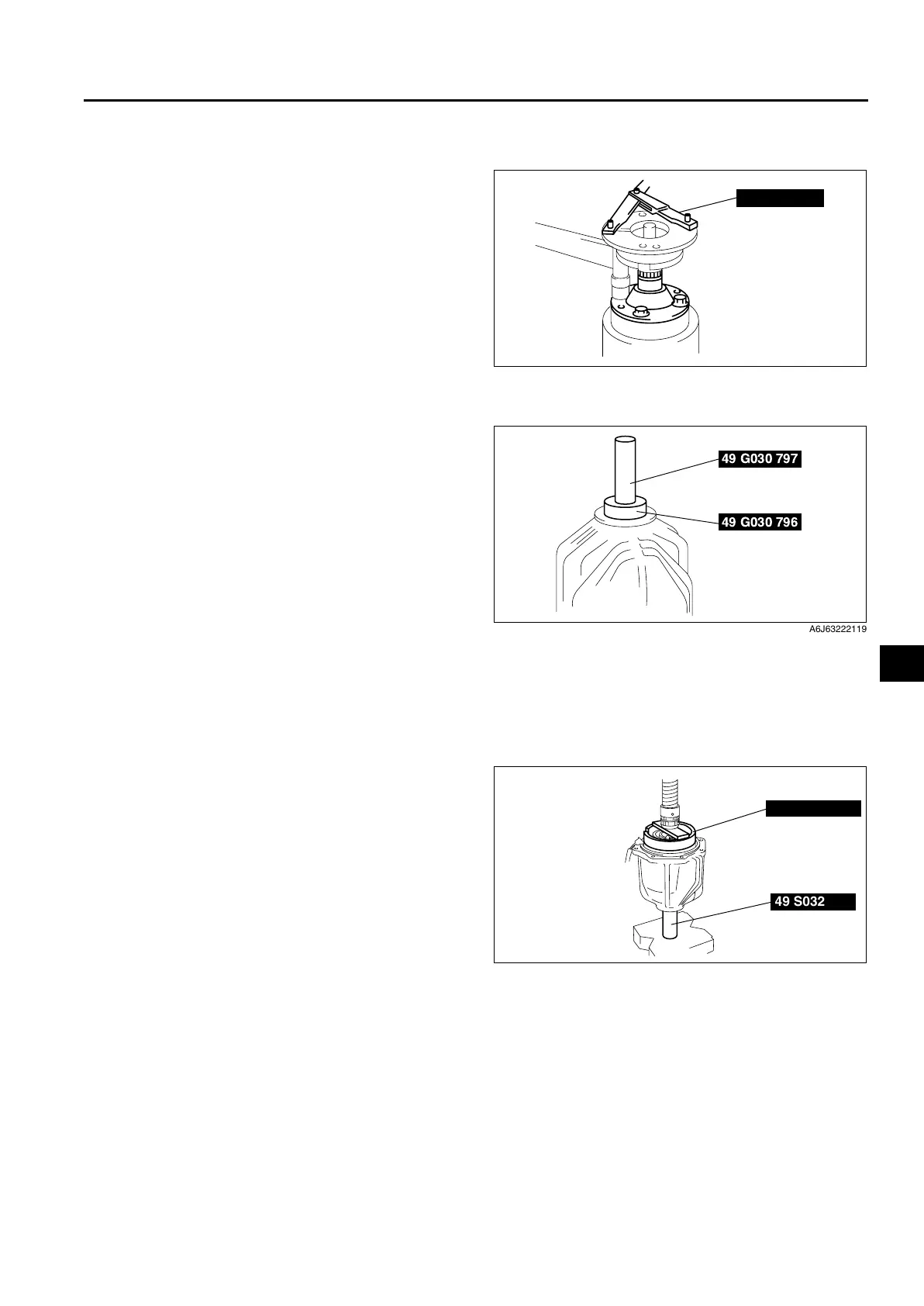

Output Shaft Assembly Note
1. Install the output shaft to the coupling unit and partially tighten the bolts.
2. Install the companion flange to the output shaft.
3. Secure the companion flange using the SST, and
tighten the bolts.
Tightening torque
36.3—53.9 N·m {3.7—5.4 kgf·m, 26.8—39.7
ft·lbf}
Bearing Assembly Note
1. Assemble the bearing to the coupling case using
the SSTs.
Coupling Case Assembly Note
Caution
• The coupling unit will be damaged if it is pressed directly by a press. Always press the coupling
unit into the coupling case using the SST.
1. Assemble the coupling unit to the coupling case
using the SSTs and a press.
49 S120 710
A6E63222118
49 G030 797
49 G030 796
A6J63222119
49 S032 333
49 W010 107A
A6J63222120
To Next Page
