OUTLINE, POWER SYSTEM
OUTLINE OF CONSTRUCTION
A6E810201088201
• The construction and operation of the body electrical system is essentially carried over from that of the current
Mazda6 (GG) model, except for the following features. (See Mazda6 Training Manual 3359-1*-02C)
End Of Sie
FEATURES
A6E810201088202
Improved Safety
• There are two types of high-mount brake lights. (WGN)
Improved Marketability
• A cargo compartment light has been adopted. (WGN)
• The installation positions of the rear wiper and washer components have been changed. (WGN)
• A fuel gauge sender sub-unit has been adopted. (4WD)
• A 4WD indicator light, glow indicator light and sedimentor warning light have been adopted.
• The installation positions of the condenser and the noise filter have been changed. (WGN)
• An antenna feeder has been adopted. (WGN)
• A rear auto leveling sensor especially for the 4WD has been adopted. (4WD)
Improved Security
• A rear intruder sensor has been adopted. (WGN)
End Of Sie
STRUCTURAL VIEW
A6E811067730201
.
End Of Sie
OUTLINE
POWER SYSTEM
2
1
A6E81101102

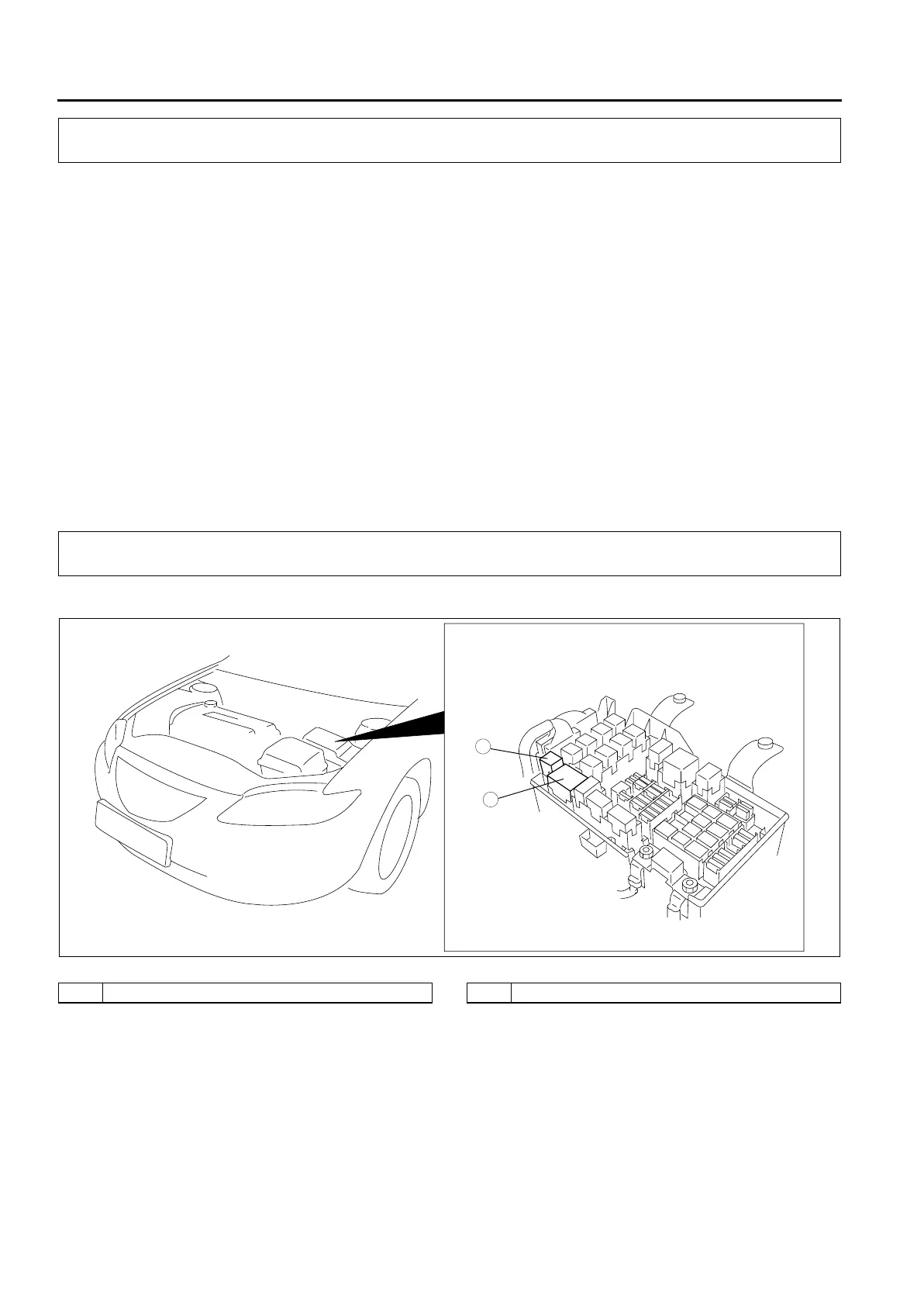

1 Seat warmer relay (with seat warmer) 2 Glow relay (MZR-CD (RF Turbo) only)
To Next Page
