U–10
BASIC SYSTEM
A/C UNIT REMOVAL/INSTALLATION
A6E851661130201
1. Disconnect the negative battery cable.
2. Discharge the refrigerant from the system.
3. Drain the engine coolant.
4. Remove the dashboard.
5. Remove the theft-deterrent control module.
Caution
• If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and
abnormal noise will occur. Always immediately plug open fittings after removing any refrigeration
cycle parts to keep moisture or foreign material out of the cycle.

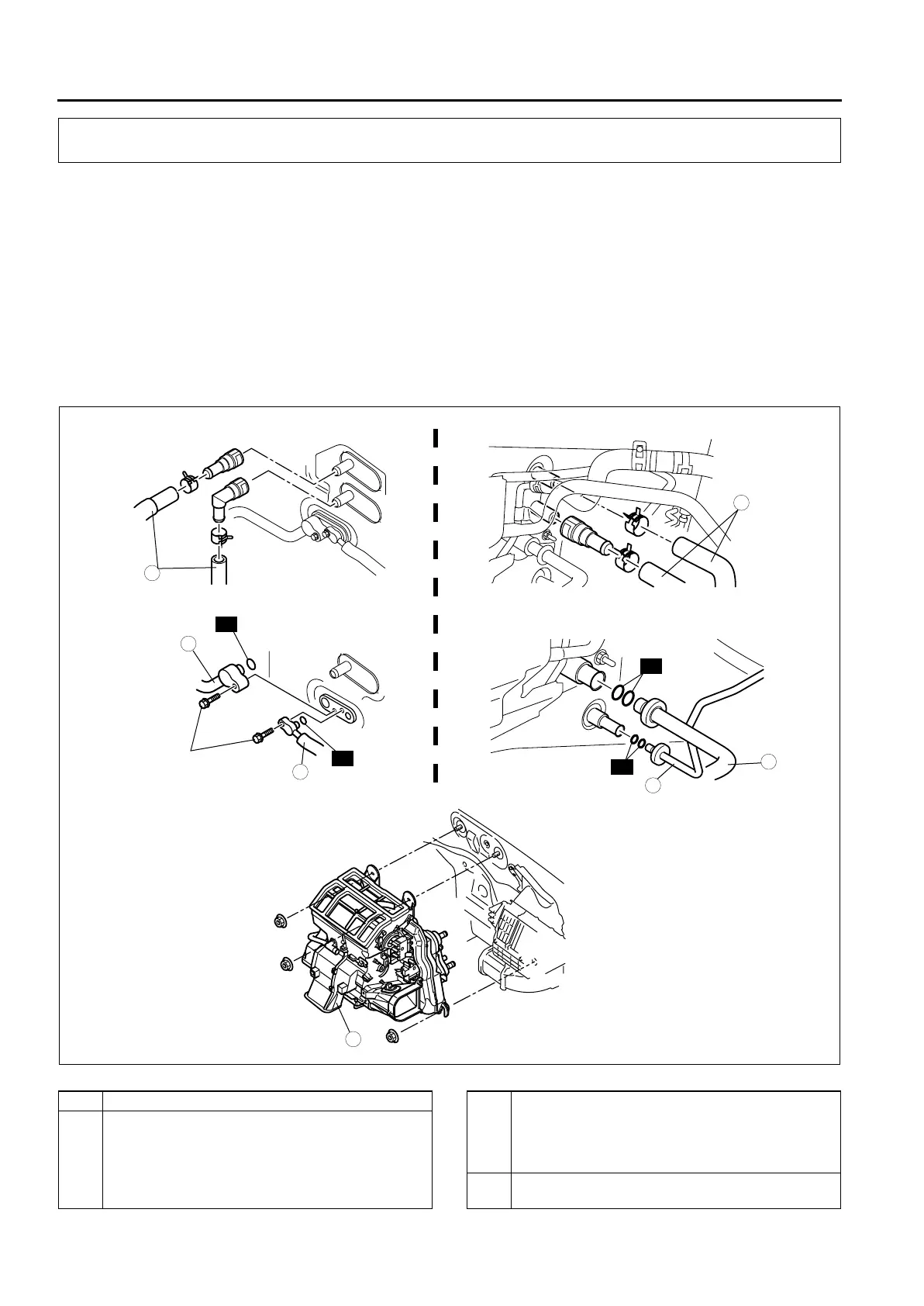

6. Remove in the order indicated in the table. Do not allow compressor oil to spill.
.
BASIC SYSTEM
1
L.H.D.
R.H.D.
3
2
R
R
N·m {kgf·cm, in·lbf}
6.86—9.80
{70.0—99.9,
60.8—86.7}
R
R
3
2
1
4
A6E85162001
1 Heater hose
2 Cooler pipe No.4 (L.H.D.) or cooler pipe No.5
(R.H.D.)
(See U–13 REFRIGERANT LINES REMOVAL/
INSTALLATION) (R.H.D.)
(See U–13 REFRIGERANT LINES REMOVAL/
INSTALLATION)
3 Cooler pipe No.3
(See U–13 REFRIGERANT LINES REMOVAL/
INSTALLATION) (R.H.D.)
(See U–13 REFRIGERANT LINES REMOVAL/
INSTALLATION)
4A/C unit
(See U–11 A/C Unit Installation Note)
