DRIVE SHAFT HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3A-17

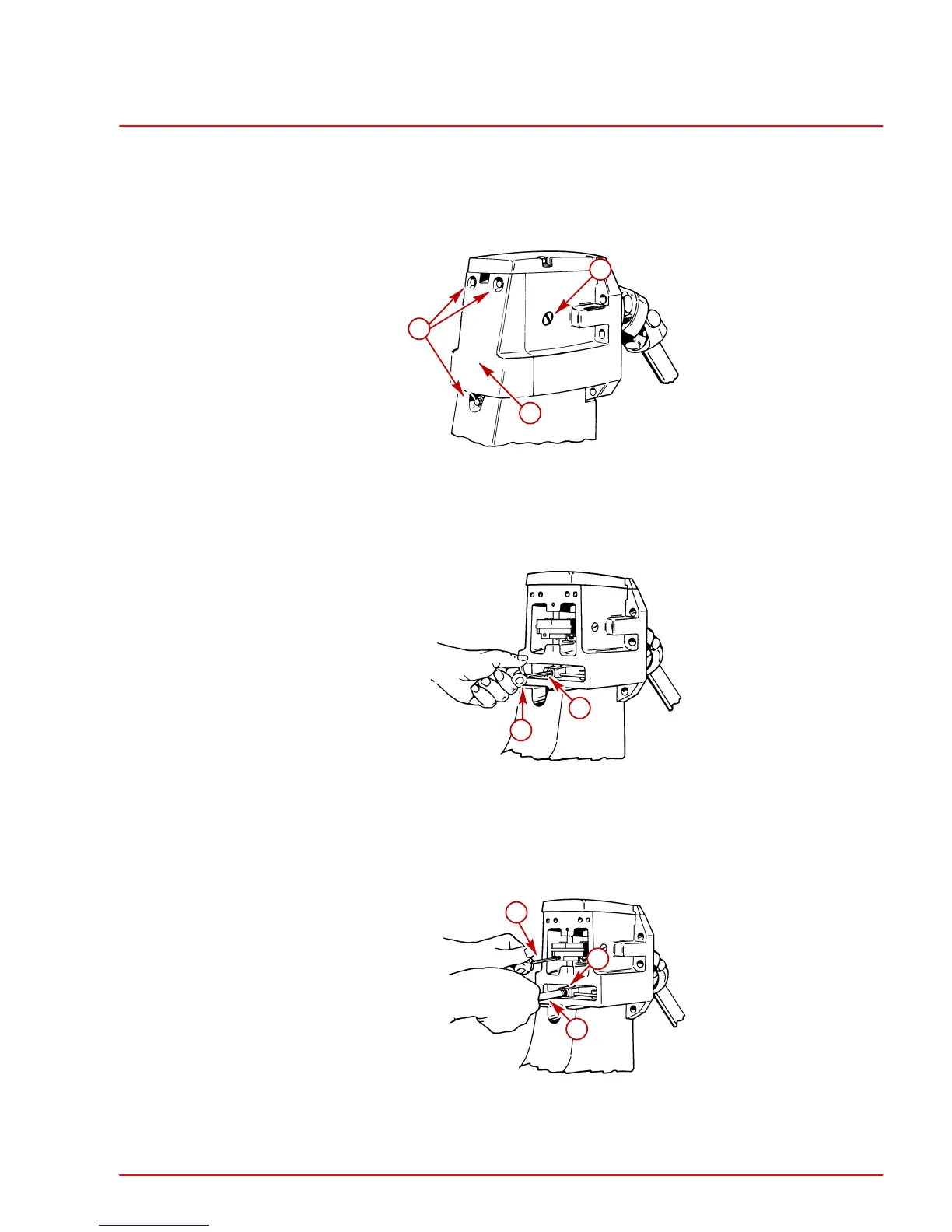

Drive Shaft Housing Disassembly
1. Shift drive unit to the neutral detent position.
2. Remove rear cover by removing screws. Do not replace vent screw until reassembly.
76805
a
c
b
a-Screws
b-Rear Cover
c-Vent Hole
3. Remove shift linkage cap screw.
76806
a
b
a-Shift Linkage Cap Screw
b-Hex Wrench
4. Install shift handle tool into shift lever and shifter shaft to aid in removing shift cam cap
screw.
76807
b
c
a
a-Shift Cam Cap Screw
b-Hex Wrench
c-Shift Handle Tool (91-17302)
