BRAVO ONE GEAR HOUSING SERVICE MANUAL NUMBER 28
Page 3B-20 90-863160 MAY 2000

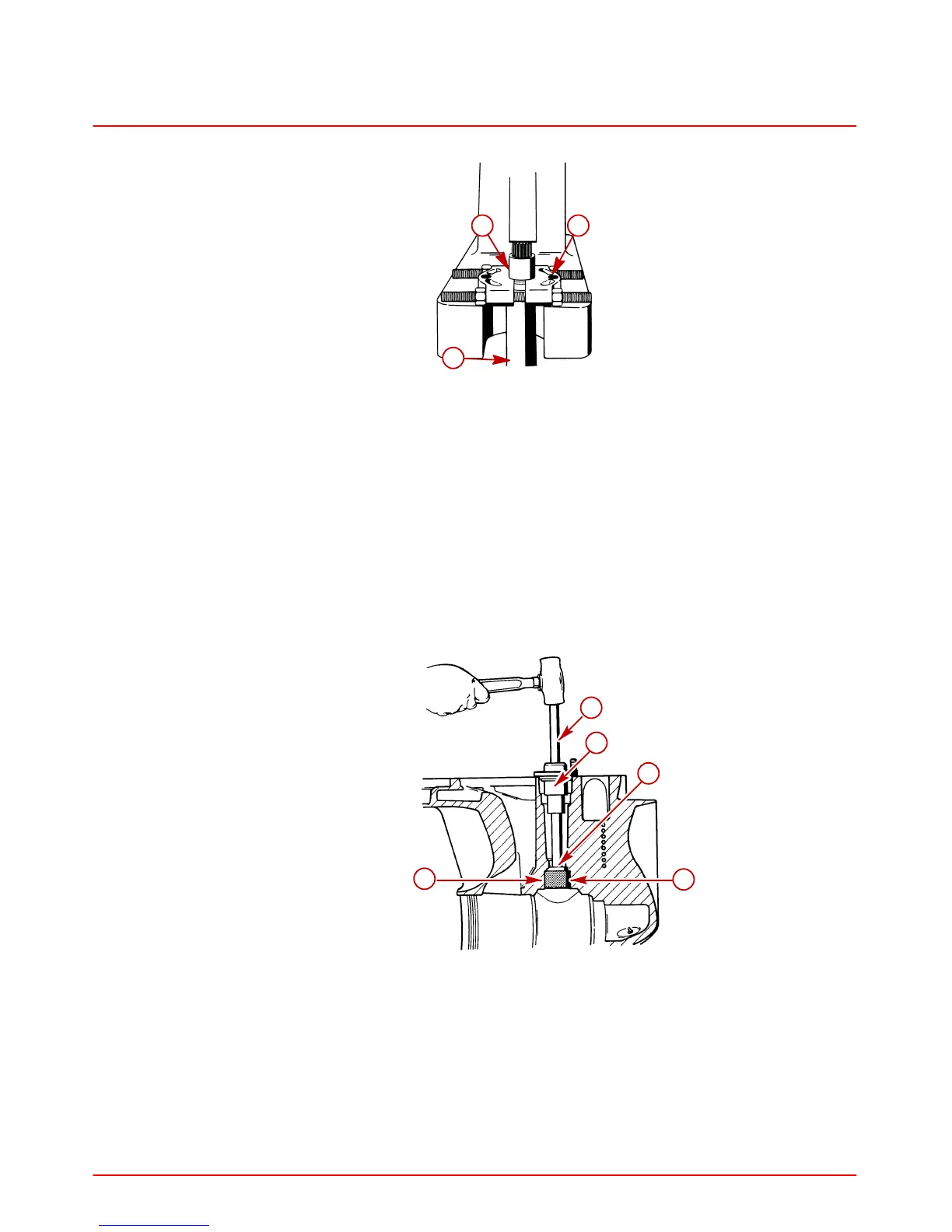

2. Press drive shaft pinion bearing inner race from drive shaft, using universal puller plate.
a
b
c
76881
a-Drive Shaft
b-Pinion Bearing Inner Race
c-Universal Puller Plate
Pinion Bearing Removal
IMPORTANT: All needle bearings MUST BE in place inside bearing casing while driv-
ing pinion bearing from gear case or bearing casing will bend or break and become
difficult to remove.
1. Heat area around bearing remover to approximately 200° F (93.3_C) to ease removal.
Do not use open flame.
2. Remove pinion bearing using bearing remover, driver rod and bearing driver as a pilot.
75902
b
a
c
d
d
a-Bearing Driver (91-813653) - Used As Pilot
b-Driver Rod (91-37323)
c-Bearing Remover (91-63638T)
d-Area Around Bearing
