OILDYNE TRIM PUMP SERVICE MANUAL NUMBER 28
Page 5A-24 90-863160 MAY 2000

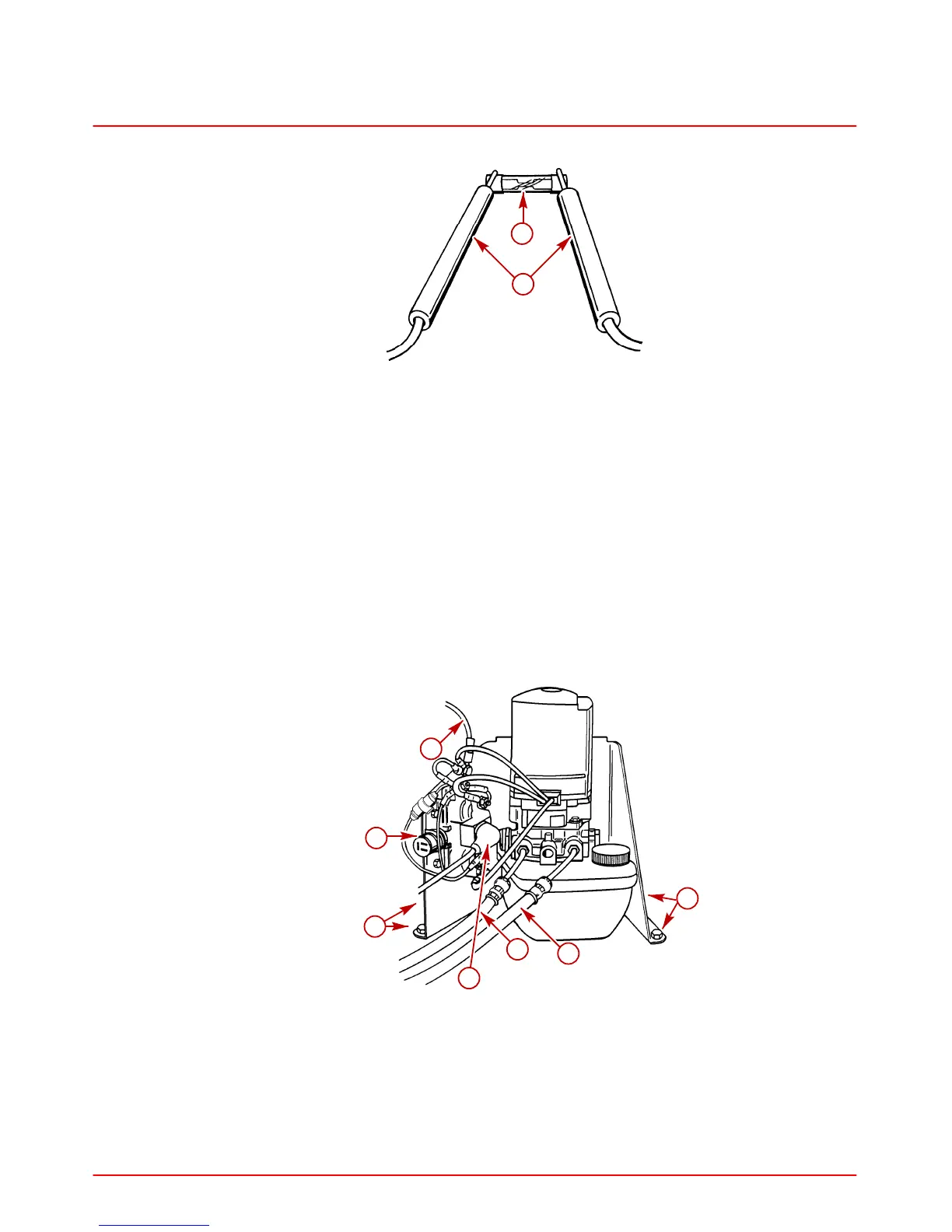

2. Connect one ohmmeter lead to each end of the fuse.
22497
a
b
a-20 Amp Fuse
b-Ohmmeter Leads
3. Zero Ohms Reading (Full Continuity)-Fuse OK.
High Ohms Reading (No Continuity)-Replace fuse.
Trim Pump Removal
1. Disconnect the trim pump battery leads from the power source. Disconnect the negative
lead first.
2. Disconnect the trim harness connector (3 pronged connector) from the trim pump.
3. Remove the hydraulic hoses from the trim pump. Cap the hose ends.
4. Remove the lag bolts and washers. Then, lift the pump and floor bracket from the boat.
22459
f
e
d
a
f
c
b
a-Positive Battery Lead
b-Negative Battery Lead
c-Harness Connector
d-BLACK Hydraulic Hose (UP Hose)
e-GRAY Hydraulic Hose (DOWN Hose)
f-Lag Bolts and Washers
To Next Page
