COMPACT HYDRAULIC STEERING SERVICE MANUAL NUMBER 28
90-863160 MAY 2000Page 6B-8
Purging

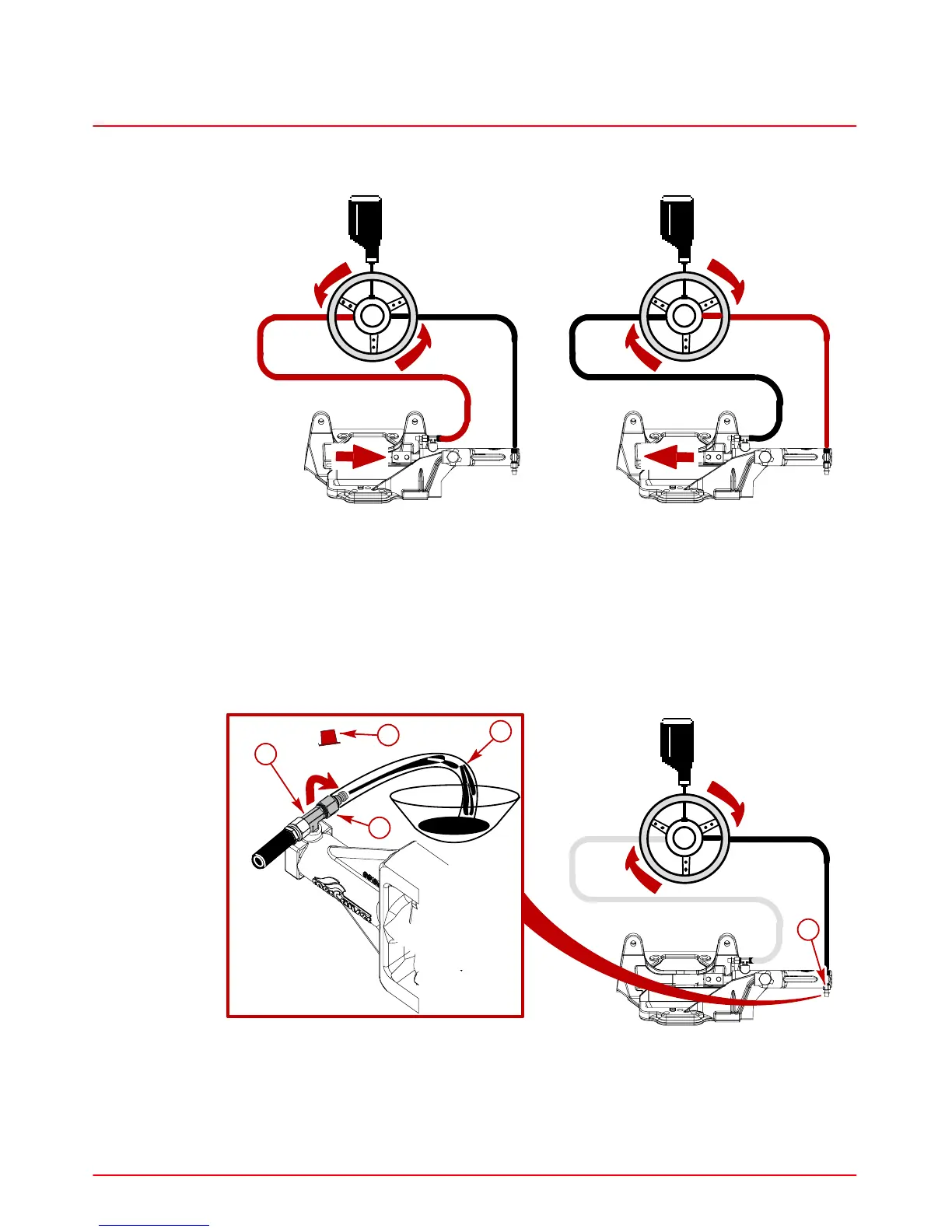

Turning the steering wheel in direction shown moves the cylinder rod as indicated by arrow.
76090
1. Remove caps from bleeder valves on T-Fittings at cylinder assembly.
NOTE: Place temporary hoses (obtain locally - clear hose is recommended) on bleeder out-
lets and position these hoses in a container to avoid spillage and air return to bleeder.
2. Turn the steering wheel slowly CLOCKWISE while your assistant opens the
STARBOARD bleeder valve.
3. Continue to turn steering wheel clockwise until a stream of air free hydraulic fluid is
visible out of bleeder.
4. While continuing to slowly turn the steering wheel, close the STARBOARD bleeder.
76090
a
b
c
d
c
a-Cap
b-Starboard T-Fitting
c-Starboard Bleeder Valve
d-Temporary Hose
5. Turn steering wheel clockwise until cylinder rod is fully extended. Ensure steering lever
does not interfere with cylinder clevis.
To Next Page
