SERVICE PROCEDURES REQUIRING MAJOR DISASSEMBLY SERVICE MANUAL NUMBER 28

Page 4B-16 90-863160 MAY 2000

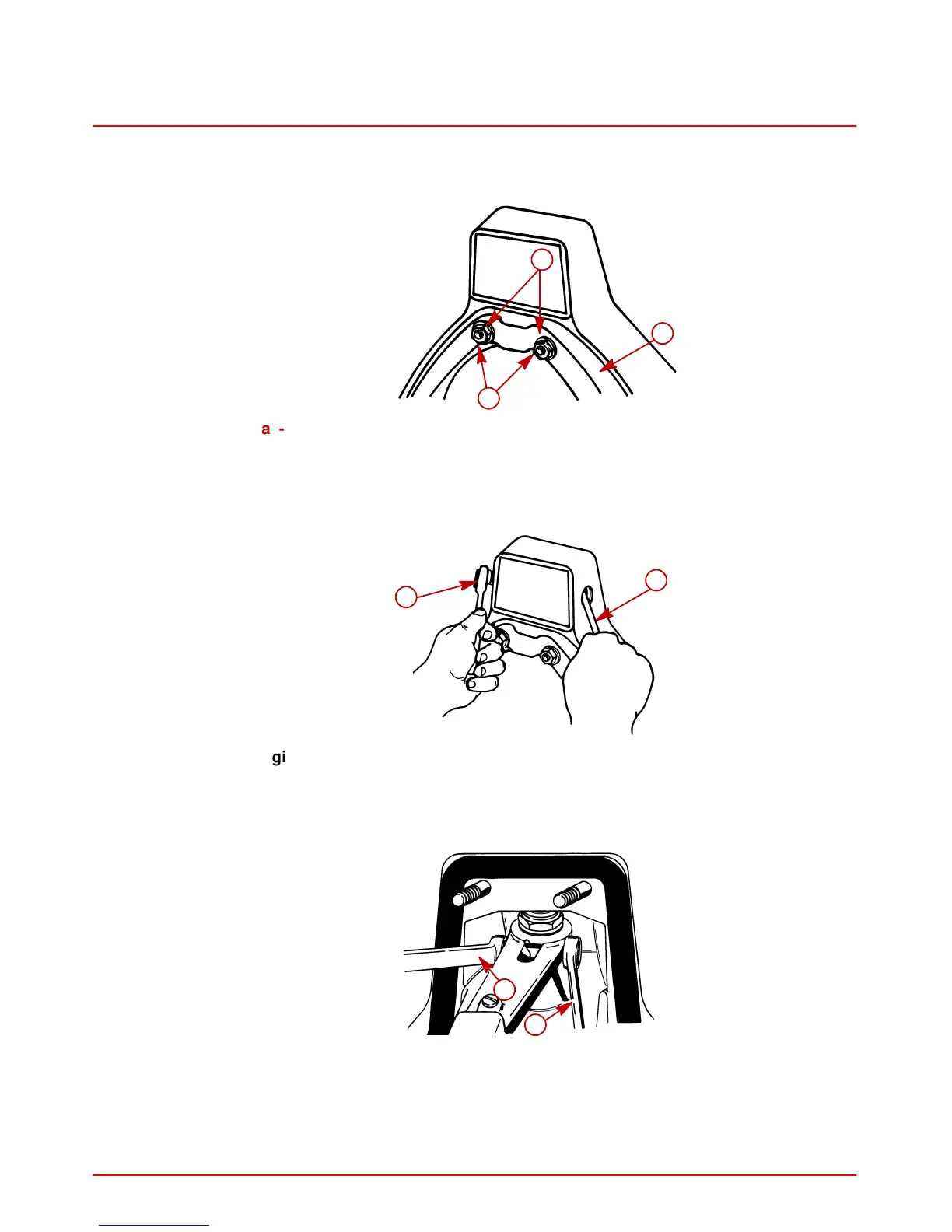

Gimbal Ring, Swivel Shaft and Steering Lever Removal

1. Loosen U-bolt nuts.

70150

a-U-bolt Nuts (2)

b-Washers (4)

c-Gimbal Ring

2. Loosen steering lever clamping bolt and nut.

70157

Engine and transom assembly installed

a-Wrench

b-Socket Wrench

22460

Engine and transom assembly removed

a-Wrench

b-Wrench
