TRIM CYLINDERS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5B-7
Trim Cylinder Internal Leak Test
Refer to Power Trim Pump SECTION 5A.
Trim Cylinder Shock Piston Test
Refer to Power Trim Pump SECTION 5A.
Trim Cylinder Repair
Removal
1. Disconnect OUT/UP trim hose from front hole on trim cylinder.
2. Disconnect IN/DOWN trim hose from hydraulic connector on gimbal housing. Plug holes
with suitable plug or (P/N 22-38609). Cap hoses.

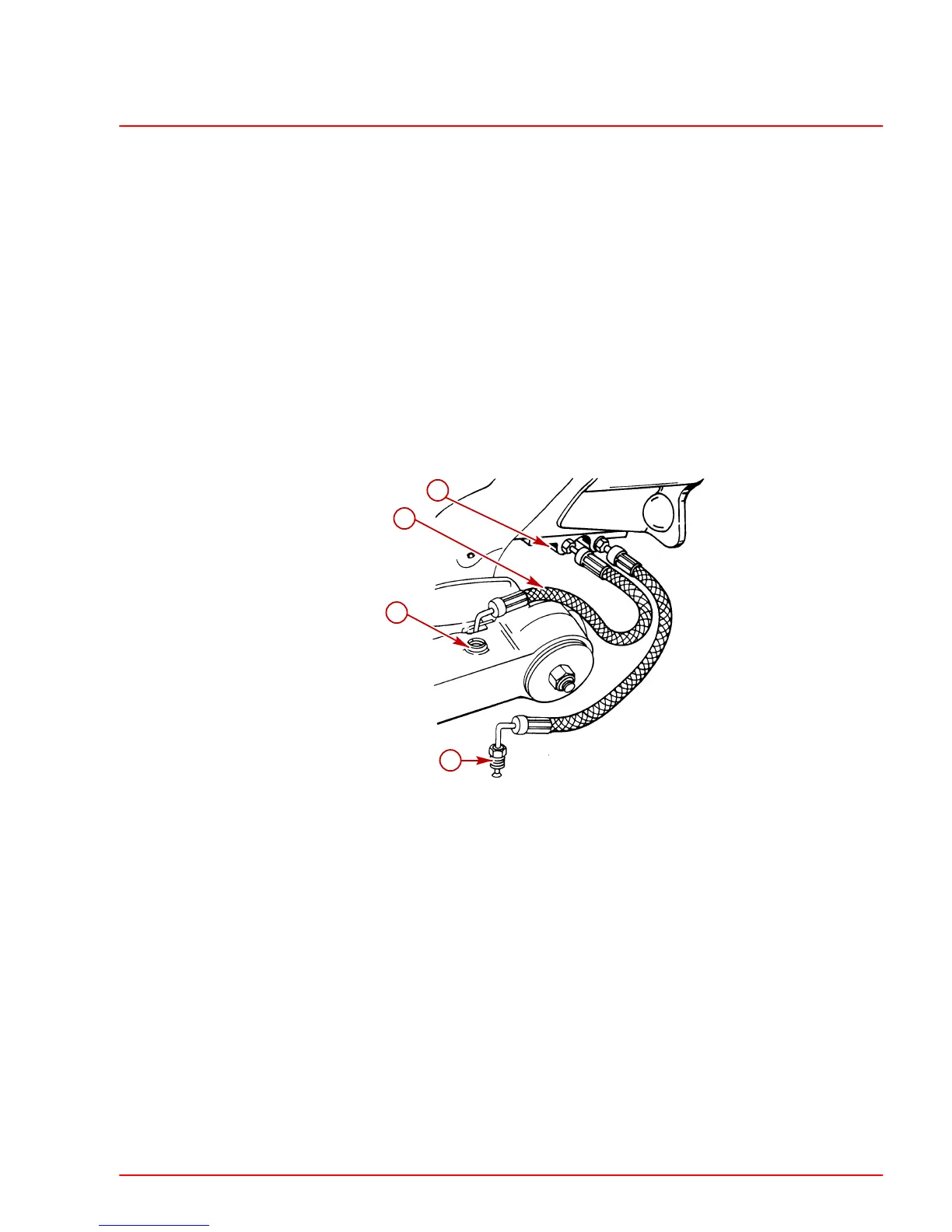

50389
a
b
c
d
a-OUT/UP Hose
b-Front Hole On Trim Cylinder
c-IN/DOWN Hose
d-Hydraulic Connector
To Next Page
