POWER STEERING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 6A-23

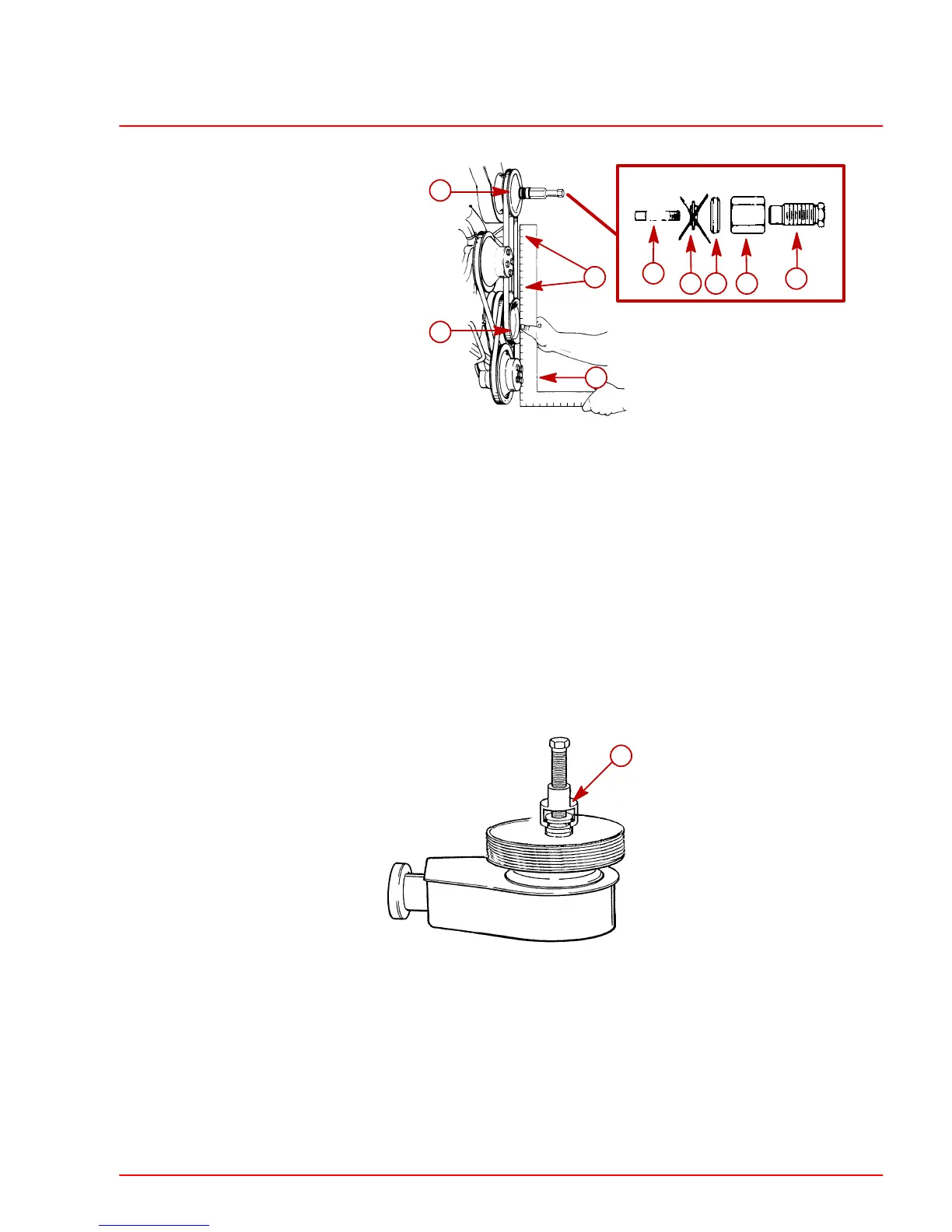

e. Check pulley installation for correct alignment.
a
g
h
i
b
c
d
e
f
76896
a-Power Steering Pump Pulley
b-Stud
c-Do NOT Use Spacer
d-Bearing
e-Nut
f-Shaft
g-Crankshaft Pulley (Shown) or Water Circulating Pump Pulley
h-Long Straight Edge
i-Drive Belt Parallel
Disassembly
1. Drain fluid from pump.
2. Remove pump pulley.
72821
a
a-Kent Moore Pulley Removal Tool (J-25034)
3. Remove reservoir, fitting assembly, control valve assembly, flow control spring, studs,
and 0-rings.
