BRAVO TWO GEAR HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3C-7
Drive Shaft Housing and Gear Housing Separation

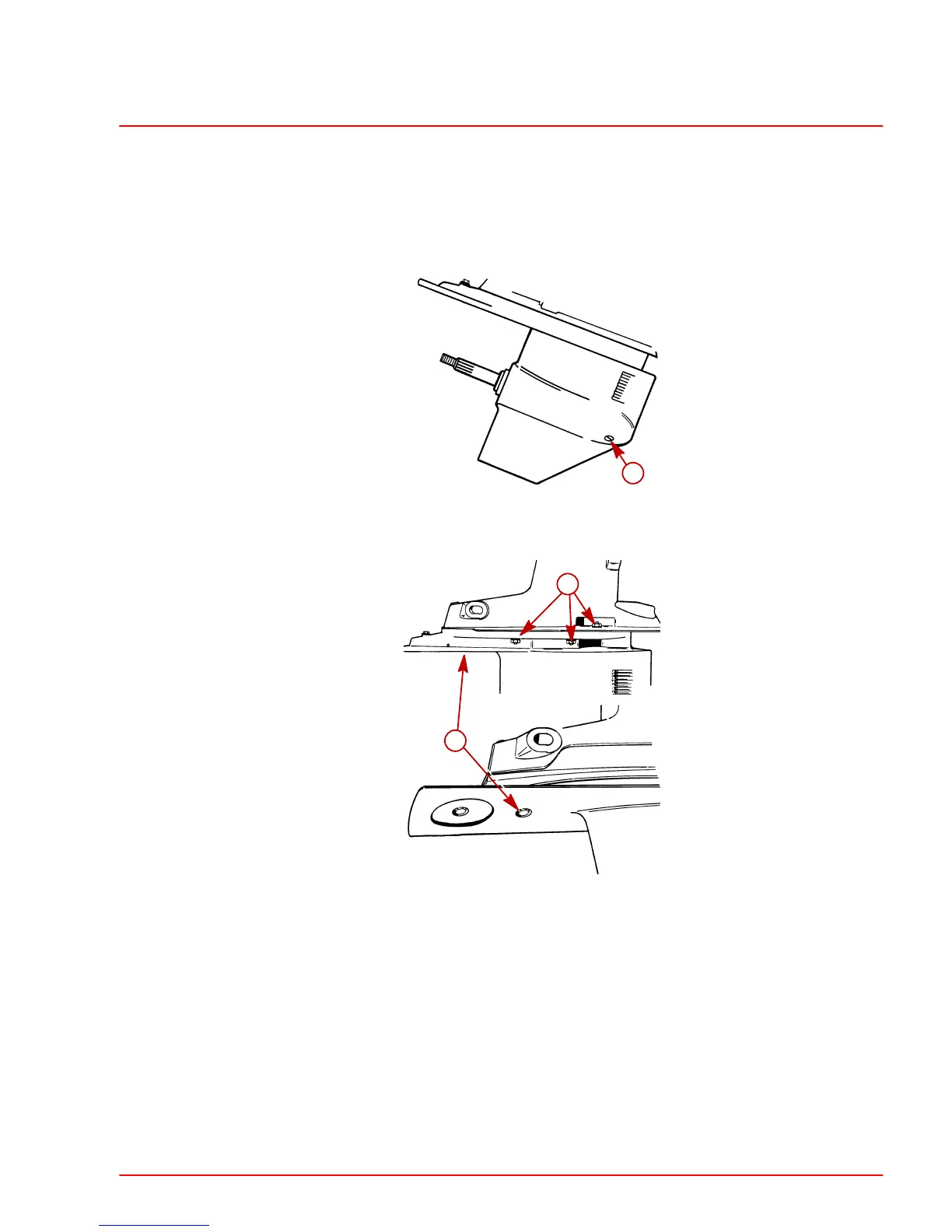

1. Remove, empty and clean gear lube monitor.
2. Tilt drive unit to a 45° angle. Remove fill/drain screw and drive shaft housing vent screw.
Allow drive unit to drain completely.
a
76801
a-Fill/Drain Screw
3. Remove gear housing from drive shaft housing.
a
b
a-Nuts And Washers (6)
b-Bolt (1)
4. Finish draining gear case by turning upside down over a container.
To Next Page
