POWER STEERING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 6A-11
Power Steering Assembly
Removal
1. Remove rear clevis pin from steering lever.
2. Remove forward clevis pin from steering cable.
3. Using suitable wrenches hold the flat surfaces on the cable guide tube in the vertical
position then loosen the coupler nut and remove the steering cable.
4. Remove and plug the power steering hoses.
5. Straighten locking tabs on pivot bolt washers.
6. Remove the pivot bolts.
7. Power steering unit can now be removed from transom.
73901
71901
e
j
i
g
a
b
h
c
d
f

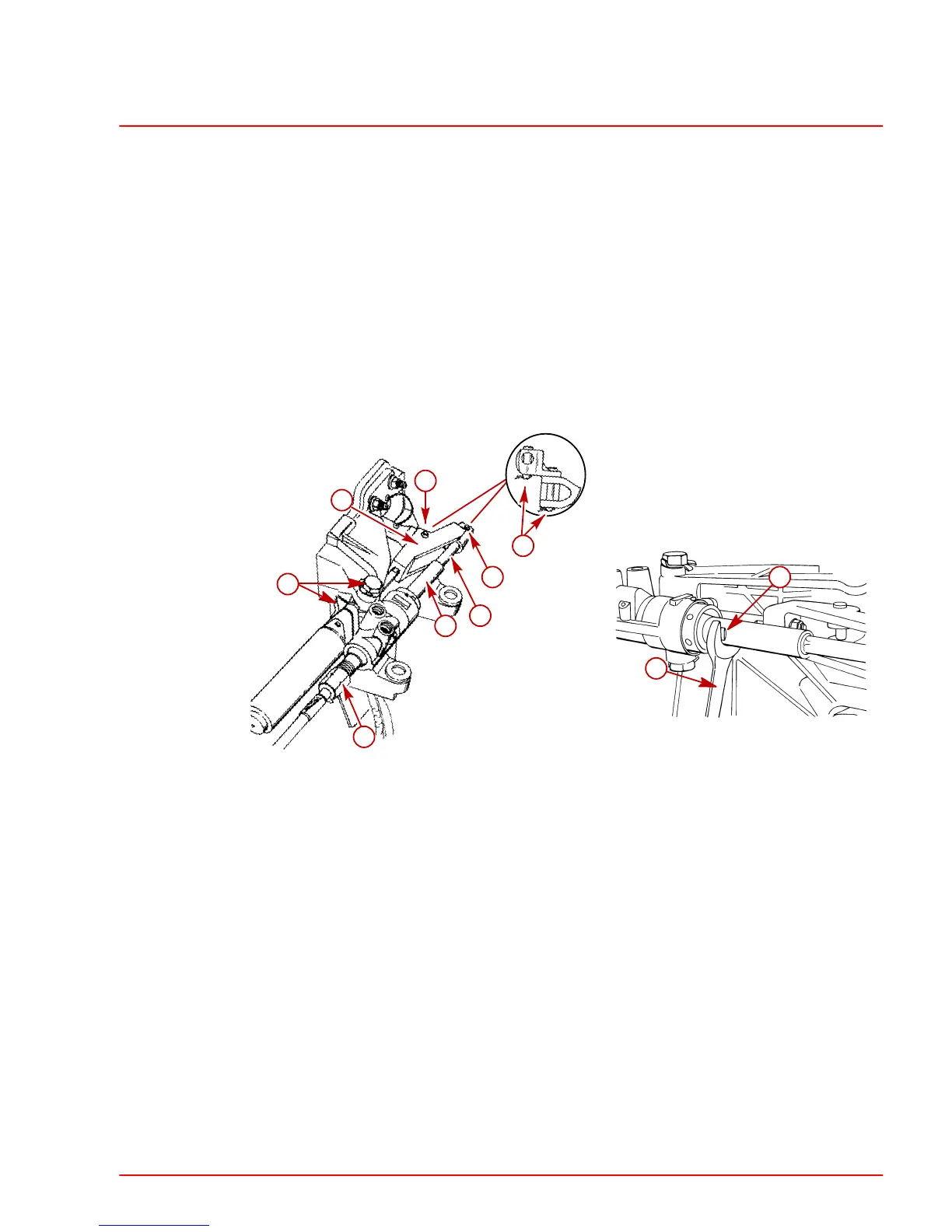

Control Valve
a-Clevis
b-Rear Clevis Pin
c-Forward Clevis Pin
d-Steering Cable End
e-Cable Guide
f-Pivot Bolt
g-Coupler Nut
h-Cotter Pins
i-Flat Surface On Tube
j-Suitable Wrench
