POWER STEERING SERVICE MANUAL NUMBER 28
Page 6A-12 90-863160 MAY 2000
Installation
WARNING
Steering cable outer casing MUST BE free to move back-and-forth for steering to
function properly. DO NOT fasten any wires, cables or other items to steering cable,
as this may prevent it from moving.

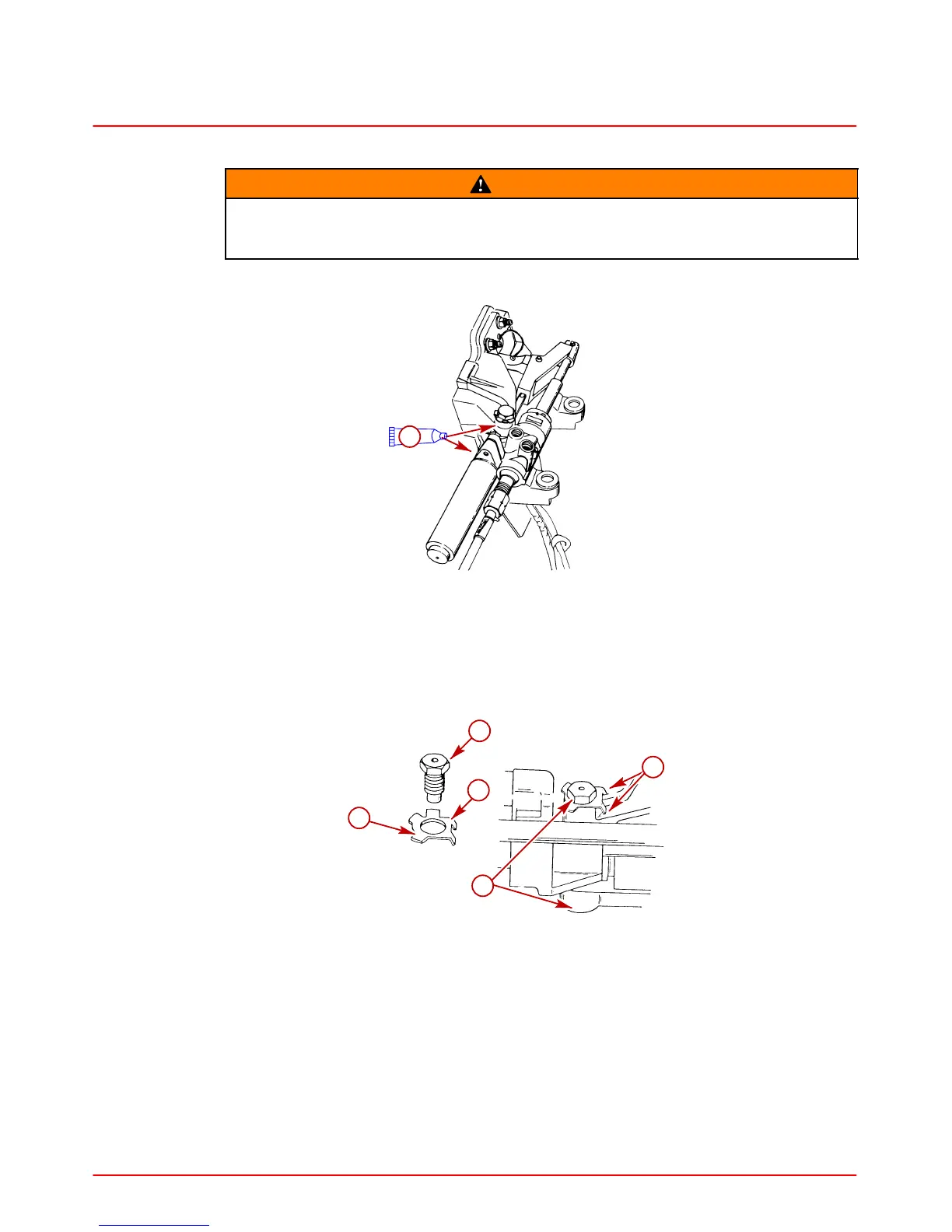

1. Lubricate bushings with Special Lubricant 101.
71901
a
a-Special Lubricant 101
2. Slide the power steering cylinder bushings between the transom mounting brackets.
Tighten the two pivot bolts by hand. Move the steering assembly slightly to ensure prop-
er pin engagement into the pivot bushings.
3. Ensure that the washer tangs straddle the ridges on the inner transom plate.
22033
a
b
b
a
c
a-Pivot Bolt
b-Washer Tang
c-Washer Tab
4. Torque the pivot bolts to 25 lb-ft (34 Nm).
5. Bend the washer tabs against the corresponding flats on both pivot bolt heads.
6. Ensure the power steering control valve pivots freely.
To Next Page
