POWER STEERING SERVICE MANUAL NUMBER 28
Page 6A-20 90-863160 MAY 2000
3. Remove mounting fasteners from pump.
75798
a
b
75228
a

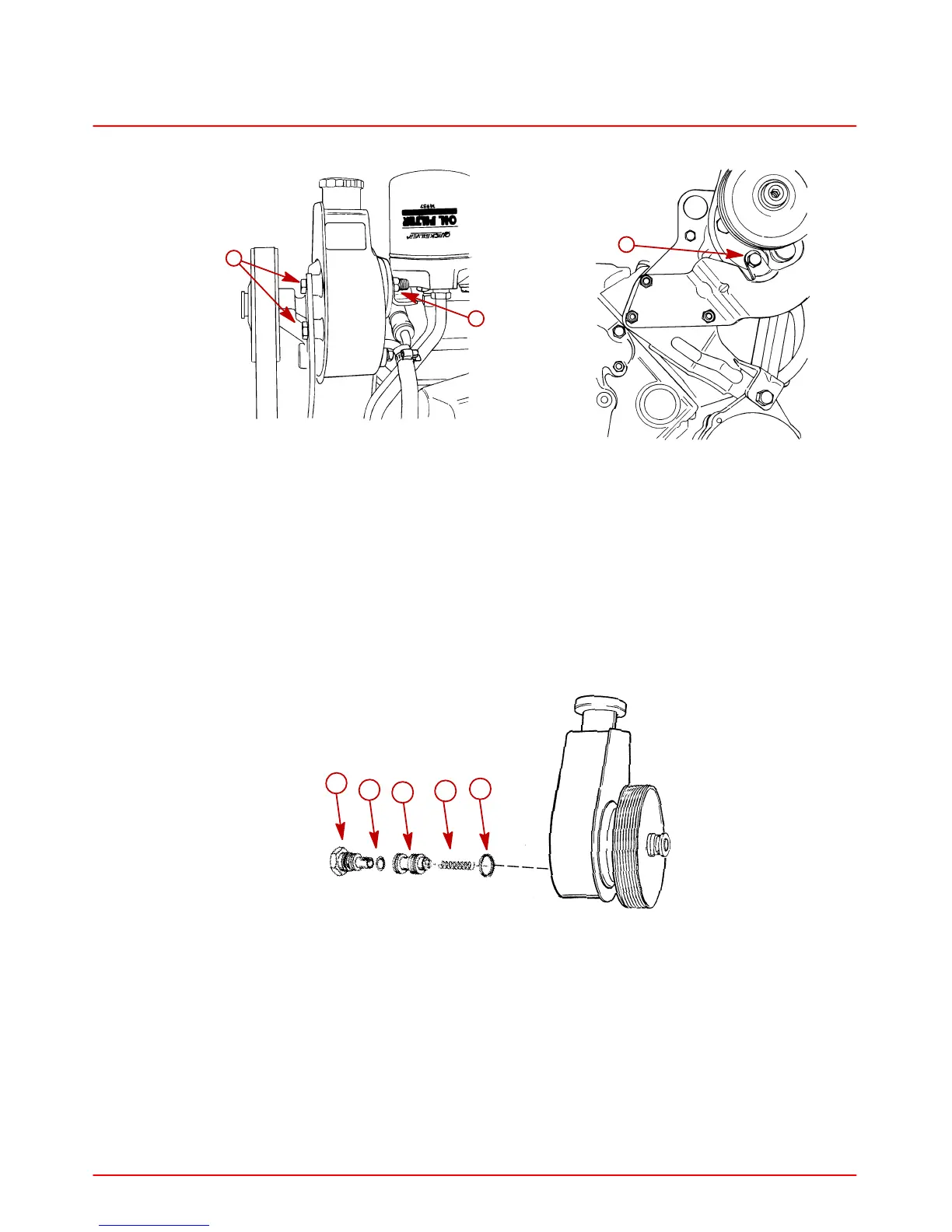

Power Steering Pump Typical Location
a-Nut
b-Bolts
4. Remove the power steering pump from the bracket.
Flow Control Valve Servicing
1. Drain fluid from pump.
2. Remove components shown.
a
b
cd
d
76869
a-Fitting Assembly
b-Control Valve Assembly
c-Flow Control Spring
d-O-rings
3. Inspect control valve assembly and fitting assembly for contamination and damage.
