BRAVO TWO GEAR HOUSING SERVICE MANUAL NUMBER 28
Page 3C-18 90-863160 MAY 2000

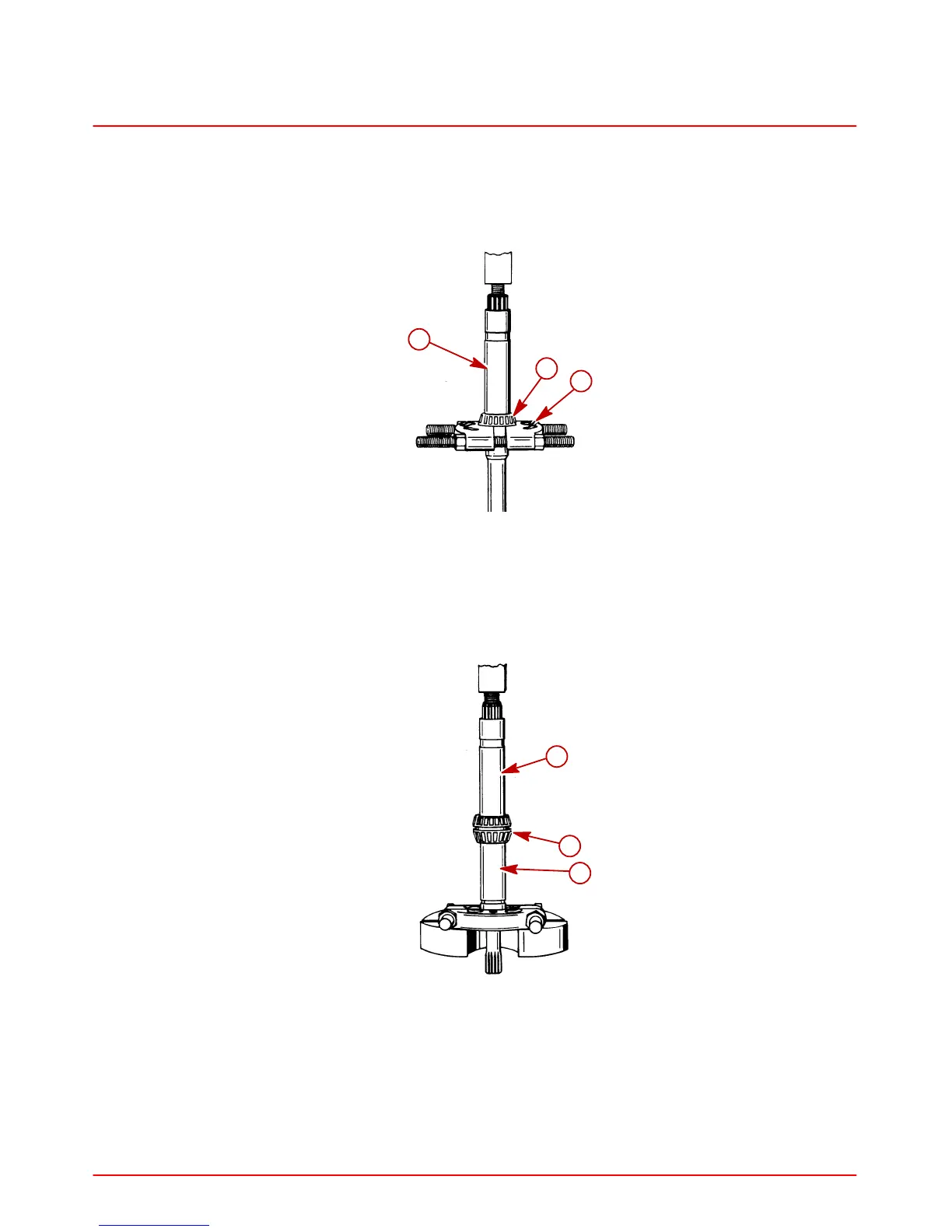

Drive Shaft Reassembly
1. Lubricate inside diameter of tapered roller bearing with gear lube. Press small tapered
roller bearing onto drive shaft using universal puller plate. Ensure that smaller outside
diameter faces pinion end of shaft.
22109
a
b
c
a-Universal Puller Plate
b-Drive Shaft
c-Small Tapered Roller Bearing
2. Lubricate inside diameter of tapered roller bearing with gear lube. Press large tapered
roller bearing onto drive shaft using suitable mandrel or old bearing race. Ensure that
larger outside diameter faces pinion end of shaft.
22109
a
b
c
a-Suitable Mandrel (On Inner Race Of Bearing)
b-Drive Shaft
c-Large Tapered Roller Bearing
