Mercury BRAVO

CORROSION PROTECTION - ALL MODELS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 7A-9
Integral MerCathode System

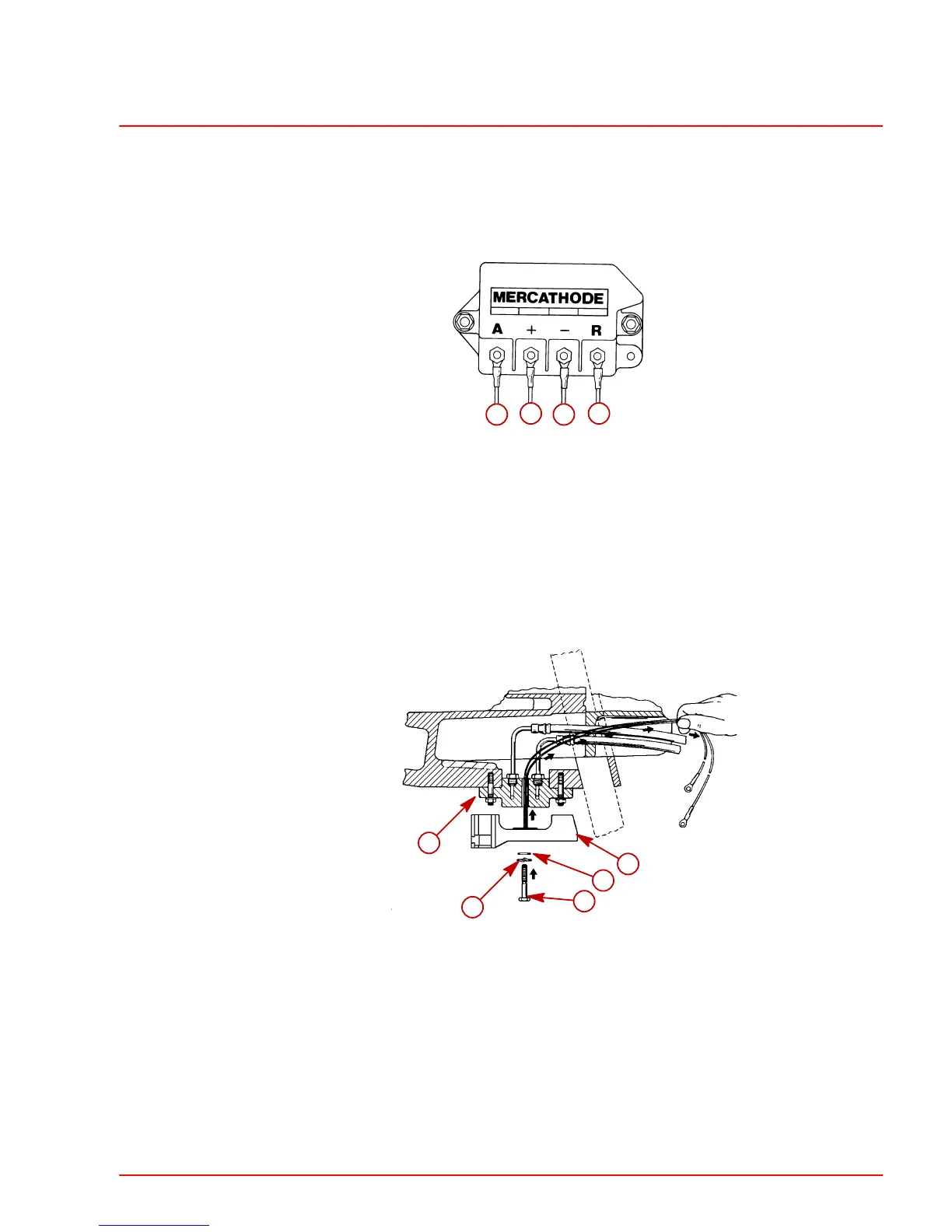

Removing Electrode Assembly
1. Disconnect electrode assembly wires from MerCathode Controller.
a b c d
22232
a-ORANGE Lead - From Electrode On Transom Assembly
b-RED/PURPLE Lead - Connect To Positive (+) Battery Terminal
c-BLACK Lead - From Engine Harness
d-BROWN Lead - From Electrode On Transom Assembly
2. Remove two screws, flat washers and lock washers.
3. Remove electrode assembly.
70771
a
b
c
d
e
a-Electrode Assembly
b-Screw (2)
c-Flat Washer (2)
d-Lock Washer (2)
e-Hydraulic Connector Block
