Mercury BRAVO Service Manual

COMPACT HYDRAULIC STEERING SERVICE MANUAL NUMBER 28
90-863160 MAY 2000Page 6B-4

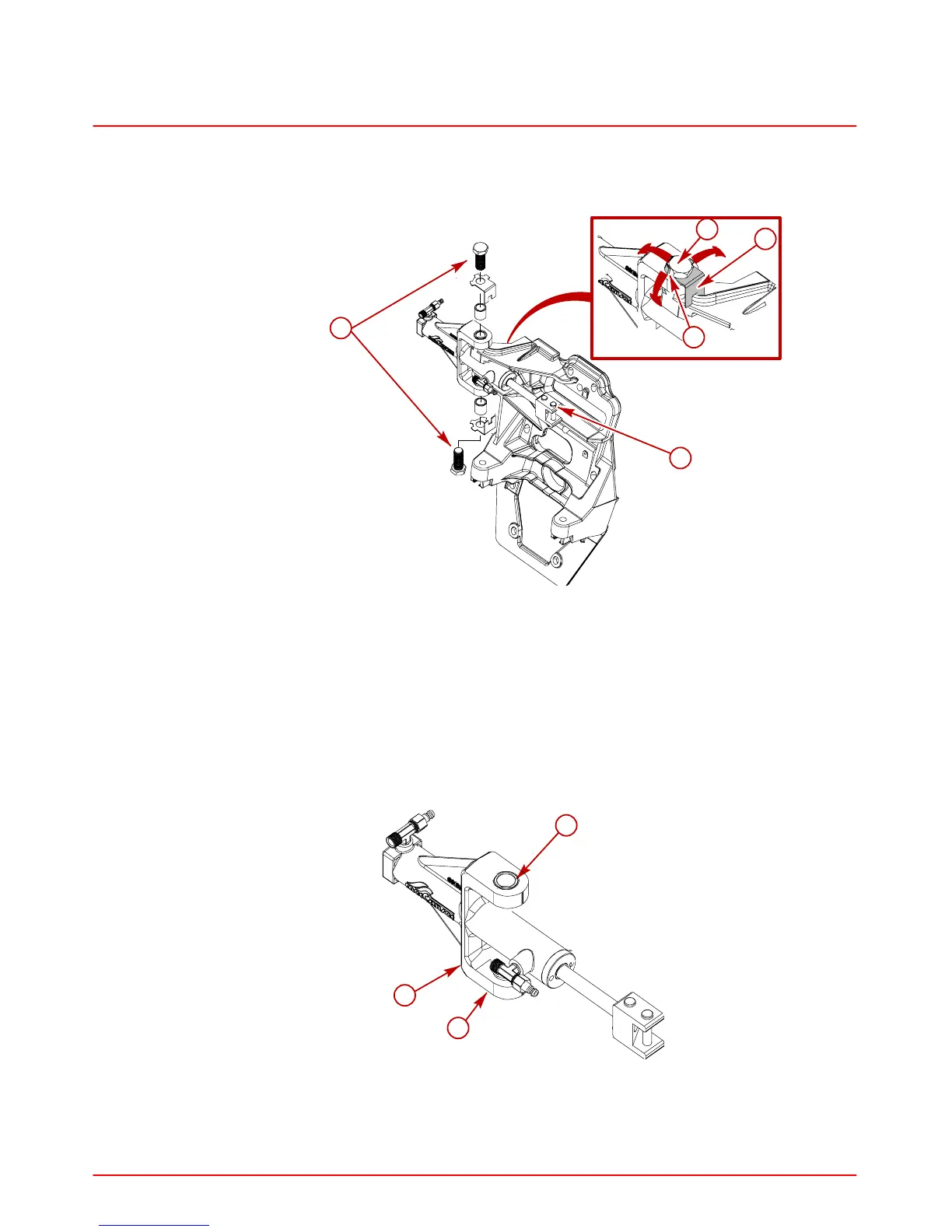

3. Remove cotter pin from port clevis pin and remove clevis pin.
4. Bend pivot bolt tab washer tabs away from bolts.
5. Remove pivot bolts.
76087
a
b
c
d
a
a-Pivot Bolts
b-Port Clevis Pin
c-Tab Washer
d-Tab
6. Remove steering cylinder from transom.
Installing The Steering Cylinder
1. Ensure that bushings are clean. Lubricate bushings with Special Lubricant 101.
76087
b
a
a
a-Bushings
b-Steering Cylinder Assembly
