ACCESSORIES - ALL MODELS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 8A-17
Mounting Power Shift Cylinder
1. Securely fasten the power shift cylinder to the boat with lag screws or bolts.
2. Fasten the input cable to the boat. Do not fasten the cable within 18 in. (457 mm) of the
power shift cylinder.
IMPORTANT: Do not secure the output
cable to the boat or any other cable or hose.
The outer conduit of the cable must be free to move back and forth when the unit is
shifted.
Connecting Vacuum Hose to Engine
IMPORTANT: Keep the vacuum hose in as straight an incline, from the cylinder to the
engine hose fitting, as possible. Avoid a sag (low spot) in the hose.

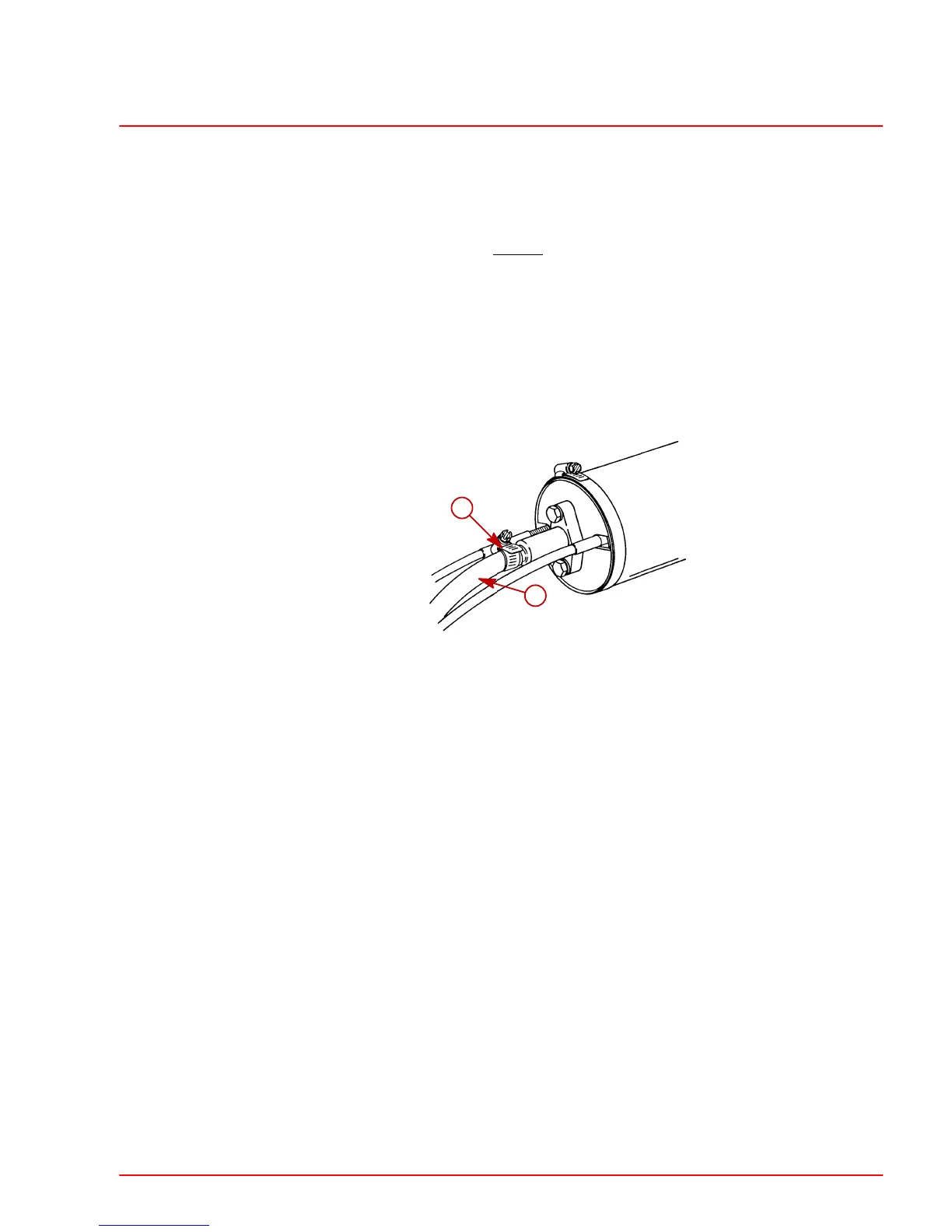

1. Connect the vacuum hose to power shift cylinder, as shown.
2. Securely tighten the hose clamp.
50152
a
b
a-Vacuum Hose
b-Hose Clamp
3. If replacing the vacuum hose, cut the hose to the length required.
To Next Page
