ACCESSORIES - ALL MODELS SERVICE MANUAL NUMBER 28
Page 8A-18 90-863160 MAY 2000
4. Place the hose clamp over the end of the hose and slide the hose over the fitting. Tighten
the hose clamp securely.
50152
a
b
c
d

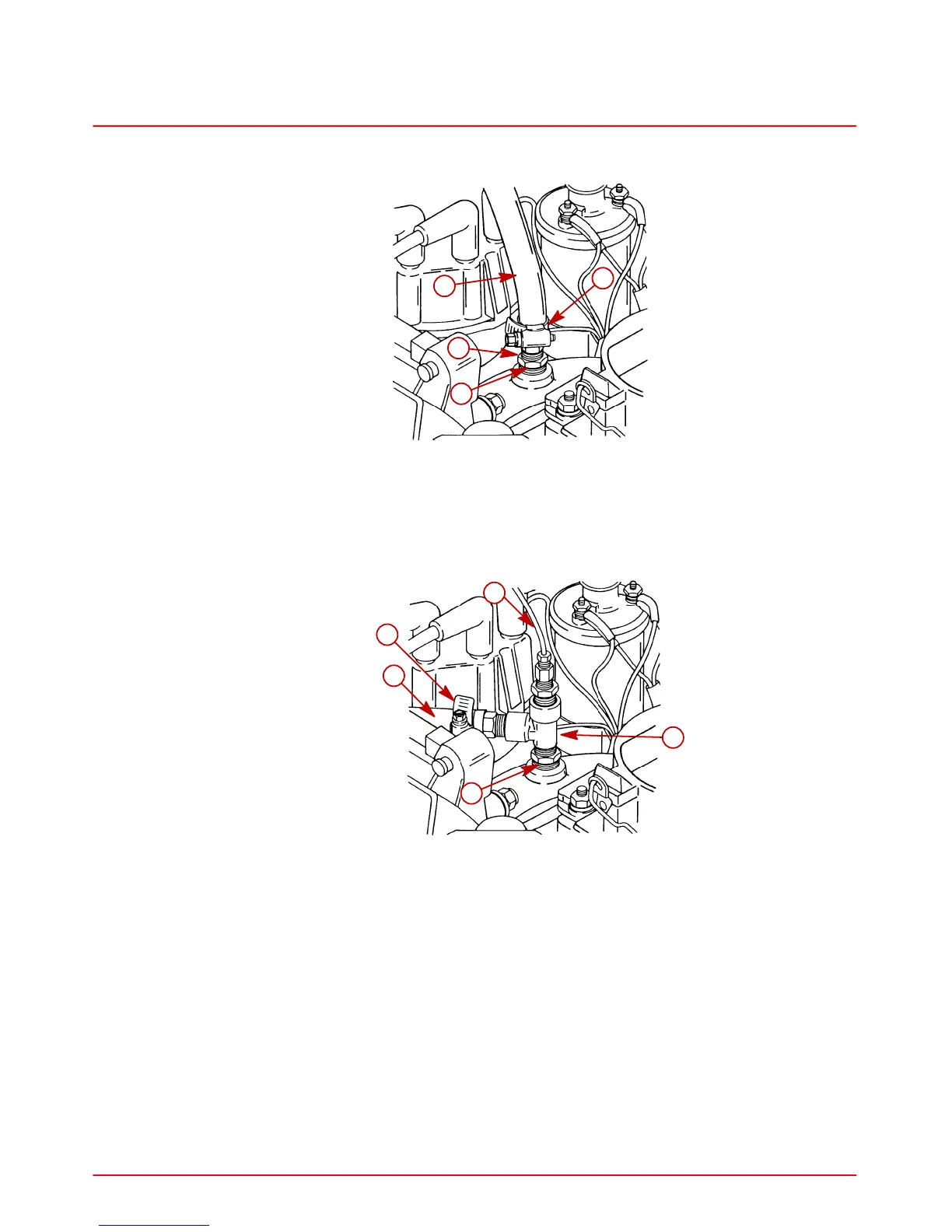

Engine WITHOUT Vacuum Gauge Installed
a-Vacuum Hose
b-Hose Clamp
c-Hose Connector Fitting
d-Reducer Fitting
50152
a
b
e
c
d
Engine WITH Vacuum Gauge Installed
a-Vacuum Gauge Line (To Instrument Panel)
b-T-fitting
c-Vacuum Hose (From Power Shift Cylinder)
d-Hose Clamp
e-Reducer Fitting
