POWER STEERING SERVICE MANUAL NUMBER 28
Page 6A-32 90-863160 MAY 2000
Installation
IMPORTANT: Be careful to not cross-thread or overtighten hose fittings.
1. Place the power steering pump on the bracket and install the screws and nut. Torque
to 30 lb-ft (41 Nm).
75798
75228
b
a
a

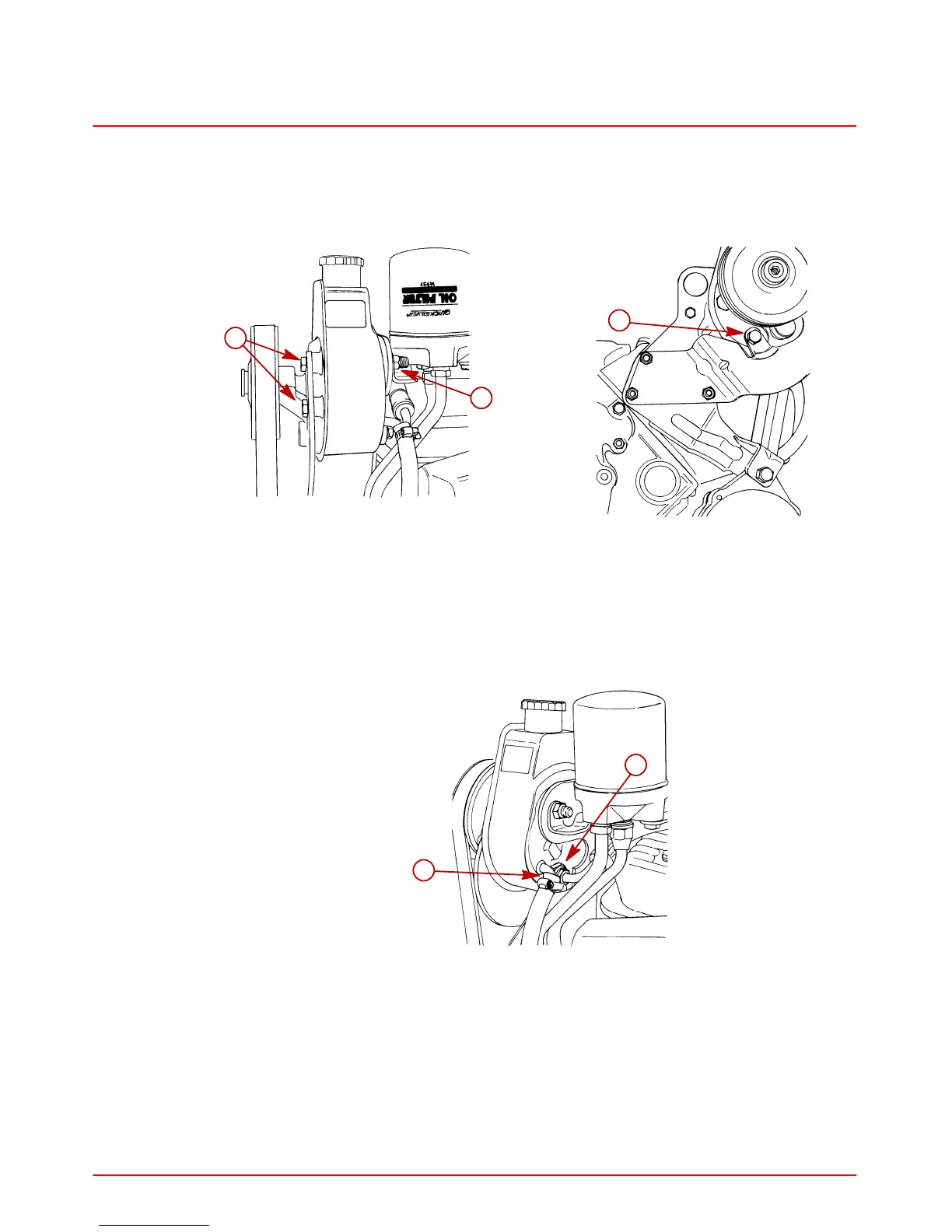

Power Steering Pump Typical Location
a-Nut
b-Bolts
2. Be certain a new high pressure hose O-ring is present. Install threaded fitting in back
of pump assembly. Tighten fitting securely. Connect low pressure hose on back of pump.
Tighten hose clamp securely.
75228
b
a
Power Steering Pump Typical Location
a-Return Hose
b-High Pressure Hose
3. Install mounting hardware and fasteners to retain pump to bracket. (Refer to “Exploded
View” for specific details on your engine.)
4. Install drive belt and adjust tension. Refer to “Pump Drive Belt Adjustment” as previously
outlined.
5. Fill and air bleed system. Refer to SECTION 1B - “Maintenance.”
