SERVICE PROCEDURES REQUIRING MAJOR DISASSEMBLY SERVICE MANUAL NUMBER 28
Page 4B-38 90-863160 MAY 2000
Trim Position Sender and Trim Limit Switch Wire Replacement

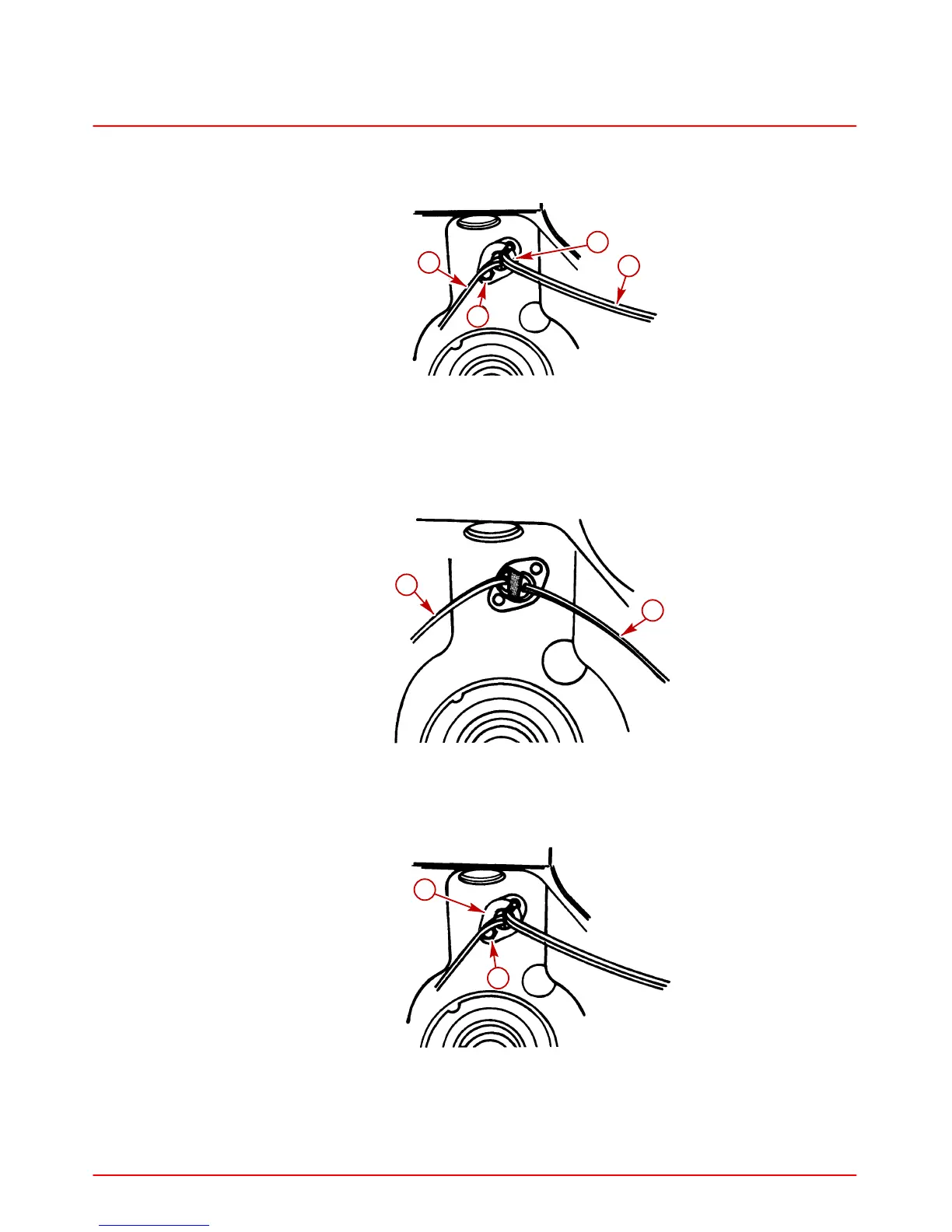

1. Remove trim limit switch wires and trim position sender wires.
70197
a
b
c
d
a-Screw
b-Trim Harness Clamp
c-Trim Limit Switch Wires
d-Trim Position Sender Wires
2. Install trim limit switch wires and trim position sender wires. DO NOT pinch wires.
70198
a
b
a-Trim Limit Switch Wires
b-Trim Position Sender Wires
3. Apply Perfect Seal to threads of screw and install trim harness clamp and screw.
70197
a
b
a-Trim Harness Clamp
b-Screw
