Electrical System Overload Protection
The Auto Trim electrical system is protected from overload by a 110-amp fuse, and a 20-amp
in-line fuse at control module positive (+) battery lead and a 20-amp in-line fuse at ignition
switch (if Quicksilver ignition switch is used). If boat is equipped with 3-Button Control Panel,
a 20-amp in-line fuse also is located at panel. If Auto Trim electrical system becomes
inoperative, check for a blown fuse. If fuse has blown, the cause for overload MUST BE
found and corrected BEFORE replacing fuse.
Auto Trim Limit Adjustment
In most cases, best all-around performance is obtained with sterndrive unit adjusted so that
front of hull will be slightly out of water when boat is on plane.

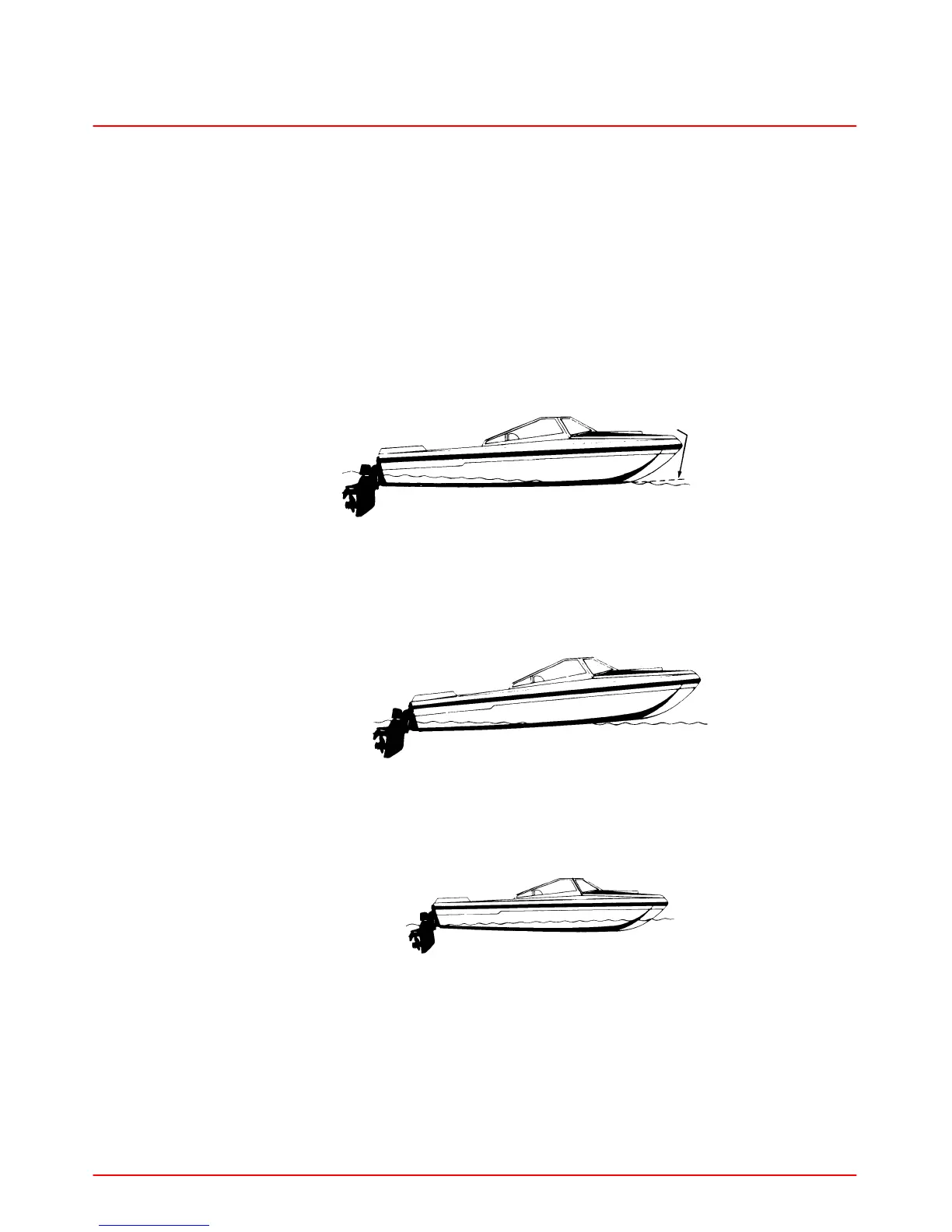

Boat Properly Trimmed
Adjusting the sterndrive unit OUT from this position will tend to raise the bow of the boat,
reducing the wetted surface of the hull and, in some cases, increasing boat speed. If
trimmed out excessively, bouncing, porpoising, propeller ventilation and possible difficult
steering control could result.
Bow Too High - Move Sterndrive Unit IN
Adjusting the sterndrive unit IN from normal position will force the bow of the boat down,
increasing the wetted surface of the hull and, in some cases, improving boat ride in rough
water (at partial throttle). However, this will reduce boat speed.
Bow Too Low - Move Sterndrive Unit OUT
