Mercury BRAVO Service Manual

OILDYNE TRIM PUMP
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5A-39
Motor Repair

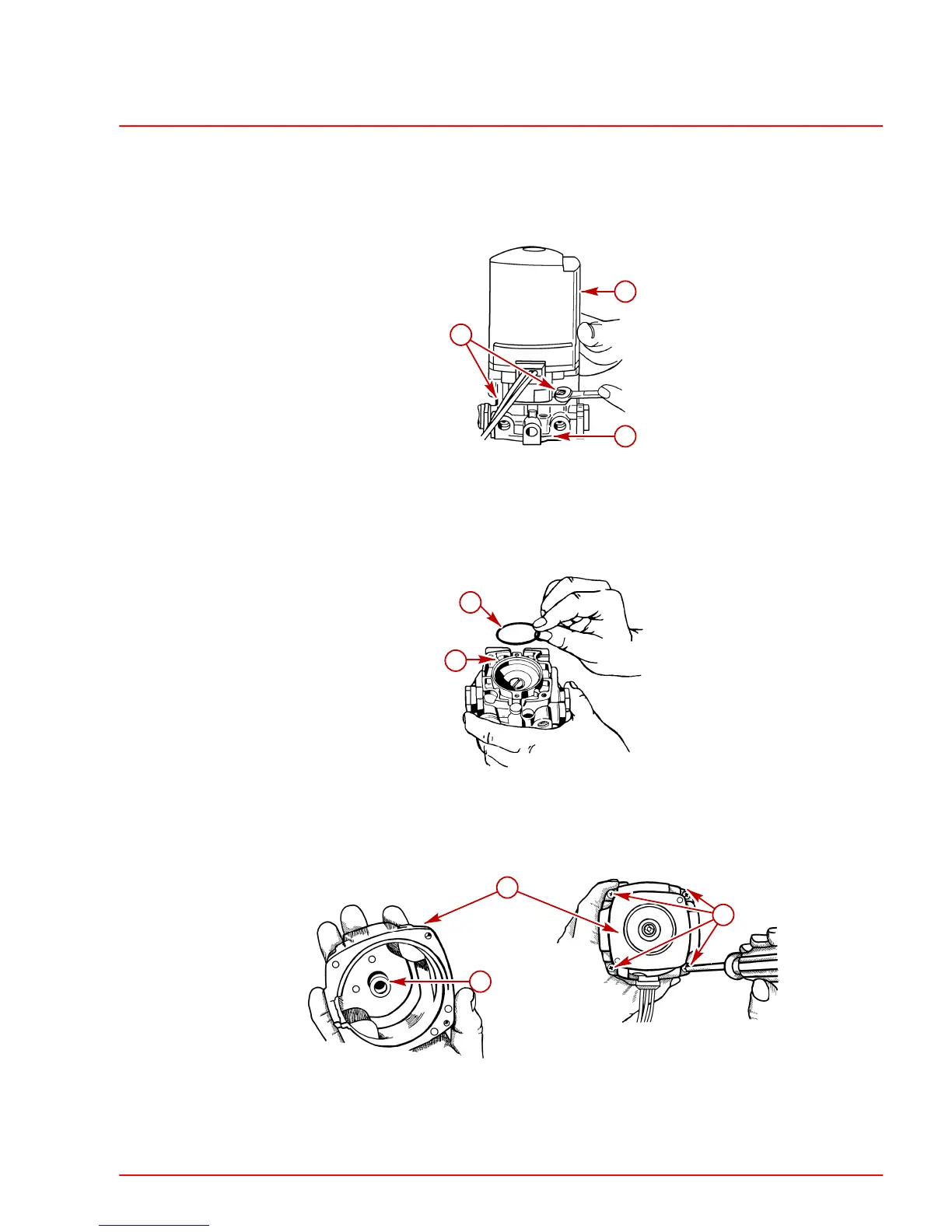

Disassembly
1. Remove the trim motor from the adapter.
70363
a
b
c
a-Trim Motor
b-Adapter
c-Screws
2. Remove the motor to adapter O-ring.
70600
b
a
a-Adapter
b-O-ring
3. Remove the motor end cover and washer from the armature shaft.
22639
22640
c
a
b
a-Cover
b-Screws (4)
c-Washer
