AUTO TRIM II SERVICE MANUAL NUMBER 28
Page 5D-10 90-863160 MAY 2000

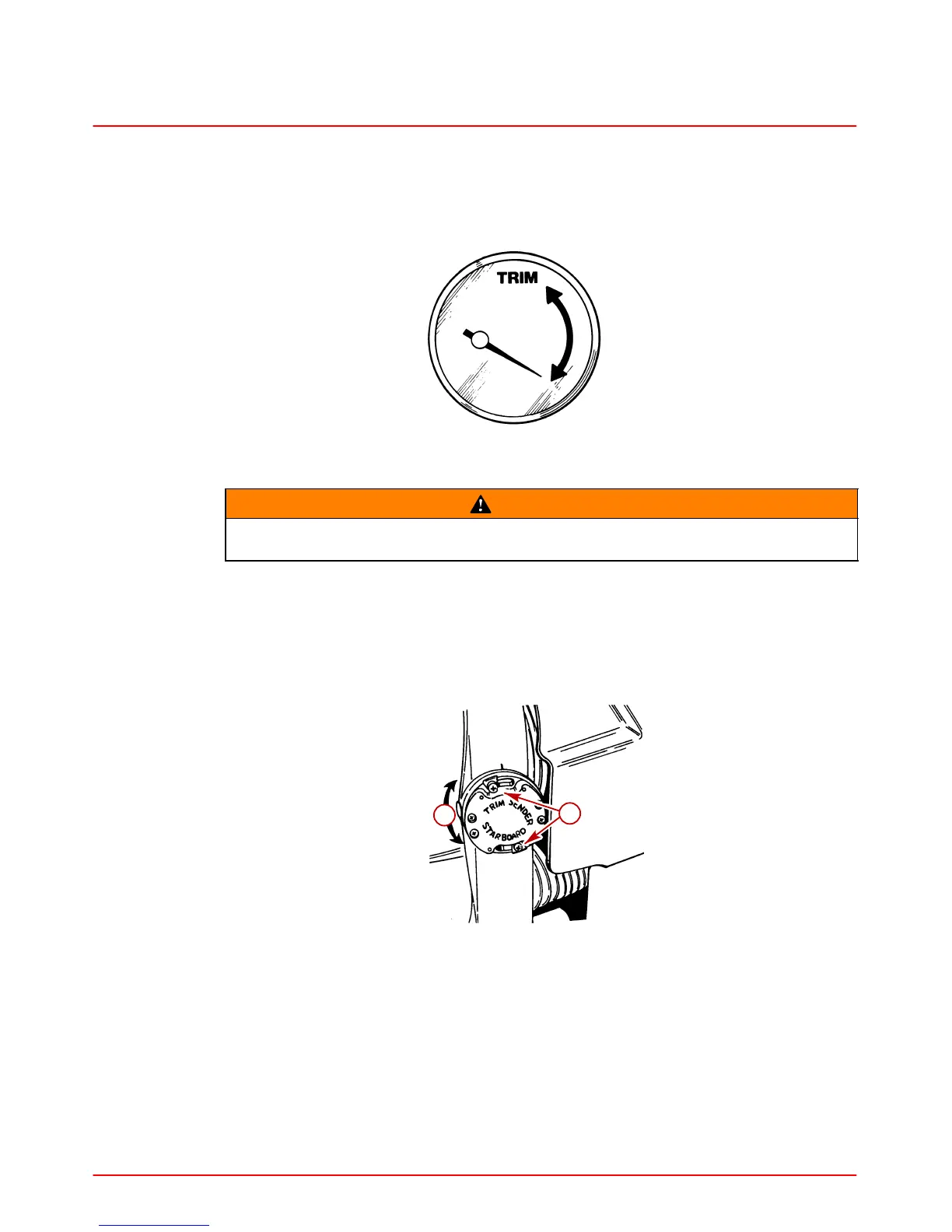

Trim Position Indicator Adjustment
With ignition key in the RUN position, check Auto Trim indicator to make sure that needle
points to bottom of the scale when sterndrive unit is IN/Down. If needle is not at bottom of
scale, perform following steps:
22175
Trim Position Indicator
WARNING
While performing this adjustment, use extreme care that engine is not accidentally
started; keep clear of the area near propeller.
1. Turn ignition key to RUN position.
2. Loosen trim position sender retaining screws.
3. Rotate sender to position indicator needle at bottom of the scale.
4. Retighten retaining screws securely.
5. Recheck trim position indicator reading and turn ignition key to OFF position.
71220
a
b
Trim Sender Switch
a-Retaining Screws
b-Adjustment
