ACCESSORIES - ALL MODELS SERVICE MANUAL NUMBER 28
Page 8A-16 90-863160 MAY 2000

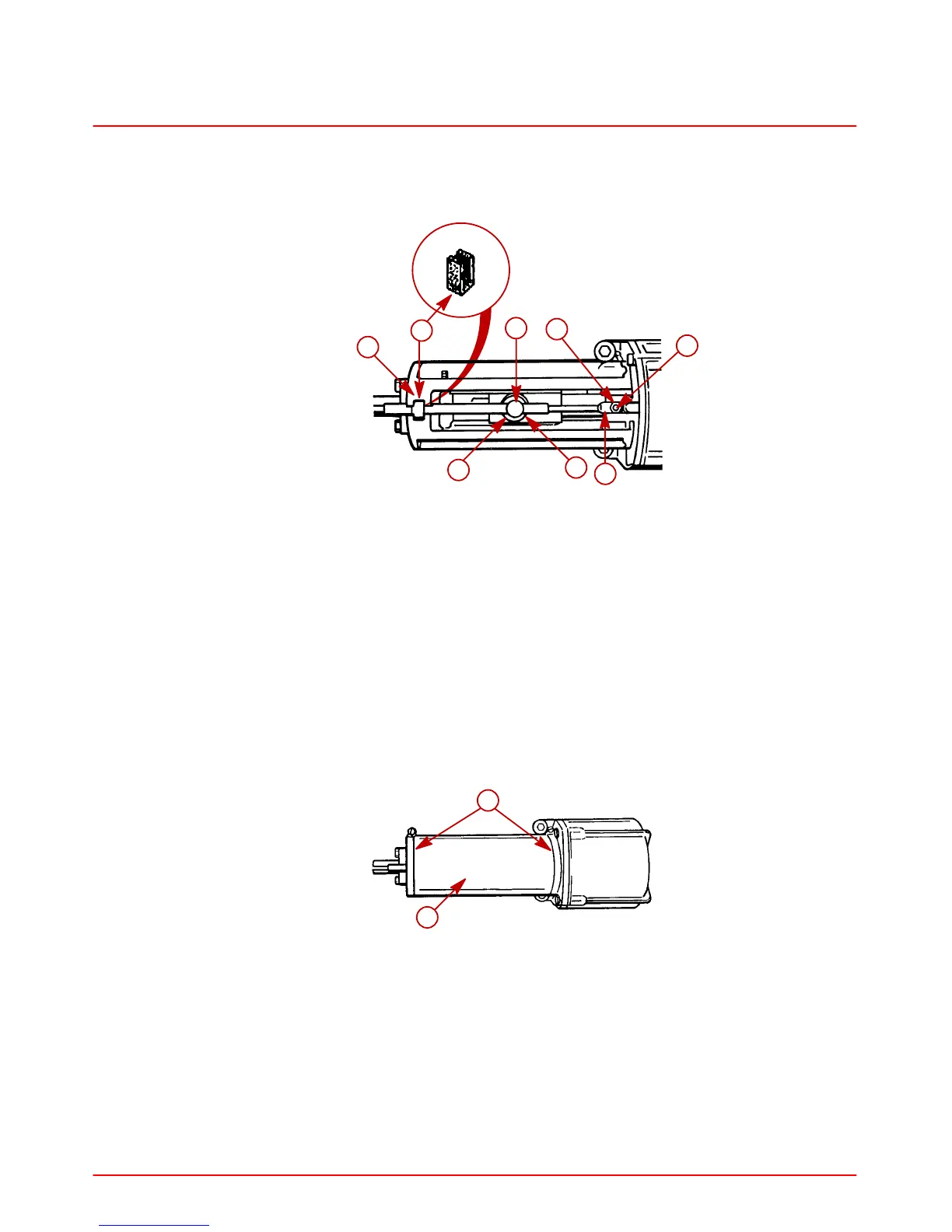

Installing Output Cable
1. Install output cable as shown.
2. Place a rectangular felt spacer in the recess of the valve guide bracket.
50176
50419
b
a
c
d
e
g
f
h
a-Output Cable Barrel
b-Cotter Pin
c-Yoke
d-Threaded Stud
e-Nut
f-Valve Guide Bracket
g-Output Cable End
h-Rectangular Felt Spacer
Attach Dust Cover
1. Place the dust cover in to position. The slot in the cover should be on bottom when the
power shift cylinder is mounted to the boat.
2. Place clamps around each end of the cover. Tighten securely.
50151
a
b
a-Dust Cover
b-Clamps
NOTE: For shift cable adjustment, refer to Section 2A of this manual.
