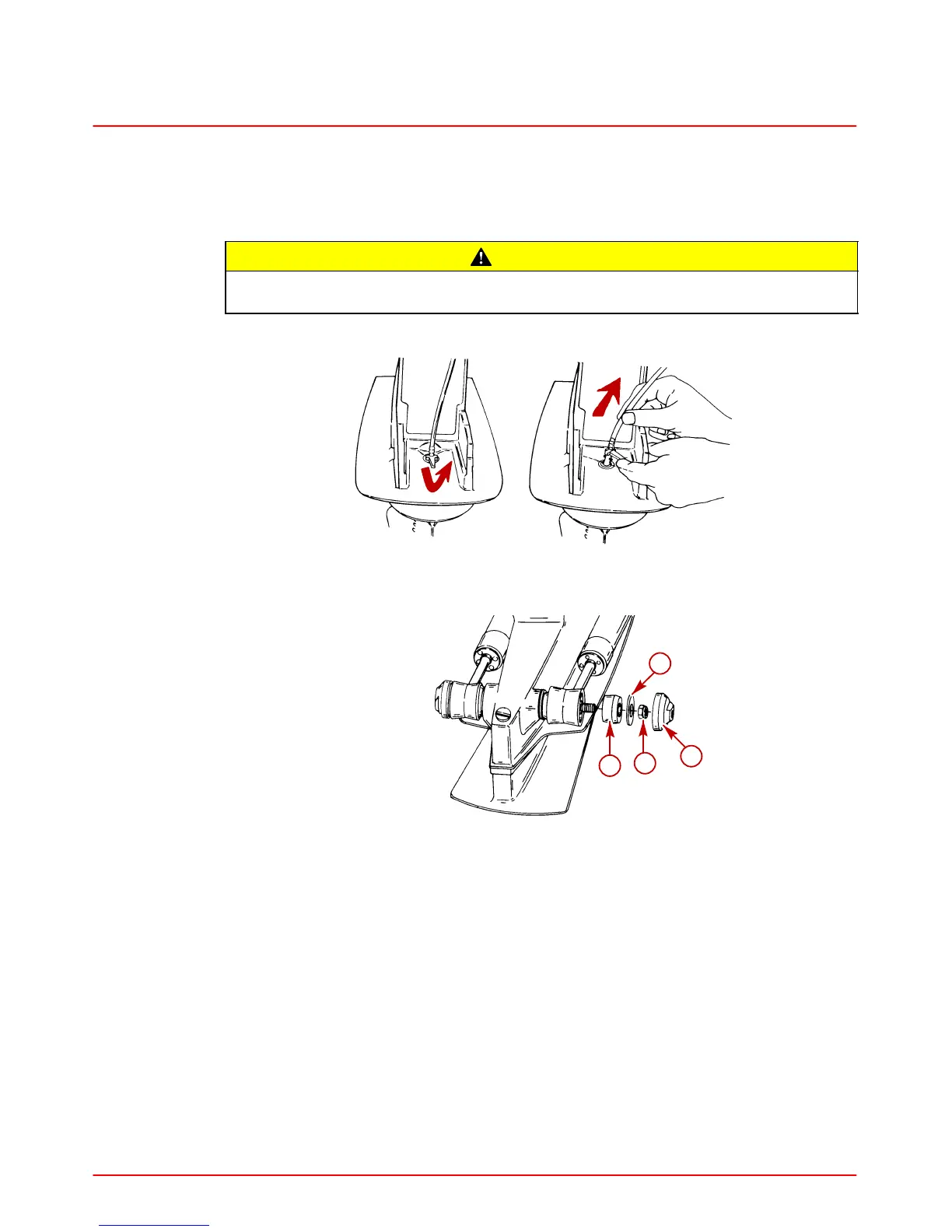

REMOVAL, INSTALLATION AND ADJUSTMENTS SERVICE MANUAL NUMBER 28
Page 2A-6 90-863160 MAY 2000
Sterndrive Unit Removal
1. Shift remote control into neutral.
2. Place the drive unit to the full UP/OUT position.
CAUTION
Avoid speedometer hose fitting damage. Disconnect the speedometer hose fitting
from the drive shaft housing before removing the sterndrive unit.
3. Disconnect the speedometer hose fitting from the drive shaft housing.
22025
4. Place the drive unit to the full DOWN/IN position and remove the power trim cylinder
from the aft end of the drive shaft housing.
22029
a
b
d
c
a-End Cap
b-Nut
c-Flat Washer
d-Bushing
