Transom Assembly Removal
1. Remove engine (Refer to appropriate engine service manual).
2. Completely disconnect the power steering assembly.
a. Disconnect the rear clevis pin from the steering lever.
b. Disconnect forward clevis pin from steering cable end.
c. Holds flats on cable guide in vertical position with suitable wrench. Loosen coupler
nut and remove steering cable.

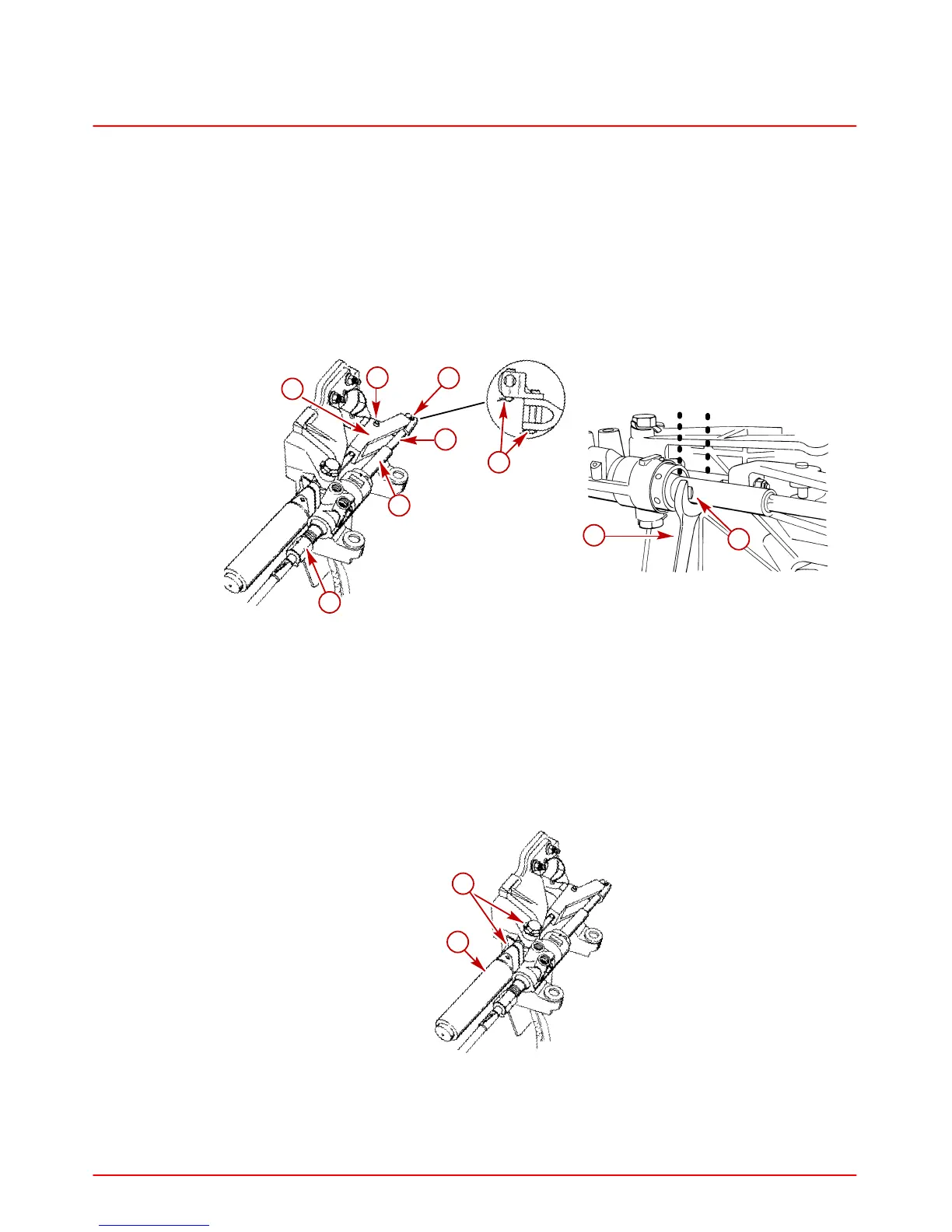

71901
a
e
b
g
d
f
c
73901
h
i
Control Valve
a-Rear Clevis Pin
b-Clevis
c-Cotter Pins
d-Steering Cable End
e-Cable Guide
f-Forward Clevis Pin
g-Coupler Nut
h-Flats
i-Suitable Wrench
d. Bend tab washer tabs down and away from pivot bolt heads.
e. Remove the pivot bolts.
71901
b
a
a-Pivot Bolts
b-Control Valve
f. Remove the power steering control valve.
