OILDYNE TRIM PUMP
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5A-33

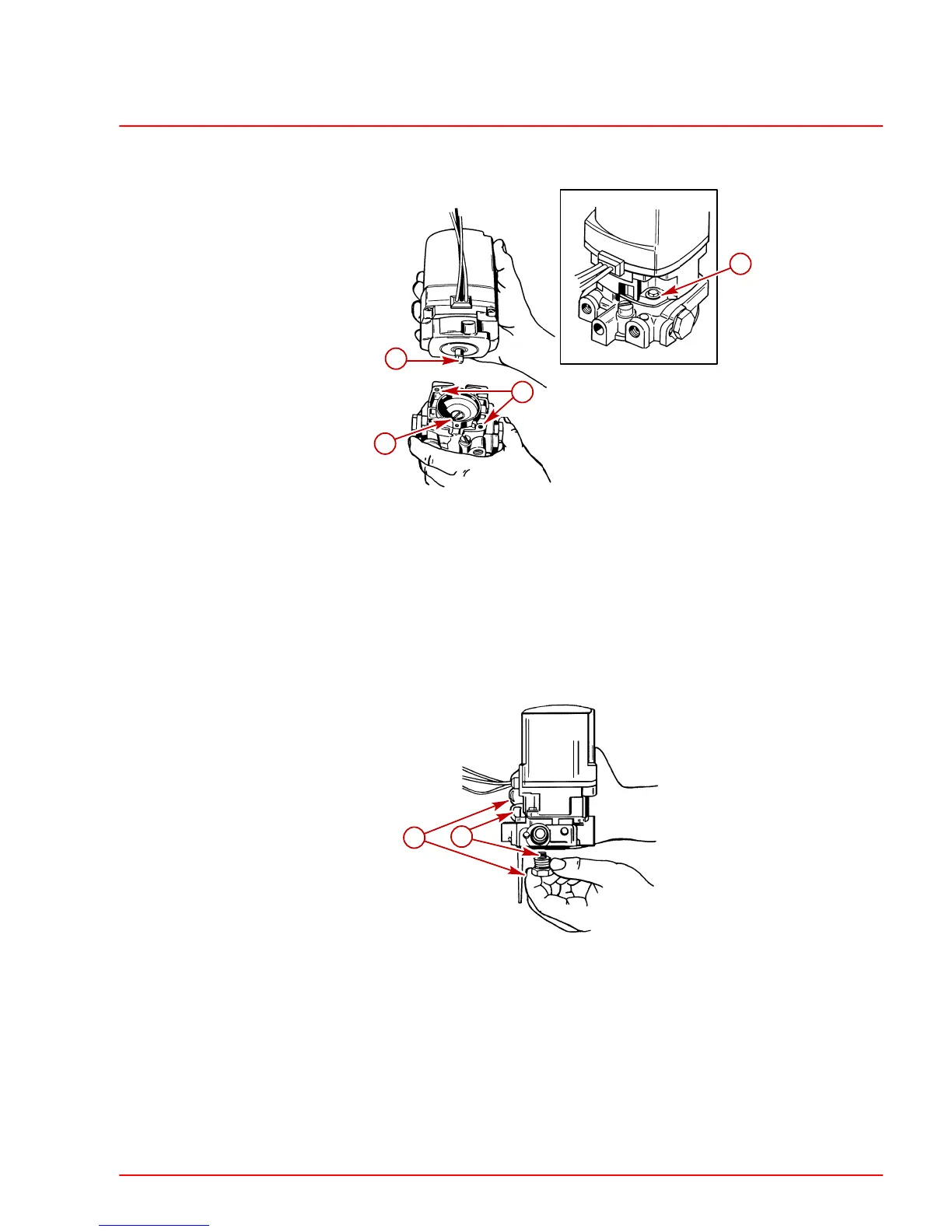

6. Align the motor shaft with the coupling and install the motor onto the adapter.
7. Position the motor as shown and secure with screws. Tighten securely.
22548
22496
c
b
c
a
a-Motor Shaft
b-Coupling
c-Screws (Opposite Corners)
Adapter Repair
INTERNAL O-RING and POPPET VALVE REPLACEMENT
1. Remove the hex plug retainers and springs (one on each side).
70871
a b
a-Hex Plug Retainers (2)
b-Springs (2)
