SERVICE PROCEDURES REQUIRING MAJOR DISASSEMBLY
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 4B-21

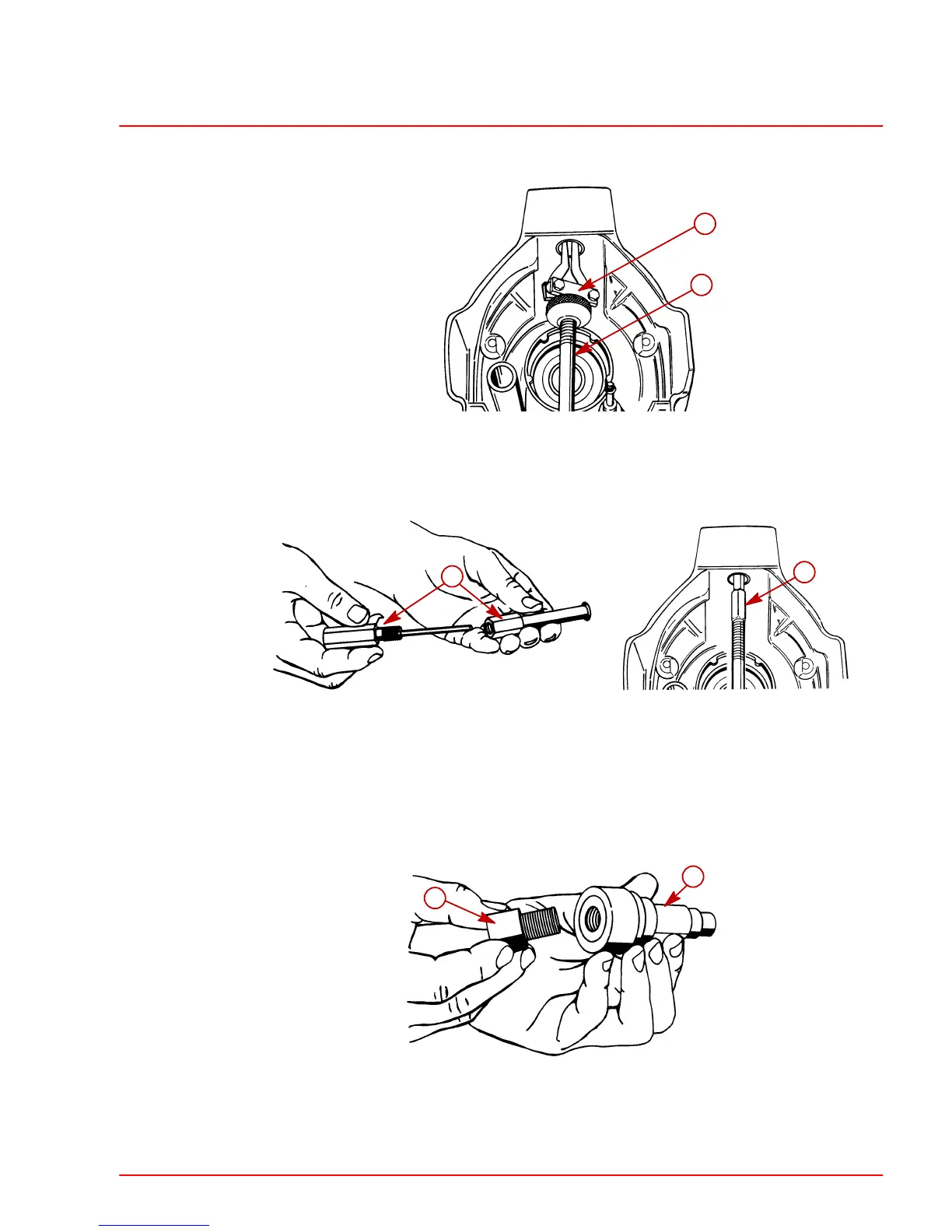

3. Remove oil seal and large bushing from gimbal housing using a two-jaw puller and slide
hammer assembly.
22452
a
b
a-Two Jaw Puller
b-Slide Hammer Assembly
4. Remove small bushing from gimbal housing using a bushing removal tool.
22438
22454
a
a
a-Bushing Removal Tool (Snap-On Tool Company P/N CG40CB)
INSTALL BUSHINGS
1. Install gimbal ring hinge pin bushings as follows:
a. Install hinge pin into bearing and seal driver.
22452
a
b
a-Hinge Pin
b-Seal Driver (P/N 91-43578A1)
