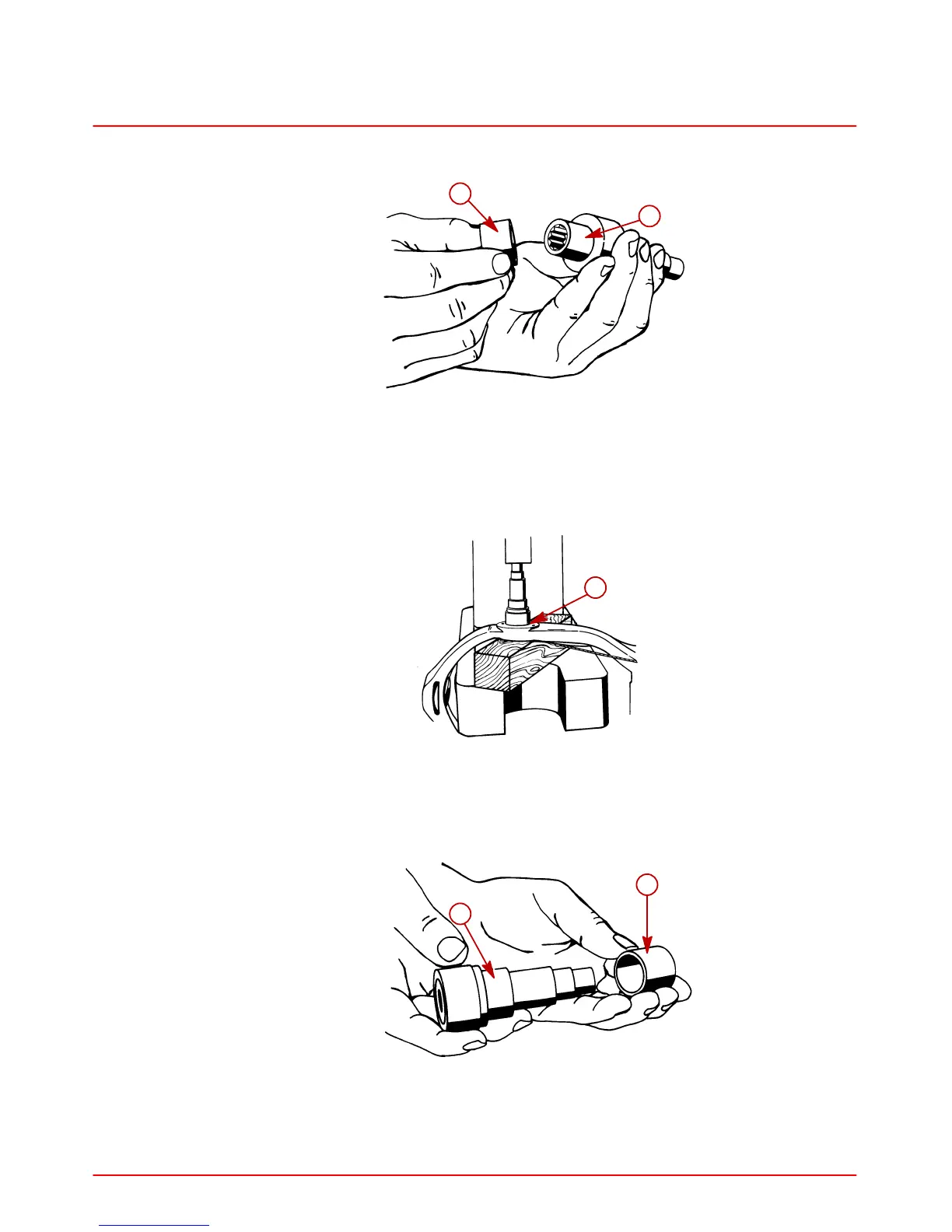

b. Apply Resiweld Sealer to outer diameter of hinge pin bushing and position bushing
on bearing and seal driver.
22440
a
b
a-Hinge Pin Bushing
b-Bearing And Seal Driver (92-65150-1)
c. Inspect bore for cleanliness and damage before installing bushing.
d. Install bushing in each side of gimbal ring by pressing in place.
22454
a
a-Gimbal Ring
2. Install gimbal ring lower swivel pin bushing as follows:
a. Apply Resiweld Sealer to outer diameter of bushing and position bushing on bearing
and seal driver.
22440
a
b
a-Outer Diameter Of Bushing
b-Bearing And Seal Driver (92-65150-1)
b. Inspect bore for cleanliness and damage before installing bushing.
