SERVICE PROCEDURES REQUIRING MAJOR DISASSEMBLY
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 4B-23

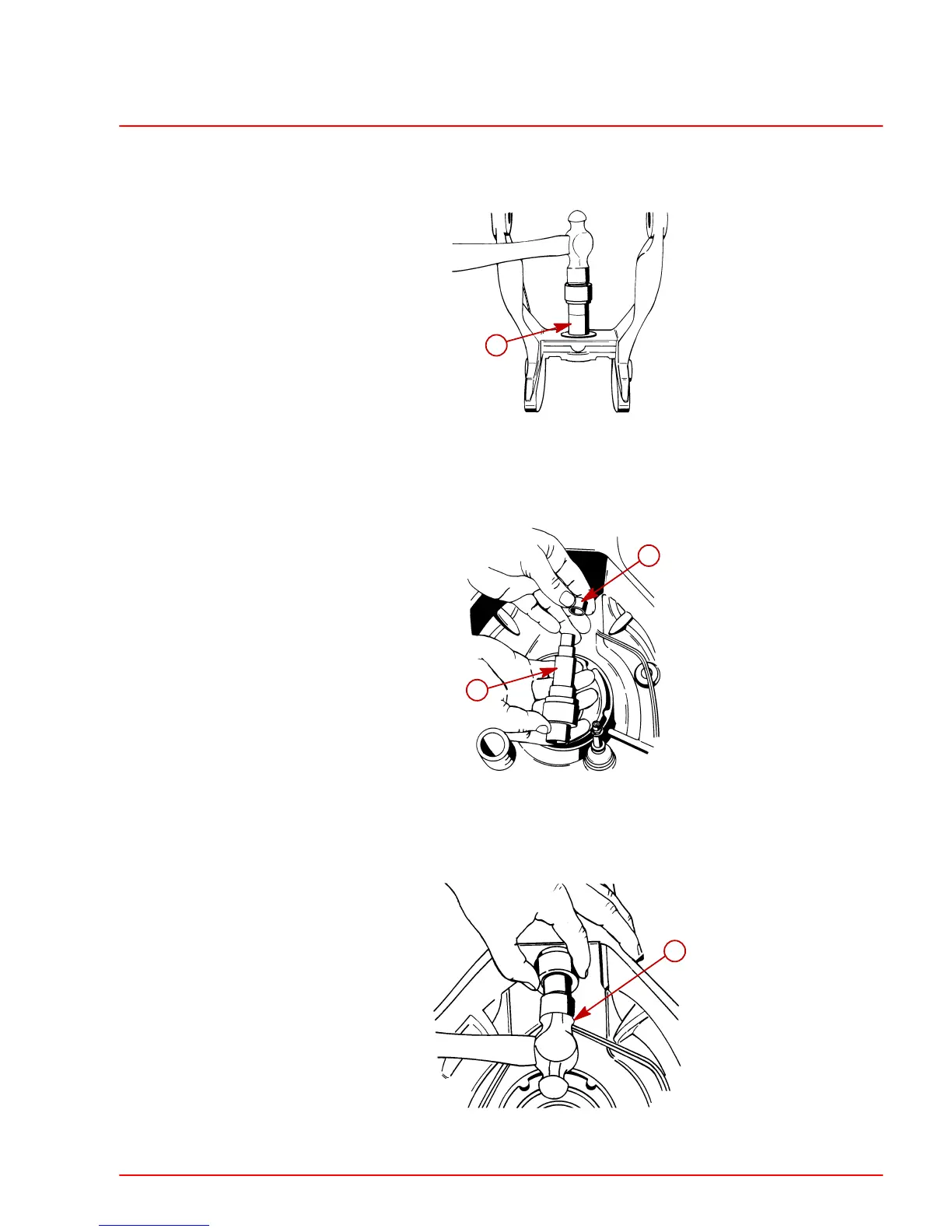

c. Install bushing in gimbal ring by pressing or tapping in place with a hammer.
NOTE: Pressing is preferred. When using a hammer, install a used hinge pin in the driver
to protect the threads.
22453
a
a-Bushing
3. Install upper swivel shaft small bushing as follows:
a. Place bushing on bearing and seal driver.
22440
a
b
a-Bushing
b-Bearing And Seal Driver
b. Install bushing by tapping it in place with a hammer.
22450
a
a-Hammer
