Mercury BRAVO Service Manual

SERVICE PROCEDURES REQUIRING MAJOR DISASSEMBLY
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 4B-39

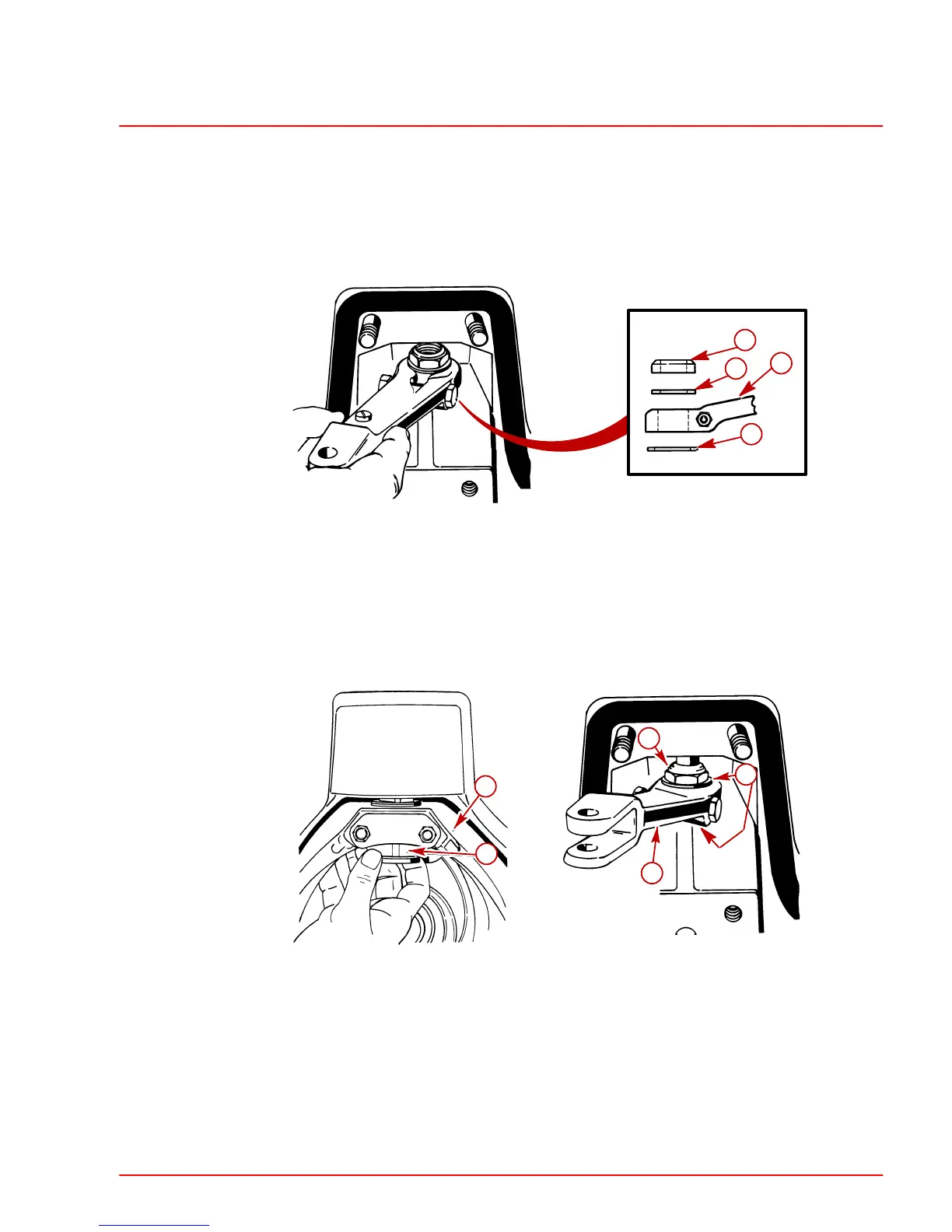

Gimbal Ring / Swivel Shaft and Steering Lever Installation
1. Place large inner diameter washer, steering lever, small inner diameter washer and
locknut into steering lever cavity in gimbal housing.
22463
22492
d
b
c
a
a-Large Inner Diameter Washer
b-Steering Lever
c-Small Inner Diameter Washer
d-Locknut
2. Install upper swivel shaft through gimbal ring and up into and through washers, steering
lever and locknut. Start locknut on upper swivel shaft threads. DO NOT tighten at this
time.
22452
22463
b
a
a
b
c
d
e
a-Upper Swivel Shaft
b-Gimbal Ring
c-Washers
d-Steering Lever
e-Locknut
