DUAL POWER TRIM SYSTEM
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5C-5
Dual Power Trim System Component Repair
Important Information
Use care when removing and installing components. Do not force or pull wiring during
replacement. Use care to prevent wiring from stretching, pinching or chafing. Coat all
terminal connections with Quicksilver Liquid Neoprene.
Relay Replacement
REMOVAL

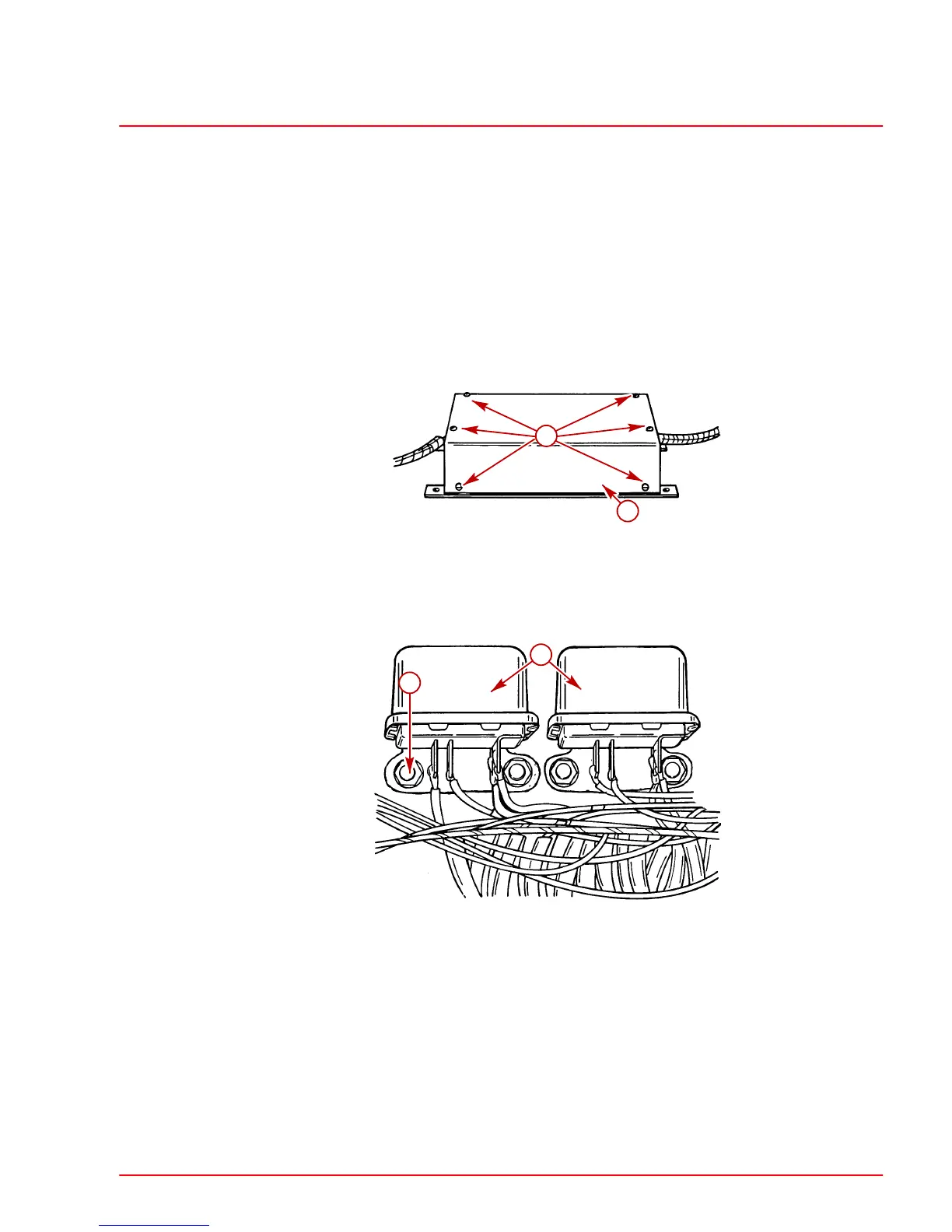

1. Remove control box cover.
22086
b
a
a-Screws
b-Cover
2. Unsolder wires from relay to be replaced.
3. Remove relay.
22086
a
b
a-Relay Assemblies (1 and 2)
b-Fasteners
