Mercury BRAVO Service Manual

TRIM CYLINDERS SERVICE MANUAL NUMBER 28
Page 5B-4 90-863160 MAY 2000

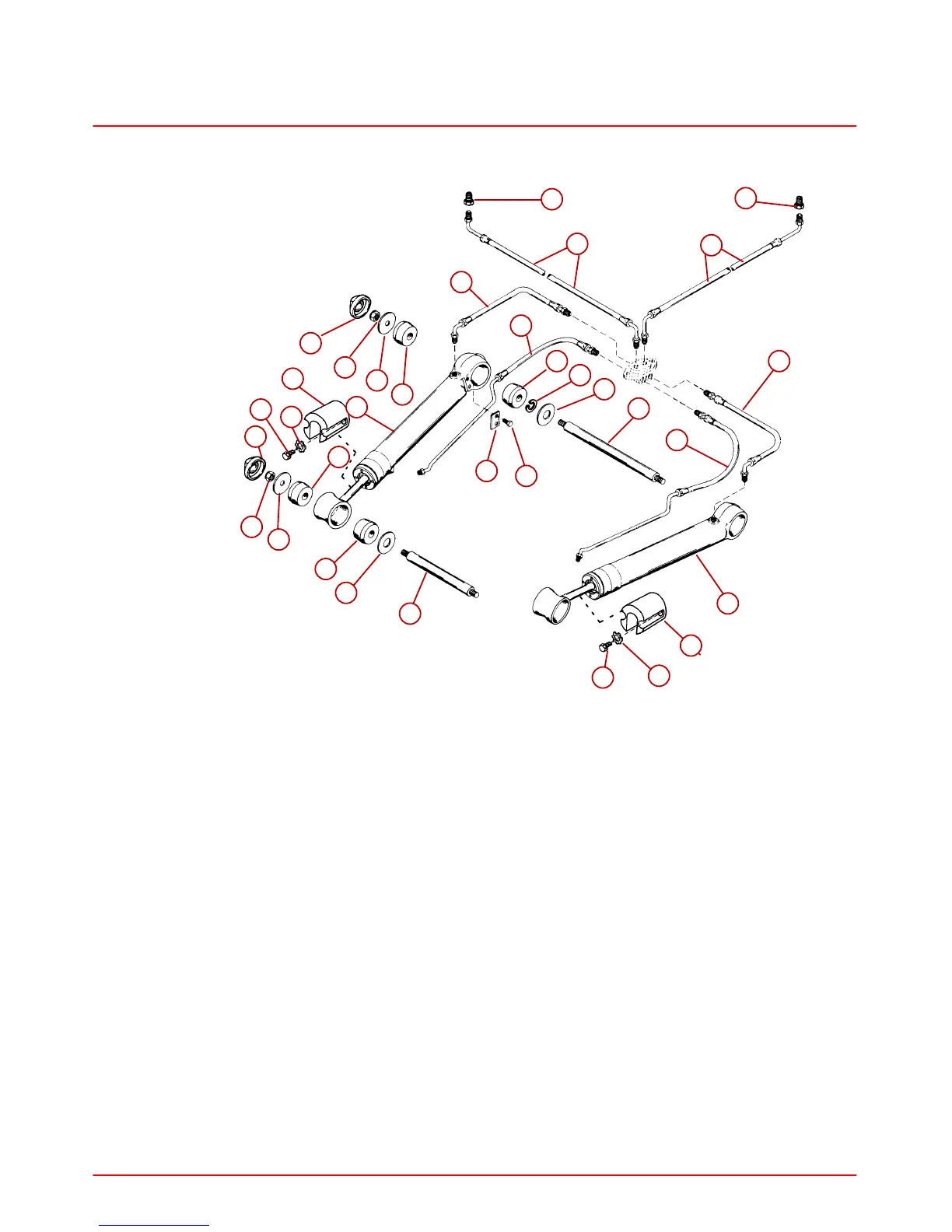

Bravo Trim System Components
73554
10
11
12
1
2
3
6
7
8
9
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
25
24
18
12
3
22
5
4
1-IN/DOWN Hose to Trim Pump (Gray)
2-UP/OUT Hose to Trim Pump (Black)
3-Hose to Trim Cylinder
4-Starboard Trim Cylinder
5-Port Trim Cylinder
6-Starboard Trim Cylinder Hose
7-Port Trim Cylinder Hose
8-Plate
9-Screw
10 - Front Pin
11 - Washer
12 - Bushing
13 - Washer
14 - Nut
15 - Cap
16 - Rear Pin
17 - Washer
18 - Bushing
19 - Washer
20 - Nut
21 - Cap
22 - Connector (Trim Pump)
23 - Retainer
24 - Screw
25 - Continuity Washer
26 - Trim Cylinder Anode
