BRAVO TWO GEAR HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3C-27

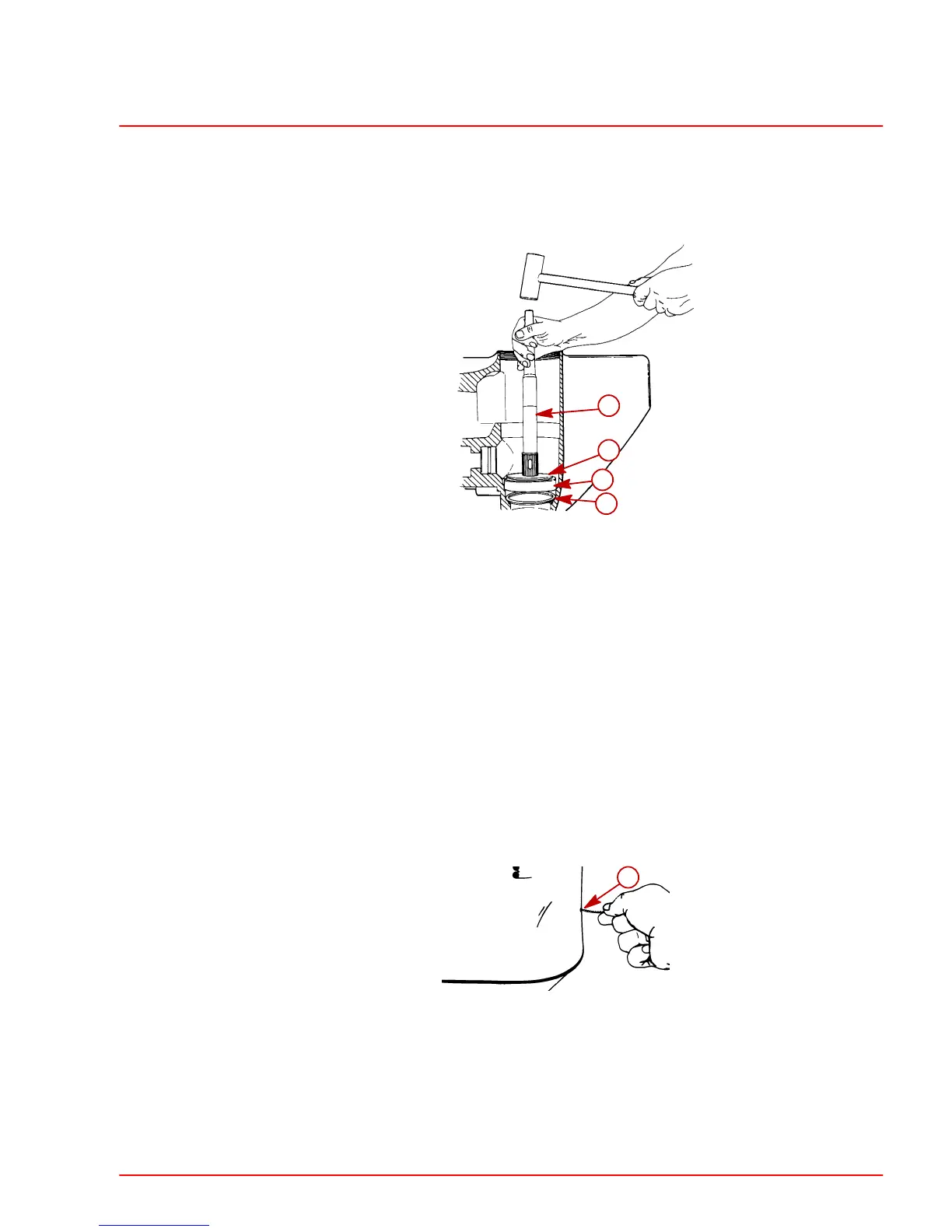

Driven Gear Bearing Cup Installation
1. Install driven gear bearing cup with original thickness shim(s) using bearing driver.
Ensure that cup is not canted. Coat cup outside diameter with gear lube.
19917
a
b
c
d
a-Driver - 91-63626
b-Old MC-I Propeller Shaft
c-Bearing Cup
d-Shim(s)
NOTE: If a MC-l propeller shaft is not available, use Driver Rod 91-37323 (from Bearing Re-
moval and Installation Kit, 91-31229A7).
Speedometer Water Passage
Pickup Inspection and Cleaning
1. Inspect pitot tube on leading edge of gear housing for obstruction. Clean opening with
a short piece of wire. If obstruction can not be removed with wire, carefully re-open tube
using a 5/64 in. (2 mm) diameter drill bit. Do not drill beyond a depth of 2-7/16 in. (62
mm).
22462
a
a-Pitot Tube
