SERVICE PROCEDURES REQUIRING MINOR DISASSEMBLY SERVICE MANUAL NUMBER 28
Page 4A-28 90-863160 MAY 2000
Installation
IMPORTANT: All replacement bellows should be P/N 18654. Do not use earlier model
bellows.
WARNING
Be sure to follow label directions when using bellows adhesive.

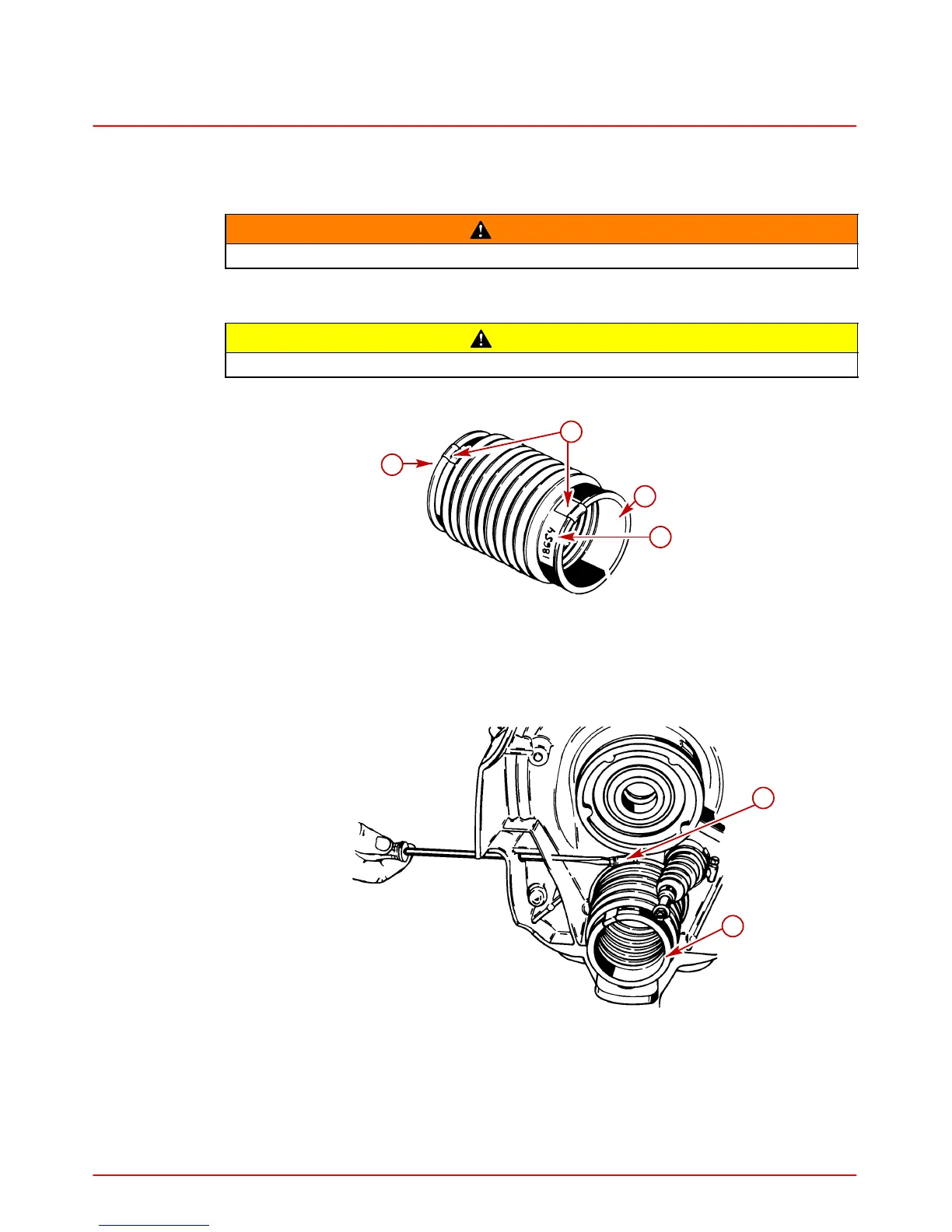

1. Apply bellows adhesive to mounting surfaces on inside of bellows. Allow adhesive to dry
until no longer tacky (approximately 10 minutes).
CAUTION
Bellows clamps may corrode if grounding clips are not installed.
2. Position grounding clips on bellows.
22079
a
b
c
a
a-Apply Bellows Adhesive
b-Grounding Clips
c-Part Number -
3. Install exhaust bellows on gimbal housing. Torque clamp to 35 lb-in. (4 Nm).
76660
b
a
a-Exhaust Bellows
b-Hose Clamp
