SERVICE PROCEDURES REQUIRING MINOR DISASSEMBLY
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 4A-29

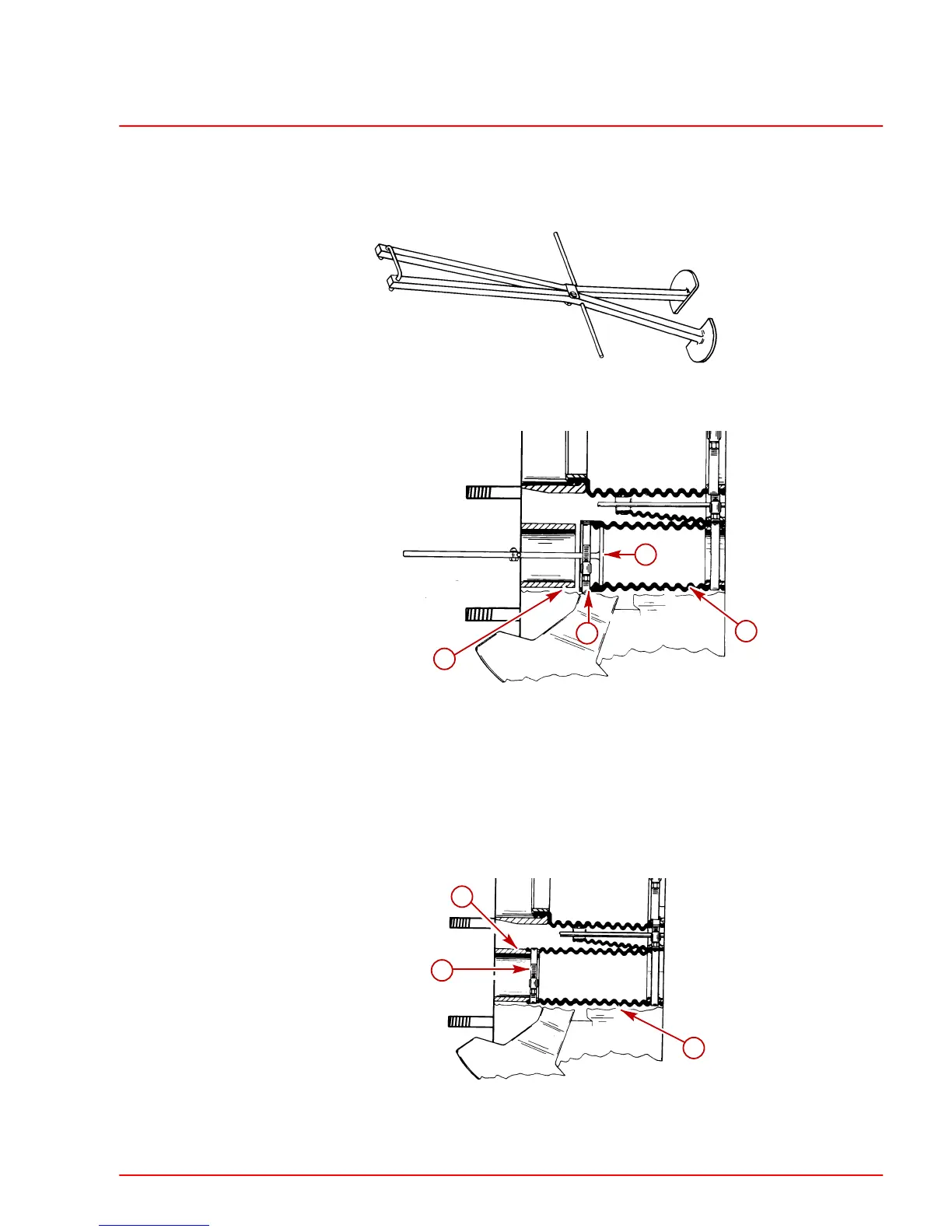

4. Install exhaust bellows on bell housing as follows:
a. Place hose clamp over bellows end.
b. Place expander tool into first bellows convolution.
22161
c. Pull tool until tool touches the flange on bell housing (hose starts to slip onto flange)
and then release tool.
22116
a
c
d
b
a-Expander Tool (91-45497A1)
b-Bell Housing Flange
c-Exhaust Bellows
d-Hose Clamp
d. Reposition tool into the third bellows convolution.
e. Pull bellows onto bell housing flange.
f. Torque hose clamp to 35 lb-in. (4 Nm).
22116
a
b
c
a-Exhaust Bellows
b-Bell Housing Flange
c-Hose Clamp
